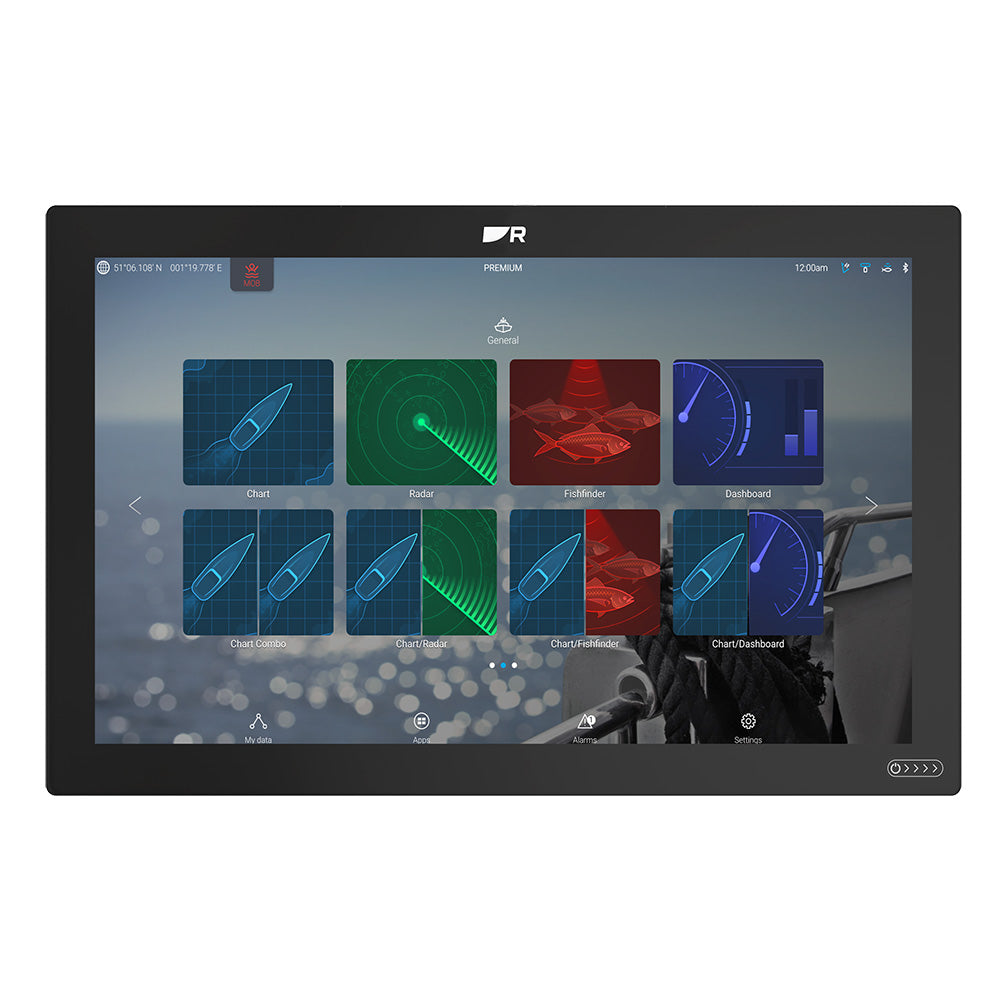

Raymarine Axiom 2 XL 22 Multifunction Display w/RCR-SD Reader, Alarm & Cable
Raymarine Axiom 2 XL 22 Multifunction Display w/RCR-SD Reader, Alarm & Cable — Product description
Imagine commanding your vessel with crystal-clear situational awareness on a massive 22-inch screen that thrives in the harshest marine environments. The Raymarine Axiom 2 XL 22 Multifunction Display elevates your boating experience, blending cutting-edge chartplotting, sonar integration, and radar overlays into one powerhouse interface. Perfect for yacht captains, offshore anglers, or performance sailors, this flagship MFD harnesses the intuitive LightHouse 4 operating system to deliver seamless navigation that feels second nature, even during high-stakes maneuvers.
Superior Visibility and Durability for Any Conditions
At the heart of the Axiom 2 XL 22 is its HydroTough nano-coating, which beads away water like magic, ensuring responsive touchscreen operation in pounding rain or heavy spray. Paired with an ultra-bright display and an ambient light sensor, it automatically tunes brightness from blinding sun to starry nights, reducing eye strain on long passages. The slim bezel design maximizes viewing real estate in compact helm stations, making it ideal for flybridges or glass helm setups where space is premium.
Blazing-Fast Performance with 6-Core Power
Powered by a robust 6-core processor, this MFD handles complex tasks effortlessly—zoom through detailed charts, overlay radar returns on live video, or run multiple sonar modes without lag. Store thousands of waypoints, custom routes, and apps on its generous 64GB internal memory. Integrated GPS/GNSS with Galileo support pins your position with pinpoint accuracy, crucial for tight channels or open-ocean crossings.
Seamless Networking and Expansion
Building a full glass bridge has never been simpler. Three Power-over-Ethernet (PoE) RayNet ports power and connect remote cameras, RMK-10 keypads, or additional displays effortlessly. Add NMEA 2000 for engine data, sails, or instruments, and expand with Quantum 2 Doppler radar for collision avoidance or RVM1600 RealVision Max sonar for fish-hunting prowess. HDMI input/output lets you mirror to TVs or crew tablets, while analog audio feeds your marine stereo for onboard vibes.
For sailors, smart features like laylines, polar tables, and race timers optimize your tactics. Pair with FLIR thermal cameras to pierce fog or darkness, or CAM300 AR200 for augmented reality overlays that superimpose AIS targets and waypoints on live video—transforming your helm into a high-tech cockpit.
Entertainment Meets Navigation
Beyond serious boating, stream apps via built-in Wi-Fi, control via the Raymarine app on your smartphone, or integrate USB touch for PC mirroring. It's not just a chartplotter; it's your vessel's entertainment hub, outputting crisp video to secondary screens for guests below deck.
Technical Specifications
| Specification | Details |
|---|---|
| Weight | 9.9 kg (21.83 lbs) |
| Dimensions (H x W x D) | 326.33 mm x 533.56 mm x 180.75 mm (12.85 in x 21.00 in x 7.12 in) |
| Power Consumption (12V DC) | 94.25 W |
| Power Consumption (24V DC) | 79.46 W |
| Operating Voltage Range | 8 V DC to 32 V DC |
| PoE Operating Voltage Range | 9.5 V DC to 32 V DC |
| Fuse Rating | 15 A |
| Nominal Supply Voltage | 12 V DC / 24 V DC |
Frequently Asked Questions
What makes the HydroTough coating on the Axiom 2 XL 22 special for boating?
The HydroTough nano-coating repels water instantly, maintaining touchscreen responsiveness and vibrant visibility in wet conditions, unlike standard screens that fog or streak.
Can I use the Axiom 2 XL 22 for sailing racing?
Yes, it shines with dedicated sailing tools like layline predictions, polar diagram overlays, customizable dashboards, and race countdown timers to give you a competitive edge.
How does the Power-over-Ethernet feature simplify my setup?
PoE ports deliver both power and data through a single cable to cameras, keypads, or extra displays, cutting wiring clutter and installation time on your vessel.
Is the Axiom 2 XL 22 compatible with older Raymarine gear?
It shares the same mounting footprint as Axiom XL models and supports RayNet Ethernet and NMEA 2000, allowing easy upgrades without helm redesigns.
What sonar options pair best with this multifunction display?
The RVM1600 RealVision Max offers CHIRP, SideVision, DownVision, and 3D sonar for comprehensive underwater views, ideal for structure scanning and fish targeting on big water.
Does it support augmented reality features?
Absolutely—add a CAM300 camera and AR200 sensor for ClearCruise, overlaying AIS vessels, routes, and chart data on real-time video for intuitive navigation.
How much storage does it have for charts and data?
64GB of internal storage holds extensive chart libraries, thousands of waypoints, custom routes, and apps, with options for SD card expansion via the included reader.
Axiom 2 XL 22 Multifunction Display with RCR-SD Reader, Alarm & Cable
Axiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.
Features
- A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
- Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
- Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
- Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
- HDMI output for connecting to remote monitors or HDTVs
- HDMI input and USB touchscreen input for remote PC integration
- Analog audio output for integrating with marine entertainment systems
- Easy to upgrade with the same mounting footprint as Axiom XL
- Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
- Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
- NMEA 2000 port
- Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
- Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage
SKU: NVN-98428
MPN: T70547
