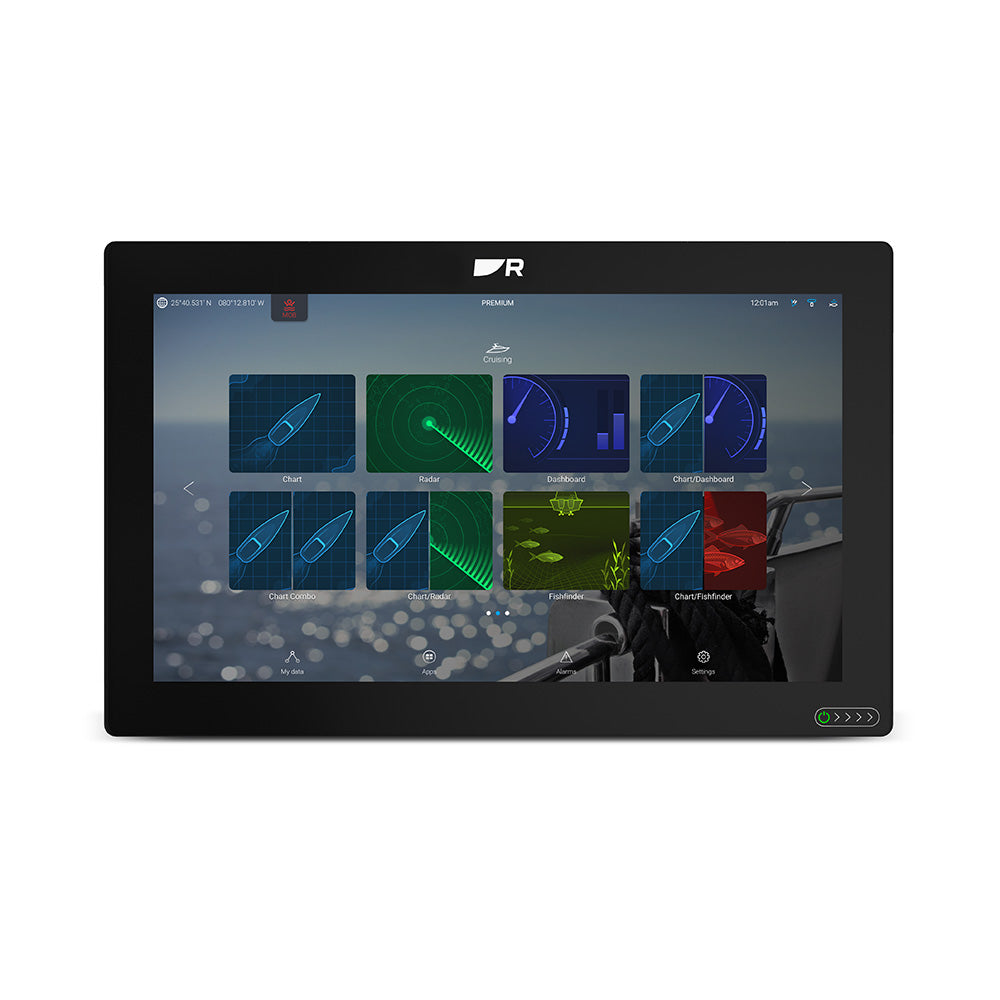

Raymarine Axiom 2 XL 16 - 15.6" Multifunction Display
Raymarine Axiom 2 XL 16 - 15.6" Multifunction Display — Product description
Transform Your Helm with the Raymarine Axiom 2 XL 16
Imagine commanding your vessel from a helm where every glance at the screen delivers crystal-clear insights, whether you're navigating treacherous waters or plotting a sunset cruise. The Raymarine Axiom 2 XL 16 stands out as a powerhouse multifunction display, blending a massive 15.6-inch screen with cutting-edge tech tailored for serious mariners. Its slim bezel design squeezes premium viewing into compact spaces, perfect for crowded consoles or expansive glass bridges.
What sets this display apart? A blazing-fast 6-core processor that handles panning, zooming, and multitasking like a dream—pair it with radar overlays, live sonar feeds, or thermal imaging without a hitch. Built for the harshest marine environments, it thrives in open cockpits or sealed stations, thanks to the innovative HydroTough nano-coating that sheds water instantly for reliable touch response even in pounding rain.
Superior Visibility and Intuitive Control
Sun glaring off the water? No problem. The integrated ambient light sensor and smart backlighting dynamically tweak brightness, ensuring readability from dawn patrols to midnight watches. Touch controls feel responsive and precise, or grab the optional RMK-10 keypad for gloved-hand operation during rough seas.
- Effortless chart navigation: Dive into LightHouse 4's vector-based charts with shaded relief bathymetry, making shallow spots pop and safe passages clear.
- Entertainment on demand: Stream apps, mirror to TVs via HDMI, or pipe in audio for those long passages.
- Storage savvy: 64GB solid-state memory swallows charts, waypoints, and apps with room to spare.
Seamless Networking for a Unified Glass Bridge
Building a full-system helm has never been simpler. Three Power-over-Ethernet (PoE) RayNet ports power cameras, keypads, and link multiple displays effortlessly. Add NMEA 2000 for engine data, autopilot control, or sensor fusion—everything syncs into one intuitive interface.
Expand with confidence: Quantum radar for Doppler-enhanced target tracking, RealVision Max sonar for 3D fish hunting with SideVision and DownVision, or FLIR thermal cams to pierce fog and night. Sailors love the layline tools, polar overlays, and race timers that turn data into winning tactics.
Rugged Build Meets Everyday Reliability
Rated IPX6/IPX7 waterproof, this unit laughs off spray, submersion, and extreme temps from -25°C to +55°C. Its lightweight 5.9kg frame installs easily with the same footprint as older Axiom XL models, minimizing downtime during upgrades.
Key Specifications
| Specification | Details |
|---|---|
| Display Size | 15.6 inches |
| Dimensions (H x W x D) | 248.22 mm x 394.9 mm x 174.95 mm (9.77" x 15.55" x 6.89") |
| Weight | 5.9 kg (13 lbs) |
| Power Input | 12 V dc / 24 V dc |
| Operating Temperature | -25°C to +55°C (-13°F to 131°F) |
| Networking | 3x PoE RayNet Ethernet, NMEA 2000, Bluetooth, Dual-band Wi-Fi |
| Video/ Audio | HDMI in/out, Analog video x2, RCA audio out |
| Internal Storage | 64 GB Solid State |
What's Included for Quick Setup
- Axiom 2 XL 16 multifunction display
- Mounting gasket tape and hardware (bars, bolts, washers, nuts, feet)
- Power/Video/Audio cable (1.5m right-angled)
- RayNet network cable (2m)
- DeviceNet to SeaTalkng adapter (1m)
- Documentation pack
Frequently Asked Questions
Can the Axiom 2 XL 16 handle multiple displays in a glass bridge setup?
Yes, with three PoE RayNet ports, it networks seamlessly with other Axiom displays, radars, and sensors for a cohesive multi-screen helm.
How does HydroTough technology improve usability?
The nano-coating repels water droplets instantly, maintaining touch sensitivity and visibility in wet conditions far better than standard screens.
Is this display compatible with Raymarine sonar modules?
Absolutely—pair it with RVX1600 for RealVision Max CHIRP sonar, delivering SideVision, DownVision, and high-res fish arches on the big screen.
Does it support sailing-specific features?
Yes, LightHouse 4 includes laylines, polar tables, sailing dashboards, and race timers to optimize your performance on the water.
What GPS capabilities does it offer?
Built-in high-accuracy GPS/GNSS with Galileo support ensures precise positioning, even in challenging areas.
Can I connect external cameras or monitors?
PoE ports power remote cameras, HDMI outputs to TVs or monitors, and inputs accept video feeds for full integration.
How easy is installation on my existing setup?
It uses the same mounting footprint as Axiom XL, with included hardware and cables for a straightforward retrofit.
Equip your boat with the Axiom 2 XL 16 and elevate every voyage—from coastal hops to offshore epics—with unmatched clarity, speed, and control.
Axiom 2 XL 16 - 15.6" Multifunction Display
Axiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.
Features
- A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
- Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
- Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
- Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
- HDMI output for connecting to remote monitors or HDTVs
- HDMI input and USB touchscreen input for remote PC integration
- Analog audio output for integrating with marine entertainment systems
- Easy to upgrade with the same mounting footprint as Axiom XL
- Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
- Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
- NMEA 2000 port
- Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
- Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage
SKU: NVN-98423
MPN: E70661
