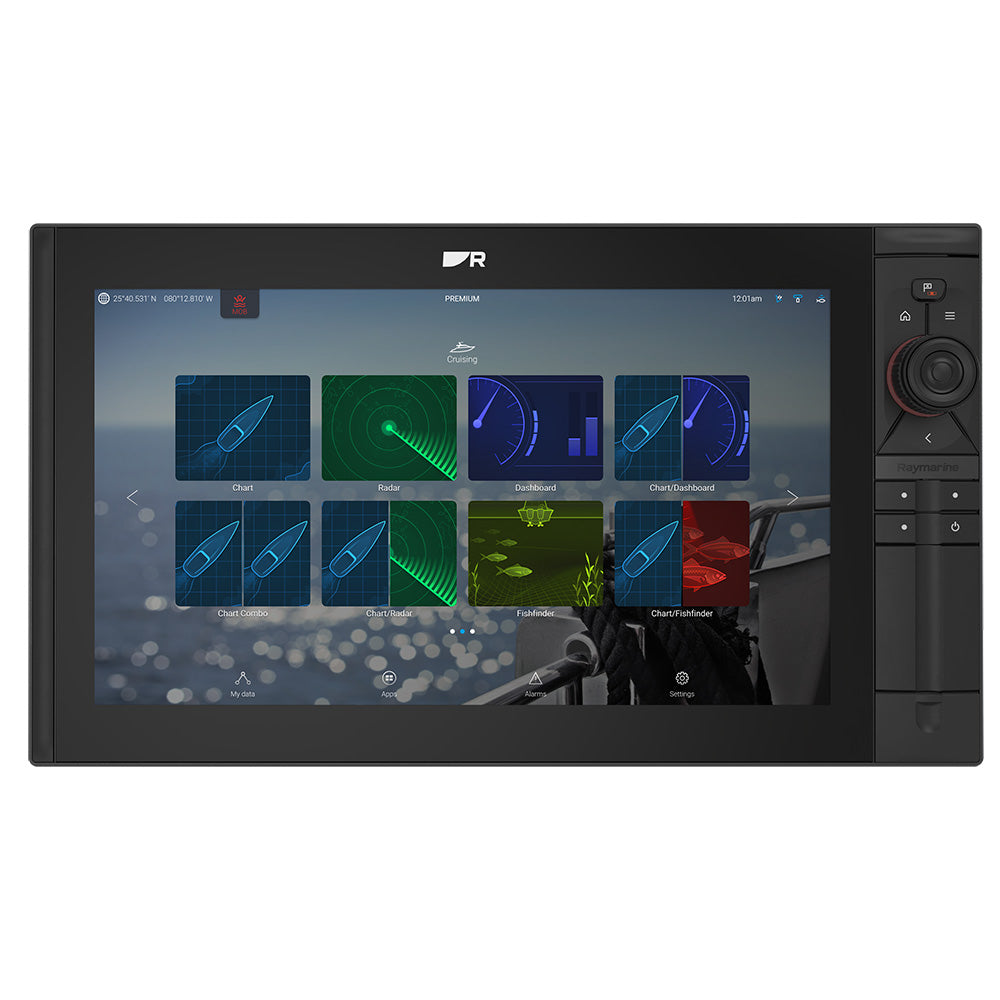

Raymarine Axiom 2 Pro 16 S 15.6" Chartplotter/Fishfinder - No Chart or Transducer
Raymarine Axiom 2 Pro 16 S 15.6" Chartplotter/Fishfinder - No Chart or Transducer — Product description
Discover Seamless Navigation with the Raymarine Axiom 2 Pro 16S
Imagine gliding across open waters with crystal-clear charts, pinpoint sonar readings, and effortless control at your fingertips. The Raymarine Axiom 2 Pro 16S delivers exactly that—a 15.6-inch powerhouse that fuses advanced chartplotting, fishfinding, and multifunction capabilities into one rugged display. Built for serious boaters who demand reliability in rough seas or calm bays, this unit thrives on the intuitive LightHouse operating system, making complex navigation feel second nature.
Whether you're chasing trophy fish, plotting coastal cruises, or racing under sail, the Axiom 2 Pro 16S stands out with its HybridTouch interface. Swipe smoothly on the touchscreen or rely on precise keypad inputs when spray flies—it's adaptable to your boating style. The HydroTough nano-coating shrugs off water and glare, ensuring your view stays sharp from dawn patrols to sunset returns.
Powerful Performance That Keeps You Ahead
Powered by a blazing-fast 6-core processor, this chartplotter loads charts, overlays radar data, and processes sonar returns in seconds. No more waiting when conditions change—you stay proactive. Network multiple Axiom displays via RayNet for a seamless helm setup, or stream apps for downtime entertainment. With HDMI output, mirror your screen to larger monitors or integrate into your boat's audio-video system for movie nights at anchor.
Superior Sonar for Deeper Insights
The built-in single-channel High CHIRP sonar excels at separating targets, revealing fish arches, and mapping bottom structure with precision. Paired with compatible CPT-S transducers (sold separately), it probes depths up to 900 feet, adapting to murky rivers or clear offshore waters. Anglers love how it cuts through clutter to highlight bait schools and wrecks, while cruisers appreciate reliable depth soundings for safe anchoring.
Sailing-Specific Tools to Optimize Every Leg
For racers and performance cruisers, the Axiom 2 Pro 16S shines with preloaded polar profiles for over 500 sailboats. Visualize dynamic laylines, monitor VMG in real-time, and use the SmartStart starting line tool to nail your race start. Adjustable timers, tactical dials, and line bias calculations give you the edge—trim sails confidently and push your boat to its limits.
Robust Build for Marine Demands
- Display Excellence: 15.6-inch Full HD IPS screen with 1200 nits brightness and wide 88-degree viewing angles—visible in direct sun or from helm angles.
- Durability: IPX6/IPX7 waterproofing, operating from -25°C to +55°C, ready for extreme weather.
- Smart Lighting: Ambient sensor auto-adjusts brightness, preserving night vision without manual tweaks.
- Storage Power: 64GB internal solid-state plus dual MicroSD slots for charts, routes, and waypoints.
Connectivity That Expands Your Horizon
Link up effortlessly: Dual RayNet Ethernet ports for quantum-speed networking, NMEA 2000 via DeviceNet, Bluetooth 4.0 and dual-band Wi-Fi for wireless app control and updates. Add external GPS via TNC, video inputs via BNC, and even RCA audio. It's future-proof, scaling from solo setups to full-bridge integrations with radar, autopilots, and cameras.
Detailed Technical Overview
| Category | Details |
|---|---|
| Dimensions (Trunnion Mount) | Height: 281.2 mm (11.1 in), Width: 482.5 mm (19 in), Depth: 233.4 mm (9.18 in) |
| Power Draw | 12V DC: 42.36W; 24V DC: 40.8W; Range: 8-32V DC |
| GPS Precision | ≤15m (95%) without SBAS; ≤5m with WAAS/EGNOS; 10Hz refresh; Multi-GNSS support |
| Sonar Depth | 0.6m to 274m (2-900 ft), CHIRP conical with CPT-S adapter |
| Networking | 2x RayNet (up to 1Gbps), NMEA2000, Wi-Fi (2.4/5GHz), Bluetooth |
Pro Tips for Installation and Use
Mount via trunnion bracket for adjustable viewing or flush for a sleek helm. Ground properly for optimal performance, and use the included cables to jumpstart your network. Customize keypads for autopilot pips or quick-access functions—perfect for single-handing. Regularly update via Wi-Fi to unlock new LightHouse features tailored for evolving marine tech.
Frequently Asked Questions
Does the Raymarine Axiom 2 Pro 16S come with a transducer?
No, this model ships without a transducer. It's designed for flexibility—pair it with your preferred CPT-S series transom, in-hull, or through-hull option using the included adapter cable.
Is this chartplotter suitable for saltwater fishing?
Absolutely. Its High CHIRP sonar penetrates saltwater effectively, spotting structure and fish in depths to 900 feet. The rugged IPX6/7 rating handles spray and submersion.
Can I network multiple Axiom displays?
Yes, connect via RayNet Ethernet ports for shared data across helm stations. Add radar, sonar, or instruments seamlessly for a full marine electronics suite.
How does HybridTouch work in rough conditions?
HybridTouch blends touchscreen precision with keypad reliability. Swap to keys instantly via interchangeable panels—ideal when waves make swiping tricky.
What charts are compatible?
Supports Navionics+, Platinum+, C-MAP 4D, and LightHouse charts via MicroSD. Load your region for detailed bathymetry, tides, and custom routes.
Is it easy for beginners to use?
The LightHouse OS is renowned for simplicity. Familiar icons, gesture controls, and contextual menus guide new users quickly to pro-level operation.
Does it support autopilot integration?
Yes, pair with Raymarine Evolution autopilots using dedicated keypads. Plot routes and steer hands-free with confidence.
Axiom 2 Pro 16 S 15.6" Chartplotter/Fishfinder - No Chart or Transducer
Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro S chartplotters feature built-in single channel High CHIRP sonar- the ideal sonar solution for reliable depth sounding and underwater exploration. Available in 9, 12, or 16-inch display sizes, Axiom Pro 2 is the perfect cruising companion.
Features:
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
- Integrated High CHIRP sonar with transom, in-hull and low-profile through-hull CPT-S series transducer options
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own Axiom 2 Pro system with multiple networked Axiom displays
- Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems
Specifications:
Connections:
- Digital Video & Audio Out Connection: HDMI Out Micro connector type D’
- External GPS Antenna Connection: TNC connector
- Accessory connection: USB Micro B (rear–charging, external storage device or RCR-SD/USB Accessory (A80440)
- Ethernet connection: RayNet (10/100/1,000 Mbits/s) x2
- External storage: MicroSD card slot x2 (front)
- Chart options: Navionics+ or Navionics Platinum or C-map 4D Software, Lighthouse North America
- NMEA 2000 connection: DeviceNet connector
- Analog video connections: BNC Analog video input (on power cable)
- Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
- Transducer connection: 25-pin RealVision type connector (requires adaptor cable)
- Audio connections: Left and Right RCA connectors via Power/Video/Audio cable
GPS:
- GNSS compatibility: GPS, Galileo, GLONASS, Beidou
Sonar:
- Channels: CHIRP conical sonar ( Uses CPT-S Transducers with adapter cable A80490)
- Depth range: 0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
Lighting:
Illumination: Axiom 2 Pro 9 1300 nits / 1300 cd/m2, Axiom 2 Pro 12 & 16 1200 nits / 1200 cd/m2
Storage:
- Internal storage: 64 GB Solid State
SKU: NVN-98304
MPN: E70657
UPC:
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom 2 Pro 16 S 15.6" Chartplotter/Fishfinder - No Chart or Transducer |
| SKU / MFR# | 98304 |
