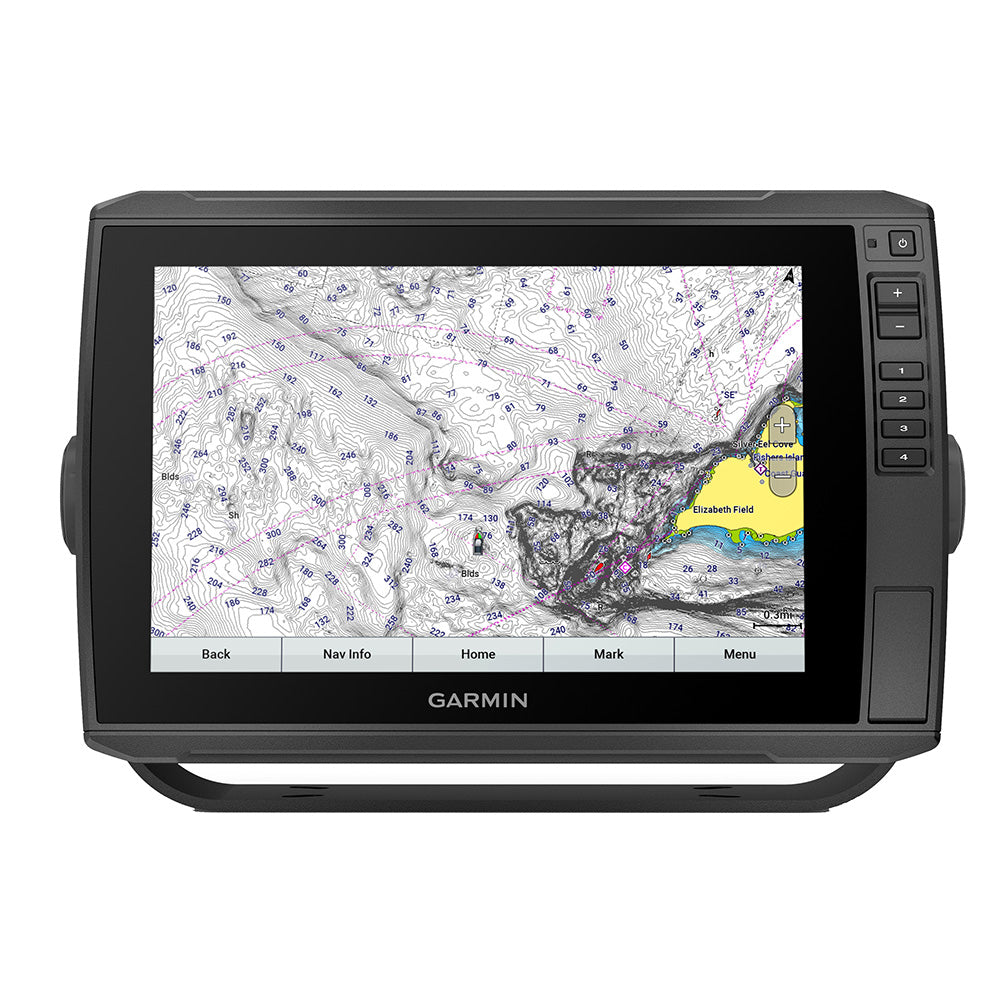

Garmin ECHOMAP™ Ultra 126sv GN+ w/o Transducer
Garmin ECHOMAP™ Ultra 126sv GN+ w/o Transducer — Product description
Unlock Peak Fishing Performance with Intuitive Controls
Imagine gliding across the water, your eyes locked on a massive 12-inch sunlight-readable touchscreen that responds effortlessly to your touch or key presses. This powerhouse combo unit delivers everything serious anglers crave, from crystal-clear fish arches to detailed underwater structures, all without missing a beat in rough conditions. Whether you're chasing trophy bass in shallow bays or deep-water species offshore, its keyed-assist design ensures reliable operation even with wet hands or gloves.
Superior Visibility in Any Light
The high-resolution display cuts through glare like a knife, rendering vivid colors and sharp details that help you spot the subtle differences between baitfish schools and your target catch. Anglers report seeing fish returns they've never noticed on smaller or lower-end units, turning average outings into limit-filling days.
Reveal Hidden Secrets Beneath the Surface
Pair it with your choice of Garmin transducers to unleash built-in UHD sonar capabilities. Traditional CHIRP sonar provides reliable bottom tracking, while Ultra High-Definition ClearVü and SideVü scanning sonars paint incredibly detailed images up to 20% farther than previous generations when using compatible GT56 transducers. High-contrast color palettes make it simple to differentiate rocks, weed beds, and suspended fish, even in murky water.
Livescope Ready for Real-Time Action
For those heart-pounding moments, it fully supports LiveScope all-seeing sonar (transducer sold separately). Watch live video-like feeds of fish reacting to your lure in real time—perfect for finesse techniques like drop-shotting or jigging. Pro tip: Adjust the gain and color settings based on water clarity for the cleanest images, and you'll gain an edge over competitors in tournaments.
Stay Connected and in Control Onboard
Networking is where this unit shines—share sonar views, user data, and charts across multiple compatible Garmin displays like other ECHOMAP Ultras or Plus series units. NMEA 2000 compatibility links it to autopilots, engines, VHF radios, AIS, and even Fusion audio for a unified helm experience. Control Force trolling motors directly from the screen, following routes or waypoints with pinpoint accuracy.
ActiveCaptain App: Your Command Center
Wi-Fi connectivity pairs seamlessly with the ActiveCaptain app on your smartphone. Access OneChart for easy map swaps, receive smart notifications without glancing away, download community data, and handle software updates effortlessly. It's like having a marine expert in your pocket, streamlining planning and keeping your gear cutting-edge.
Built Tough for Real-World Boating
Quick-disconnect bail mounting means you can stow it securely when docking or trailering—no fuss with tangled cords. The flush mount option integrates cleanly into your console, and the protective cover guards against salt spray and UV damage. Anglers love how it withstands pounding waves and long days on the water without skipping a pixel.
Versatile Connections for Expansion
- One NMEA 2000 port for engine and sensor data
- NMEA 0183 input and output for legacy gear
- Two Garmin Marine Network ports for multi-unit sharing
- Dual transducer ports: one 12-pin scanning sonar and one for LVS sonar
Everything You Need to Get Started
Your package includes the ECHOMAP Ultra 126sv unit with preloaded Navionics+, an 8-pin to 12-pin transducer adapter, power/data cable, tilt/swivel mount with quick-release cradle, flush mount kit, protective cover, mounting hardware, and full documentation. It's ready to mount and fish right away, with room to grow your setup.
Expert Tips to Maximize Your Investment
To optimize performance, calibrate your transducers in calm water and experiment with frequency settings—lower for deeper scans, higher for shallow precision. Network it with a heading sensor for accurate waypoint navigation in currents. Regular firmware updates via ActiveCaptain ensure you benefit from the latest fishfinding algorithms. Many users pair it with Panoptix for forward-facing views, creating an unbeatable multi-angle sonar suite.
Frequently Asked Questions
Does the ECHOMAP Ultra 126sv support LiveScope sonar?
Yes, it includes a dedicated port for LiveScope transducers, delivering real-time, forward-facing sonar views ideal for spotting fish reactions instantly.
What maps come preloaded on this unit?
It features Garmin Navionics+ coastal and inland charts with Auto Guidance+ technology, plus a one-year subscription for automatic updates.
Can I share data between multiple ECHOMAP units?
Absolutely—via Garmin Marine Network ports, you can share sonar, charts, and user data across compatible ECHOMAP Ultra, Plus, or UHD series displays.
Is the ActiveCaptain app required for full functionality?
No, but it enhances the experience with map access, notifications, updates, and Quickdraw Community data sharing over Wi-Fi.
How easy is it to remove and store the unit?
Very— the quick-release bail mount lets you detach it in seconds, with cords plugging directly into the cradle for tangle-free storage.
What transducer adapter is included?
An 8-pin to 12-pin sounder adapter cable is provided, making it compatible with a wide range of existing Garmin transducers.
Does it work with trolling motors?
Yes, it's compatible with Force trolling motors, allowing waypoint navigation and track following directly from the chartplotter screen.
WARNING: This product can expose you to chemicals including NICKEL (METALLIC), which is known to the State of California to cause cancer.
ECHOMAP™ Ultra 126sv GN+ without Transducer
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING
The sunlight-readable 12” touchscreen combo features preloaded coastal and inland Garmin Navionics+™ mapping.
- The keyed-assist 12” touchscreen puts fishfinding know-how at your fingertips.
- See crisp images of structure and fish in stunning detail.
- Navigate confidently with built-in Garmin Navionics+™ mapping.
- Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.
- Connect your boat to share data, sonar, and charts with your other compatible devices.
- Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.
Livescope™ Sonar Support
ECHOMAP Ultra supports a variety of Garmin transducers (sold separately), including LiveScope all-seeing live sonar.
Built-In UHD Sonar
Built-in UHD sonar provides Garmin CHIRP traditional sonar plus Ultra High-Definition ClearVü™ and SideVü™ scanning sonars when paired with a compatible UHD transducer. Transducer bundled products include the GT56 transducers with three scanning sonar frequencies and a 20% greater range for your UHD SideVü sonar.
Vivid Color Palettes
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Preloaded Charts
Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping with Auto Guidance+™ technology2. It comes with a 1-year subscription for downloadable daily updates and more.
Optional Map Upgrades
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium cartography, featuring high-resolution relief shading, satellite imagery, sonar imagery and more.
Quickdraw Contours
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3.
Network Capable
If you have multiple compatible ECHOMAP Ultra 10” or 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data, and charts — among them.
NMEA 2000® Network Compatibility
Connect to your compatible autopilots, digital switching, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
Activecaptain APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data, and more1.
Force® Trolling Motor Compatibility
Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks, and more from the screen of your chartplotter.
Take It With You
Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
In The Box:
- ECHOMAP Ultra 126sv with Garmin Navionics+
- 8-pin transducer to 12-pin sounder adapter cable
- Power/data cable
- Tilt mount with quick-release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
Connections:
- NMEA 2000 Ports: 1
- NMEA 0183 Input: 1
- NMEA 0183 (TX) Port: 1
- Garmin Marine Network Ports: 2
- 12-Pin Transducer Ports: 1 LVS Sonar, 1 12-Pin scanning sonar
1 Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP Ultra 106sv chartplotter
2 Requires app on your compatible smartphone
3 In compliance with ISO standard 13342
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
!["Warning"]("https://productimageserver.com/prop65/6pt.png")
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
SKU: NVN-98000
MPN: 010-02114-50
UPC: 753759285166
Technical specifications
| Brand | Garmin |
| Model | Garmin ECHOMAP™ Ultra 126sv GN+ w/o Transducer |
| SKU / MFR# | 98000 |
