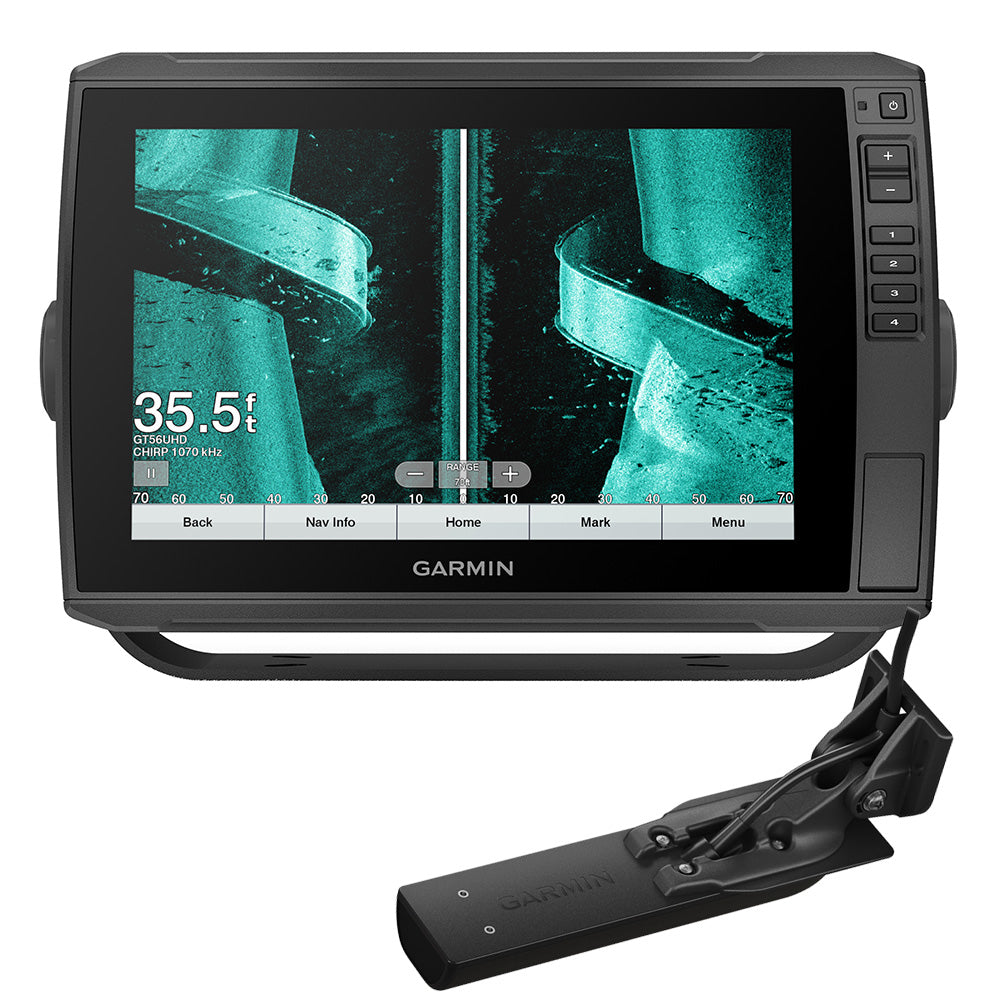

Garmin ECHOMAP™ Ultra 106sv w/GT56UHD GN+

Unlock Crystal-Clear Fishfinding and Navigation Precision

Imagine gliding across the water with a 10-inch sunlight-readable touchscreen that responds effortlessly to your commands, whether you're wearing gloves or battling choppy waves. The Garmin ECHOMAP Ultra 106sv paired with the GT56UHD transducer bundle transforms your boat into a command center for serious anglers. This isn't just a fishfinder—it's your edge in spotting structure, tracking baitfish schools, and homing in on trophy catches with unprecedented detail.

From the Ultra High-Definition scanning sonars that reveal hidden ledges and drop-offs to the preloaded Garmin Navionics+ charts covering coastlines and inland waters, every feature is designed for real-world reliability. Whether you're chasing stripers in shallow bays or navigating complex river systems, this combo delivers the tools to outfish the competition.

Superior Sonar Imaging That Puts Fish in Focus

At the heart of this unit lies built-in UHD sonar, combining Garmin's CHIRP traditional sonar with ClearVü and SideVü scanning for jaw-dropping clarity. The included GT56UHD-TM transducer ramps it up with three scanning frequencies and a 20% extended range on SideVü, letting you peer deeper and wider without losing resolution.

• Vivid Color Palettes: Separate fish from weeds and rocks instantly with high-contrast colors that pop even in bright sunlight.
• LiveScope Ready: Add compatible LiveScope transducers for real-time, all-seeing sonar views—watch fish react to your lure as it happens.
• Pro Tip: Dial in the sensitivity for your water conditions; UHD excels in murky lakes where traditional sonar falls short.

Fishermen report doubling their hookups by interpreting these detailed arches and shadows, turning guesswork into targeted drops.

Chartplotting Power with Custom Mapping Freedom

Preloaded with Garmin Navionics+ mapping, including Auto Guidance+ that plots safe paths around obstacles, you'll spend less time lost and more time fishing. Daily updates via subscription keep your charts current with the latest depth soundings and hazards.

Quickdraw Contours: Your Personal Mapping Revolution

Generate 1-foot contour maps on the fly as you explore new waters. Refine them to highlight your honey holes, then share anonymously with the Quickdraw Community through the Garmin Connect app. No more relying on outdated public charts—build your secret arsenal.

Upgrade to Vision+ for satellite overlays and sonar imagery if you crave that extra layer of intel for tournament prep.

Seamless Connectivity for a Smarter Boat

Network multiple units to share sonar feeds, waypoints, and routes across your vessel. NMEA 2000 integration pulls in engine data, autopilot control, and even Fusion audio—monitor everything from one screen.

• Wi-Fi pairs with the ActiveCaptain app for smart notifications, OneChart swaps, and community data.
• Control Force trolling motors directly: Navigate to waypoints or follow GPS tracks hands-free.
• Quick-release mount lets you detach and store securely after every trip.

Effortless Setup and Everyday Durability

Everything arrives ready to mount: tilt/swivel cradle, flush options, power cable, and protective cover. The keyed-assist touchscreen handles wet fingers or gloves, ensuring reliable operation from dawn patrols to dusk bites.

Key Components for Plug-and-Play Performance

• ECHOMAP Ultra 106sv unit with Navionics+
• GT56UHD-TM transducer
• Tilt mount with quick-release
• Flush mount kit and hardware

Versatile Connections to Expand Your System

Ports galore for growth: Dual Garmin Marine Network, NMEA 2000, 0183 I/O, and dedicated transducer inputs for scanning and LiveScope sonar. Build a full marine electronics ecosystem without compromise.

Frequently Asked Questions

Does the ECHOMAP Ultra 106sv support LiveScope sonar?

Yes, it fully supports LiveScope transducers (sold separately) for forward-facing, real-time sonar views that show fish movement around your boat.

What kind of mapping is included?

It comes preloaded with Garmin Navionics+ coastal and inland charts, featuring Auto Guidance+ and a 1-year subscription for updates.

Can I share data between multiple ECHOMAP units?

Absolutely—network compatible ECHOMAP Ultra, Plus, or UHD models to share sonar, charts, and user data across your boat.

Is the touchscreen usable in sunlight or with wet hands?

Yes, the 10-inch keyed-assist touchscreen is sunlight-readable and glove-friendly, perfect for on-water conditions.

How does Quickdraw Contours work?

It creates custom 1-foot contour maps in real-time using your sonar data, which you can save, edit, or share via the Garmin Connect app.

What transducers are compatible?

It pairs with a range of Garmin transducers, including the bundled GT56UHD-TM for UHD scanning and others for LiveScope.

Does it connect to trolling motors?

Yes, compatible with Force trolling motors for waypoint navigation and track following from the chartplotter screen.

ECHOMAP™ Ultra 106sv with GT56UHD GN+

ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

The sunlight-readable 10” touchscreen combo features preloaded coastal and inland Garmin Navionics+™ mapping, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.

• The keyed-assist 10” touchscreen puts fishfinding know-how at your fingertips.
• See crisp images of structure and fish in stunning detail.
• Navigate confidently with built-in Garmin Navionics+™ mapping.
• Manage your marine experience from nearly anywhere with the ActiveCaptain® app¹.
• Connect your boat to share data, sonar, and charts with your other compatible devices.
• Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.

Livescope™ Sonar Support

ECHOMAP Ultra supports a variety of Garmin transducers (sold separately), including LiveScope all-seeing live sonar.

Built-In UHD Sonar

Built-in UHD sonar provides Garmin CHIRP traditional sonar plus Ultra High-Definition ClearVü™ and SideVü™ scanning sonars when paired with a compatible UHD transducer. Transducer bundled products include the GT56 transducers with three scanning sonar frequencies and a 20% greater range for your UHD SideVü sonar.

Vivid Color Palettes

 High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Preloaded Charts

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping with Auto Guidance+™ technology². It comes with a 1-year subscription for downloadable daily updates and more.

 Optional Map Upgrades

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium cartography, featuring high-resolution relief shading, satellite imagery, sonar imagery, and more.

Quickdraw Contours

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app³.

Network Capable

If you have multiple compatible ECHOMAP Ultra 10” or 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data, and charts — among them.

NMEA 2000® Network Compatibility

Connect to your compatible autopilots, digital switching, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.

Activecaptain APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data, and more¹.

Force® Trolling Motor Compatibility

Take control of the most powerful and efficient trolling motor available⁴, route it to waypoints, follow tracks, and more from the screen of your chartplotter.

Take It With You

Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.

In The Box:

•  ECHOMAP Ultra 106sv with Garmin Navionics+
• GT56UHD-TM transducer
• Power/data cable
• Tilt mount with quick-release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation

Connections:

• NMEA 2000 Ports: 1
• NMEA 0183 Input: 1
• NMEA 0183 (TX) Port: 1
• Garmin Marine Network Ports: 2
• 12-Pin Transducer Ports: 1 LVS Sonar, 1 12-Pin scanning sonar

¹ Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP Ultra 106sv chartplotter

² Requires app on your compatible smartphone

³ In compliance with ISO standard 13342

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

SKU: NVN-97995
MPN: 010-02527-51
UPC: 753759285142
