Garmin ECHOMAP™ UHD 93sv Combo GPS/Fishfinder w/GT56 LiveScope™ Bundle
Garmin ECHOMAP™ UHD 93sv Combo GPS/Fishfinder w/GT56 LiveScope™ Bundle — Product description
Picture this: you're out on the water at dawn, the mist rising off the lake, and instead of guessing where the fish are hiding, you see them swimming in real-time—darting around structure, chasing baitfish right in front of your boat. That's the game-changing power of the Garmin ECHOMAP UHD 93sv paired with the GT56 LiveScope bundle. This isn't just a fishfinder; it's your edge on the water, blending crystal-clear Ultra High-Definition sonar with live scanning views that reveal what's happening below, even when you're drifting or anchored.
Anglers swear by this setup for its intuitive 9-inch sunlight-readable touchscreen, preloaded detailed lake maps, and seamless networking. Whether you're chasing walleye in deep water or bass near shallow cover, it cuts through the guesswork, letting you focus on landing trophies.
Ultra High-Definition Sonar That Paints the Perfect Picture
The included GT56 transducer delivers top-tier performance with CHIRP traditional sonar for solid bottom tracking and UHD ClearVü/SideVü scanning sonars. Scan frequencies optimized for every depth mean you spot fish-holding weed edges, drop-offs, and submerged timber with razor-sharp clarity—up to 20% more SideVü range than previous models.
Switch to vivid color palettes that make targets pop against the background, even in murky water. It's like having x-ray vision for your underwater world, helping you pinpoint the sweet spots where fish stack up.
LiveScope Plus: Real-Time Views That Move with You
The Panoptix LiveScope GLS 10 sonar black box and LVS34 transducer bundle transforms your chartplotter into a live underwater camera. Watch fish reactions to your lure in real time, up to 200 feet down or out—forward-facing for scouting ahead or downward for what's right under the hull.
- Stabilized by built-in AHRS, images stay steady in choppy water or wind.
- Adjustable mounts for trolling motor, shaft, or perspective views fit any boat setup.
- Plug-and-play Garmin Marine Network integration—no fuss wiring.
Pro tip: Forward-facing mode shines for tournament anglers, letting you see fish following your jig before they strike. Ice fishermen love the downward view for hovering over holes without spooking biters.
Mapping Mastery for Every Lake Adventure
Preloaded LakeVü g3 maps cover over 18,000 U.S. lakes with 1-foot contours and integrated Navionics data—shorelines, hazards, and hotspots rendered in stunning detail. No more fumbling with paper charts; just zoom in and go.
Quickdraw Contours lets you map uncharted spots on the fly, auto-generating 1-foot depth shades as you troll. Share your custom maps via the Quickdraw Community or keep them private for your secret honey holes.
Stay Connected and in Control
Network with other ECHOMAP UHD devices to share sonar, waypoints, and charts across your boat. NMEA 2000 and 0183 support hooks up engines, autopilots, VHF, AIS, and even FORCE trolling motors—steer to waypoints or follow routes right from the screen.
Wi-Fi pairs with the ActiveCaptain app for smart notifications, OneChart access, software updates, and community data. Manage it all from your phone dockside or mid-lake.
Tailored for Serious Anglers
Quick-release bail mount and flush options make installation a breeze on bass boats, pontoons, or kayaks. The rugged design handles rough conditions, while the bright display shines under direct sun.
From multi-species pursuits to ice fishing transitions (with compatible setups), this bundle adapts. Saltwater anglers can add BlueChart maps for coastal runs. It's built for those who fish hard and demand reliability.
Everything You Need, Right Out of the Box

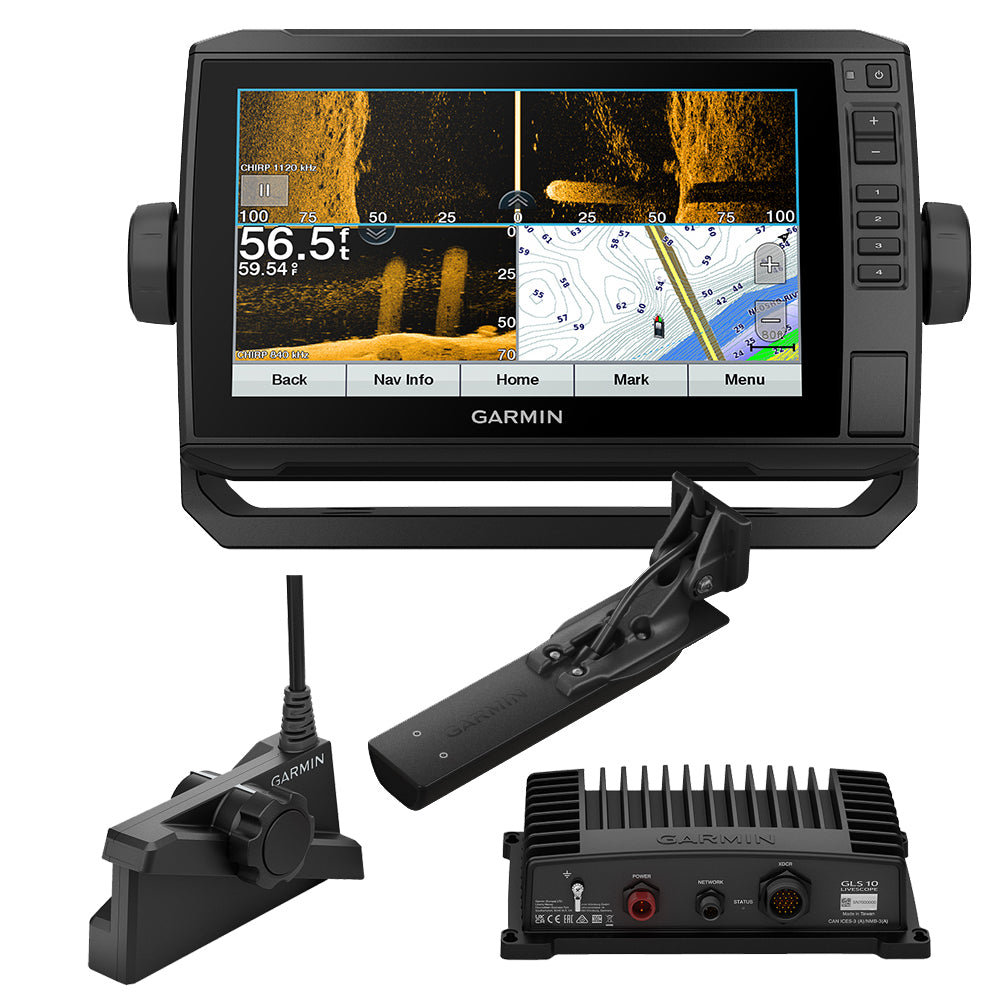

ECHOMAP UHD 93sv: Chartplotter with LakeVü g3, GT56UHD-TM transducer, power/data cable, tilt/quick-release mount, flush mount, protective cover, hardware, and docs.
LiveScope Plus: GLS 10 black box, LVS34 transducer, perspective/trolling motor/shaft mounts, power cable, Marine Network cable, adapter, and docs.
Frequently Asked Questions
What makes the LiveScope Plus different from traditional sonar?
LiveScope Plus provides real-time video-like images of fish and structure in motion, unlike static traditional sonar snapshots. See fish swimming and reacting instantly, up to 200 feet, with forward or downward views stabilized for rough water.
Does the ECHOMAP UHD 93sv support custom mapping?
Yes, Quickdraw Contours creates 1-foot contour maps on the fly as you navigate. Share them with the Quickdraw Community or other compatible Garmin devices via the ActiveCaptain app.
Is this bundle compatible with trolling motors?
Absolutely. Control FORCE trolling motors directly from the screen—route to waypoints, follow tracks, and adjust power. Multiple mounts make transducer placement easy on trolling motor setups.
What lakes are covered by the preloaded maps?
LakeVü g3 preloads over 18,000 U.S. inland lakes with 1-foot contours, shorelines, and Navionics data. Ideal for freshwater fishing across the country.
Can I network this with other Garmin devices?
Yes, one Garmin Marine Network port shares data like sonar and charts with other ECHOMAP UHD or Ultra units. NMEA 2000/0183 connects to engines, autopilots, AIS, VHF, and more.
How easy is installation for the LiveScope transducer?
Plug-and-play with Marine Network cables and included mounts (perspective, trolling motor barrel, shaft). No complex wiring needed—just mount, connect, and fish.
Does the display work well in sunlight?
The 9-inch touchscreen is sunlight-readable with high-contrast colors, ensuring clear views even on bright days. Quick-release bail or flush mounting keeps it secure.
ECHOMAP™ UHD 93sv Combo GPS/Fishfinder with GT56 LiveScope™ Bundle
LESS TIME FINDING. MORE TIME FISHING.
The sunlight-readable 9” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
ECHOMAP™ UHD 93sv
Features:
- See below and around your boat in incredible detail with the transducer bundle.
- Navigate any waters with preloaded LakeVü g3 inland maps.
- Share data and maps with select ECHOMAP devices on your network.
- Manage your marine experience from nearly anywhere1.
- Control the most powerful trolling motor available2.
- Create your own maps on the fly and tailor them to fit your needs.
Panoptix LiveScope™ System
Features:
- See highly detailed, easy-to-interpret live scanning sonar images of structure, bait, and fish swimming below and around your boat in real time, even when your boat is stationary
- Easily adjust the transducer to fit your fishing techniques; point forward to see around your boat, or point down to see directly below your boat
- See incredibly sharp real-time scanning sonar images up to 200’ down and away
- Attitude Heading Reference System (AHRS) stabilizes sonar view on chartplotter screen, even in rough conditions
- Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter
Sonar Support
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real-time.
Vivid Color Palettes
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.
Included Transducer
This chartplotter comes with a GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and a 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
Preloaded Mapping
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 18,000 lakes with up to 1’ contours.
Quickdraw Contours
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app3.
Network Capable
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, the 7” and 9” models can share information — such as sonar, user data, and charts — with them.
NMEA 2000® and NMEA 0183 Networks
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
ActiveCaptain® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data, and more1.
FORCE® Trolling Motor Compatibility
Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks, and more from the screen of your chartplotter.
Connections:
- Garmin Marine Network Ports: 1
- NMEA 2000 Compatible: Yes
- Transducer Pin Numbers: 12
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: None
- Video Output Ports: None
- Wireless Connectivity: Yes
In The Box:
ECHOMAP UHD 93sv
- ECHOMAP UHD 93sv with LakeVü g3 for the U.S.
- GT56UHD-TM transducer
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
In The Box:
LiveScope™ Plus System
- LiveScope GLS 10 sonar black box
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
1 Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP UHD 93sv
2 In compliance with ISO standard 13342
3 Requires app on your compatible smartphone
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
SKU: NVN-95992
MPN: 010-02523-01/LIVEPLUS
UPC:
Technical specifications
| Brand | Garmin |
| Model | Garmin ECHOMAP™ UHD 93sv Combo GPS/Fishfinder w/GT56 LiveScope™ Bundle |
| SKU / MFR# | 95992 |
