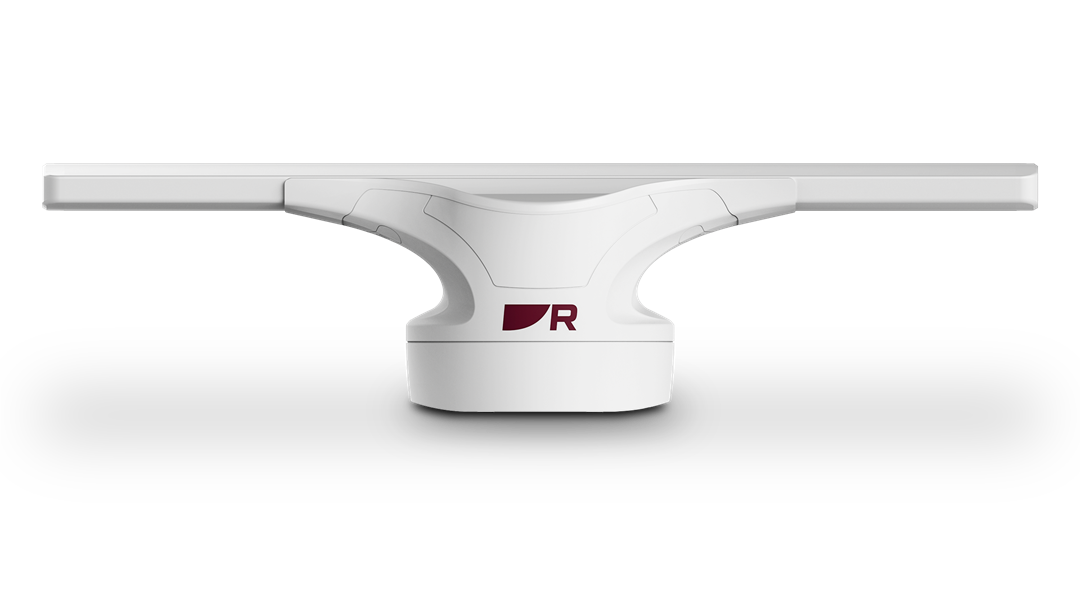

Raymarine Cyclone Pro Radar w/4' Open Array & 15M Cables
Raymarine Cyclone Pro Radar w/4' Open Array & 15M Cables — Product description
Imagine navigating through thick fog, spotting distant vessels before they become a threat, or zeroing in on schools of fish by tracking the birds diving above them. That's the everyday reality with the Raymarine Cyclone Pro Radar featuring the 4-foot open array. This solid-state powerhouse transforms how boaters perceive their surroundings, blending cutting-edge CHIRP technology with pulse compression for razor-sharp target separation that traditional radars simply can't match.
Engineered for the Toughest Conditions
Crafted with an aircraft-wing-inspired design, this radar stands up to 100-knot winds without flinching, meeting rigorous commercial-grade standards. Its compact 13.1-inch low-profile pedestal slips easily onto most vessels, offering flexible mounting without compromising your boat's sleek lines. Hidden cable management keeps the deck clutter-free, making installation smoother and maintenance a breeze.
At the heart is a 110-watt solid-state transmitter, packing the punch of a much larger 12kW magnetron system. You'll detect targets up to 96 nautical miles away, with beam sharpening delivering exceptional long-range clarity. Whether you're crossing open oceans or weaving through congested harbors, the variable rotation speeds—from 12 to a blistering 60 RPM—provide real-time 360-degree sweeps for unmatched situational awareness.
Smart Technologies That Keep You Ahead
- RangeFusion Technology: Seamlessly merges short- and long-pulse data into one crystal-clear image, spotting close-in obstacles like buoys alongside far-off ships without switching modes.
- Cyclone Bird Mode: Tuned for anglers, this enhanced CHIRP mode pinpoints seabirds to reveal hidden fish below—perfect for turning a slow day into a bounty.
- ARPA Target Tracking: Automatically locks onto and monitors up to 50 targets, using proven tech trusted by coast guards worldwide, so you focus on steering, not scanning.
- Doppler Tracking: Color-codes threats in red and safe passes in green, simplifying split-second decisions in traffic.
The narrow 1.99-degree horizontal beam width from the 4-foot array excels at discriminating small targets from clutter, even in rain or sea spray. IPX6 waterproofing and a wide -25°C to +55°C operating range ensure reliability from arctic outings to tropical runs.
Versatile for Every Boater
Fishermen love the bird-finding prowess and superior resolution for marking reefs or wrecks. Cruisers appreciate the instant-on capability—no lengthy warm-ups—and Doppler safety nets for night passages. Commercial operators rely on its wind tolerance and pro-grade tracking for demanding routes. Paired with modern multifunction displays, it overlays seamlessly with charts, sonar, and cameras for a complete picture.
Power-hungry? Not here. Efficient draw at 95 watts typical (standby just 28 watts) suits 12V or 24V systems, complete with voltage converter for stable performance.
What's Included for Quick Setup
Everything arrives ready to mount: the Pro pedestal, 4-foot antenna unit, 15m power and data cables, voltage converter module (VCM100), mounting hardware like M10 studs, nuts, washers, gaskets, and templates. Alignment tools and cable clamps ensure a professional fit without extras.
Boot time under 40 seconds and transmit from standby in less than 5 mean you're radar-ready when it counts. Horizontal polarization cuts interference, while user-selectable frequencies (9370, 9400, 9430 MHz) optimize for your waters.
Real-World Tips for Peak Performance
Position the array high and forward for best horizon scan, away from engine heat or metal obstructions. Regularly wipe the dome to fend off salt buildup, and calibrate targets in open water for accuracy. In bird mode, dial sensitivity to filter waves while highlighting flocks. For heavy weather, crank to 60 RPM for frequent updates without overload.
Frequently Asked Questions
What makes the Cyclone Pro's solid-state design better than older magnetron radars?
Solid-state tech offers instant startup, no high-voltage hazards, and consistent power for superior CHIRP pulse compression—delivering finer detail and reliability without the maintenance fuss of magnetrons.
How does Cyclone Bird Mode help with fishing?
It amplifies weak echoes from diving seabirds using CHIRP, letting you spot fish-attracting activity from afar, even in choppy seas where visual spotting fails.
Can this radar handle high winds and rough seas?
Yes, with a 100-knot wind rating and rugged build meeting IEC 62388 standards, it performs flawlessly in storms, maintaining clear images despite motion or spray.
What's the advantage of the 4-foot open array over smaller sizes?
The larger array narrows the beam to 1.99 degrees horizontally, providing better target separation and detection range—ideal for spotting small boats or buoys at distance.
Does it integrate with other Raymarine displays?
Perfectly via RayNet networking, overlaying radar on charts, sonar, and video. Ensure your display runs compatible LightHouse software for full features like ARPA and RangeFusion.
How many targets can it track automatically?
Up to 50 with advanced ARPA, displaying vectors, speed, and closest point of approach—proven tech from professional maritime use.
Is it suitable for smaller boats?
Its low-profile pedestal and flexible install make it viable on mid-to-large vessels, but check arch space—the 52-inch array length suits boats 30 feet and up best.
With a powerful 110 Watt solid-state transmitter, Cyclone Pro delivers superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology. The increased power output of Cyclone Pro is equivalent to a 12 Kilo Watt magnetron radar and gives Cyclone Pro a range of up to 96 Nautical Miles. Cyclone Pro model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion ™ technology and high-speed 60 RPM imaging.
Raymarine T70495 Attributes
- Radar Type: Open Array
- Size: 4 Feet Array
- Range: 96 Nautical Miles
- Rotation Speed: 12 To 60 RPM
- Power Output: 110 Watt
- Dimension: 15.27 Inch Length x 14.17 Inch Width x 13.18 Inch Height
- Input Voltage: 12 Volt To 24 Volt
- Beam Width: 1.99 Degree Horizontal/ 25 Degree Vertical
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: Radar Pedestal/ Voltage Convertor/ Power Cable/ Data Cable/ Mounting Kit
Raymarine T70495 Features & Benefits
- Aircraft Wing Inspired: Engineered For Extremes With Best-In-Class 100-Knot Wind Rating
- Cyclone's Lower Profile Allows Greater Flexibility Of Boat Architecture And More Adaptable Installation Options
- Cyclone Automatically Tracks Up To 50 Targets Using The Same Advanced Arpa Technology Trusted By The United States Coast Guard
- RangeFusion ™ Technology Combines Short And Long Pulses Into The Single High Clarity Radar Image, Delivering Exceptional Short-Range And Long-Range Targets Simultaneously
- Fast 60 RPM Rotational Speed Delivers 360 Degrees Of Awareness And Accurate Target Tracks In Real-Time
- Doppler Target Tracking Simplifies The Interpretation Of Dangerous And Safe Targets For Added Safety
- Innovative Pedestal Design Conceals Cable Connections For A Cleaner Installation
- Cyclone's 4 Feet Option Delivers Superior Target Separation And Range Detections
- Limited 2 Year Warranty
Raymarine T70495 Installation Instructions
Raymarine T70495 Warranties
Raymarine T70495 Technical Bulletins
- Cyclone Cyclone Pro Installation instructions 87402 (Rev 5) (EN).pdf
- 36in Open Array E70628 E70620 E70621 E70622 2D PDF.pdf
- 36in Open Array E70628 E70620 E70621 E70622 2D PDF.pdf
Cyclone Pro Radar 110W with 4' Open Array & 15M Cables
SOLID-STATE OPEN ARRAY RADAR
The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open-array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.
CUTTING EDGE DESIGN
- Aircraft-wing-inspired design is engineered for extremes with a best-in-class 100-knot wind rating and designed to meet the commercial-grade IEC 62388 standard for shipborne radar
- At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
- Innovative pedestal design conceals cable connections for a cleaner installation
THE ULTIMATE SITUATIONAL AWARENESS
- Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
- Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety
- Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
- RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
FISHING INTELLIGENCE
- Performance tuned for locating sea birds
- Enhanced Cyclone Bird Mode using CHIRP pulse compression technology
4' OPEN ARRAY SIZE
- 4' option delivers superior target separation and range detections
In the Pedestal Box E70621:
- Pro Pedestal
- M10 Stud x4
- M10 Nut x8
- M10 Spring Washer x4
- M10 Plain washer x4
- Mounting gasket
- Mounting template
- Radar data cable 15m
- Power cable 15m
- VCM100
- Cable clamp
- VCM100 mounting screw x2
- Cable clamp mounting screw x3
4' Antenna Box E70629:
- Antenna
- Threaded alignment guide
- Washer
- Spring washer
- Nut
All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility. LightHouse Hvar 3.16 will be available in early November 2021.
SKU: NVN-91824
MPN: T70495
UPC: 723193836651
