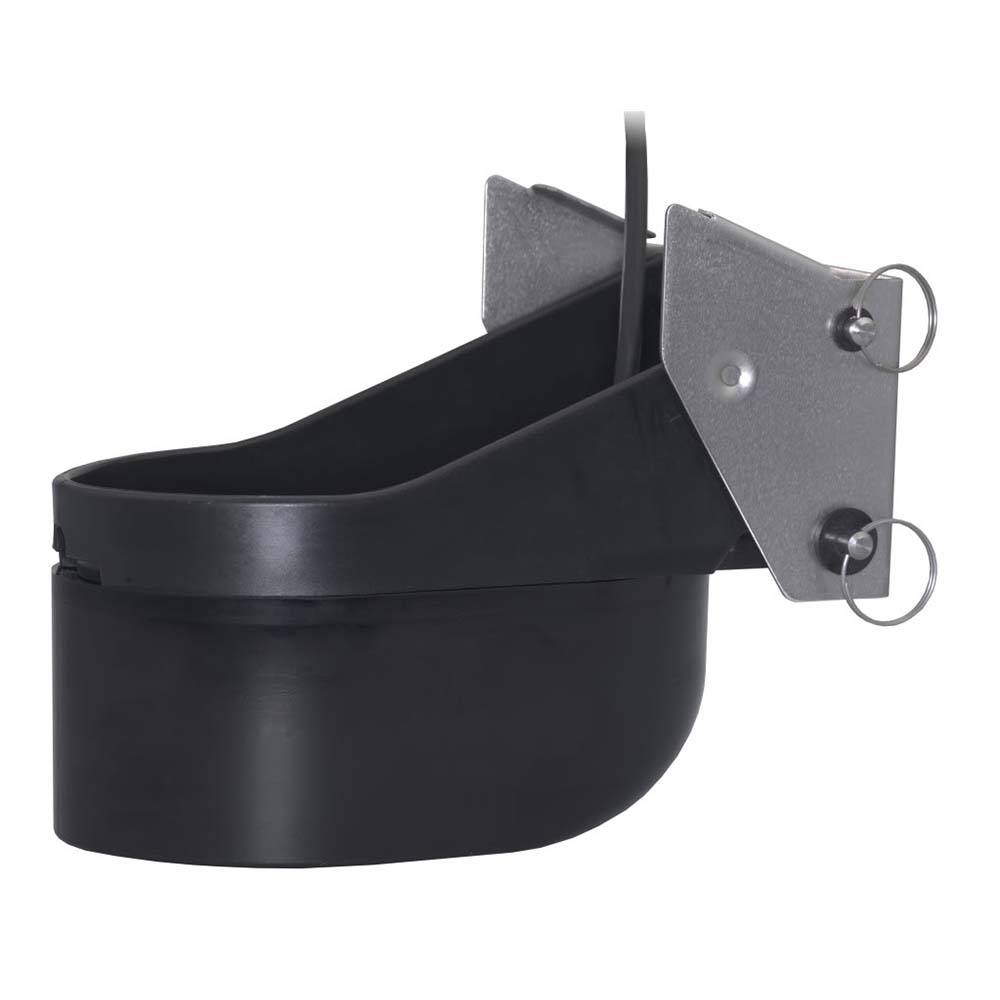

Airmar TM265C-LM-12F Transom Mount Transducer w/12-Pin Connector f/Furuno TZT12F, TZT16F & TZT19F

1 kW

The TM265LM, Chirp-ready transom mount is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium frequency from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

TM265C-LM-12F Transom Mount Transducer with 12-Pin Connector for Furuno TZT12F, TZT16F & TZT19F

Rely on Airmar's broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fishfinders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, CHIRP uses a precise sweep pattern of many frequencies within a long-duration transmits pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fishfinder.

Specifically designed for smaller boats (25'-40'), the TM265C-LM CHIRPS across the following bandwidths:

Low & Medium-Frequency (LM)

Low—Chirps from 42 kHz to 65 kHz, 25° to 16° beamwidth

Medium—Chirps from 85 kHz to 135 kHz, 16° to 11° beamwidth

Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency

Features:

• 8-Internal, Broadband Ceramic Elements
• Depth & fast-response water-temperature sensor
• Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
• Operating frequencies:
• Low—Chirps from 42 kHz to 65 kHz
• Medium—Chirps from 85 kHz to 135 kHz
• Beamwidth (Adjustable):
• Low—25° to 16°
• Medium—24° to 16°
• 10 m (33’) cable
• The depth and fast-response water-temperature sensor
• 12 Pin Connector for use with Furuno TZT12F and TZT16F Displays
• Urethane transducer housing and stainless steel mounting bracket
• Boat Size: 8 m to 12 m (25’ to 40’)
• Hull Type: Fiberglass, wood, or metal
• Exclusive Transducer ID

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz
• 25° to 16° port-starboard beamwidth
• Maximum depth of 914 m (3000')
• Medium frequency: 85 to 135 kHz
• 16° to 11° beamwidth
• Maximum depth of 457 m (1500')
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Transom mount stainless steel bracket for installation on boats of all propulsion types
• SEALCAST, seamless, urethane housing for long life in the water
• Also available as in-hull (M265LM), cavity/welded-tank (CM265LM), thru-hull (B265LM), and pocket (PM265LM) mounts
• Patented Xducer ID technology

SKU: NVN-91424
MPN: TM265C-LM-12F
