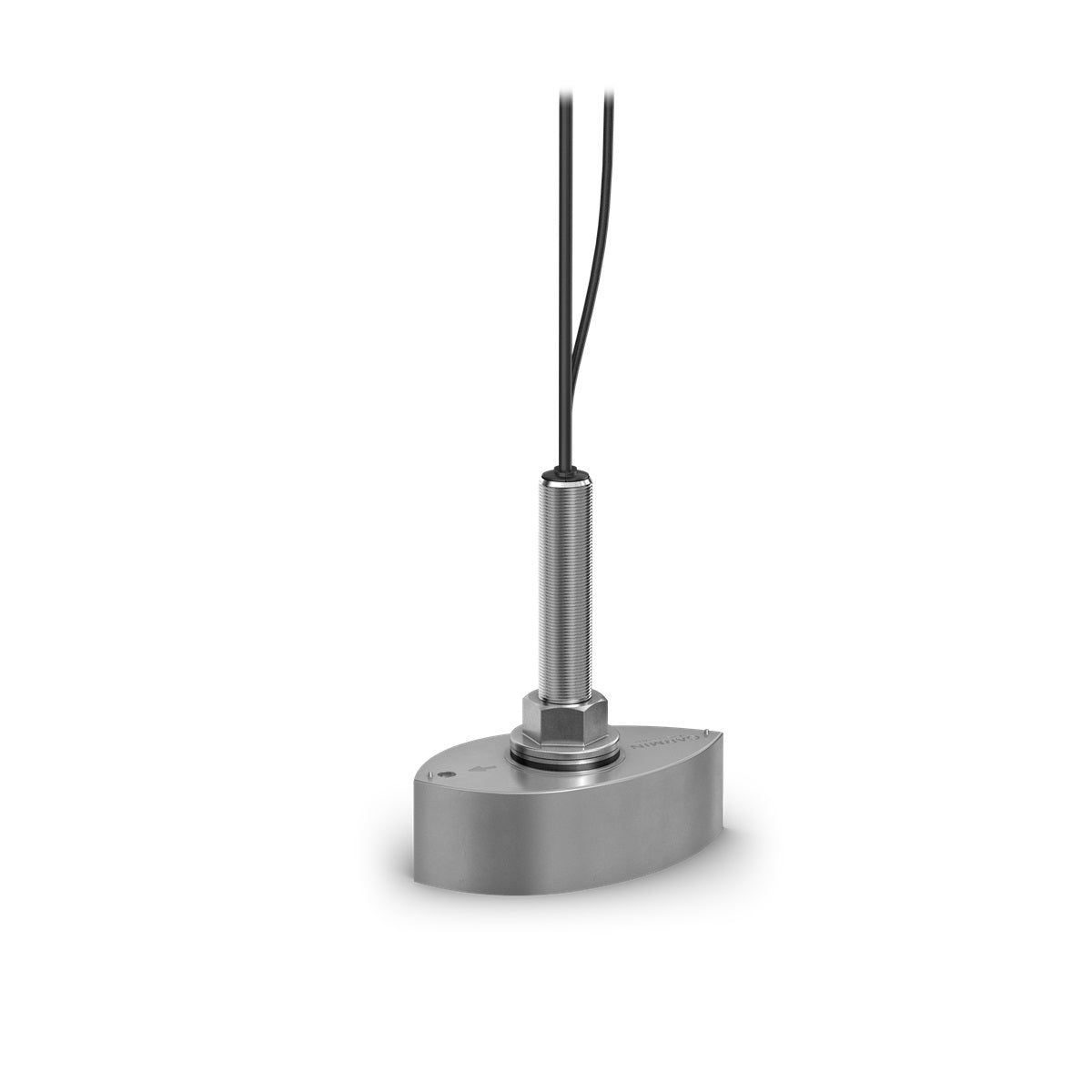

Garmin Panoptix PS70 Live Sonar Thru-Hull No Block with RapidReturn Sonar
Garmin Panoptix PS70 Live Sonar Thru-Hull No Block with RapidReturn Sonar — Product description
Transform Your Boating Experience with Cutting-Edge Live Sonar Technology
Picture this: you're out on the water, trolling for trophy fish in depths that once felt like uncharted territory. Suddenly, your display lights up with crystal-clear, real-time images of baitfish schools swirling around larger predators— all updating faster than you can blink. That's the power of advanced live sonar, designed specifically for serious anglers who demand precision and speed. This thru-hull transducer brings that vision to life, piercing through water up to 1,000 feet deep with sonar returns that refresh at an impressive minimum of 10 frames per second.
What sets it apart isn't just the raw specs—it's how it adapts to your day on the water. Whether you're chasing structure in rough seas or mapping vast areas of the ocean floor, the wide scanning beam and multiple viewing modes give you the edge to locate fish faster and make smarter decisions. No more guessing; see exactly what's happening below your hull, even as your boat moves.
Key Sonar Modes for Every Fishing Scenario
Flexibility is key when conditions change quickly. This system offers four intuitive modes to match your needs:
- Live down view: Watch fish and bait in real-time directly under your boat, perfect for jigging or vertical fishing. Spot the subtle movements that reveal schooling patterns or ambush points.
- Traditional sonar: Classic fish arches with superior target separation, ideal for everyday scanning and bottom contour reading.
- Triple-beam sonar: A split-screen masterpiece showing returns from port, starboard, and straight down—great for covering more ground without repositioning.
- Real-time 3D historical scans: Track your path in stunning 3D, rendering the full water column with fish positions preserved. Follow your course over ground for accurate structure mapping while underway.
Plus, image stabilization keeps views steady in choppy conditions, so you maintain clarity when it matters most. The enhanced contour mapping lets you chart wide swaths of seabed effortlessly, building custom maps on the fly for future trips.
Built for Deep Water and Demanding Installations
Engineered for vessels with hull deadrise angles from 0 to 20 degrees, this thru-hull setup installs cleanly with flush pocket options, minimizing drag and maximizing performance. Its robust 800-watt output punches through thermoclines and murky water, delivering reliable pings even in challenging environments.
Anglers targeting swordfish, tuna, or wrecks in offshore waters rave about the wide 120-degree by 8-degree beam—it sweeps broad areas quickly, revealing bait balls and game fish you might otherwise miss with narrower cones. Pair it with compatible displays for seamless networking, and you're set for all-day sessions without signal dropouts.
Practical Tips to Maximize Your Sonar Investment
To get the most out of your setup:
- Calibrate sensitivity for your water clarity—dial it in during calm mornings for baseline accuracy.
- Use live mode for active presentations like live-lining bait; switch to 3D for scouting new grounds.
- In rough weather, lean on stabilization features and triple-beam for comprehensive coverage.
- Combine with forward-facing elements on multi-unit setups for 360-degree awareness.
Real-world users report landing bigger fish by timing drops precisely to live action below, turning average outings into limit-fests. It's not just gear; it's a game-changer for competitive fishing.
Why Anglers Choose This for Offshore Adventures
In a sea of static sonar options, the rapid refresh rate and multi-mode versatility stand out. Deep-water pros appreciate the penetration and detail at extreme ranges, while weekend warriors love the ease of interpreting live feeds. It's rugged stainless mounting hardware ensures longevity against saltwater corrosion, and the generous cabling simplifies professional installs.
Elevate from reactive to proactive fishing—know where the fish are, how they're moving, and what the bottom holds, all from one powerful thru-hull unit.
Frequently Asked Questions
Garmin Panoptix PS70 Transducer
Model: 010-02768-10- Garmin RapidReturn™ sonar provides real-time images up to 1,000’ below the surface, updating at a minimum of 10 frames per second
- Locate bait and fish quickly with wide 120-degree by 8-degree sonar beam
- Choose the sonar mode that works for your circumstance: LiveVü™ down mode, traditional sonar, triple-beam sonar or RealVü™ 3D historical scanning technology
- See a clear view — even in rough waters — with image stabilization
- Thru-hull transducer and fairing block provide 0- to 20-degree deadrise angles or flush pocket mounting
- 800-watt power output gives you stronger sonar penetration through the water
- LiveVü™ down mode provides real-time live sonar images up to 1000'; see small baitfish and large target fish swimming under your boat
- RealVü™ 3D historical scanning technology helps you see ocean floor structure while your boat is moving; it shows the entire water column you have passed over in 3D, from the bottom to the surface and all fish in between
- The New True Motion 3D sonar returns feature now follows the vessel’s course over ground
- Traditional sonar offers crisp clear fish arches and excellent separation of targets under the boat
- Triple-beam traditional sonar produces a three-way traditional sonar split, giving you sonar returns from the port and starboard directions — as well as targets directly under the boat — in an easy-to-understand traditional sonar view
- Survey the ocean floor in great detail; new QuickDraw Contours feature improvements allow you to survey wide areas at depths up to 1,000'""
See fish live. Catch fish deep. The Panoptix™ PS70 thru-hull transducer is powered by Garmin RapidReturn™ sonar, which gives you live sonar views up to 1,000’ below the surface. As the fastest live sonar at 1,000’, images update at a minimum of 10 frames per second. Locate bait and fish quickly with a wide 120-degree by 8-degree sonar beam. Four easy-to-understand sonar modes — LiveVü™ down mode, traditional sonar, triple-beam traditional sonar or RealVü™ 3D historical scanning technology — allow you to select the view that works for your circumstance. And new QuickDraw Contours feature improvements allow you to survey wide areas of the sea floor at depths up to 1,000’.
What's in the Box:
- PS70 thru-hull transducer
- Stainless steel thru-hull mounting hardware
- Power cable
- Network cable 40 ft (12 meters) with network adapter
- Documentation
SKU: NVN-1003665
MPN: 010-02768-10
UPC: 753759320706
Technical specifications
| Brand | Garmin |
| Model | Garmin Panoptix PS70 Live Sonar Thru-Hull No Block with RapidReturn Sonar |
| SKU / MFR# | 1003665 |
