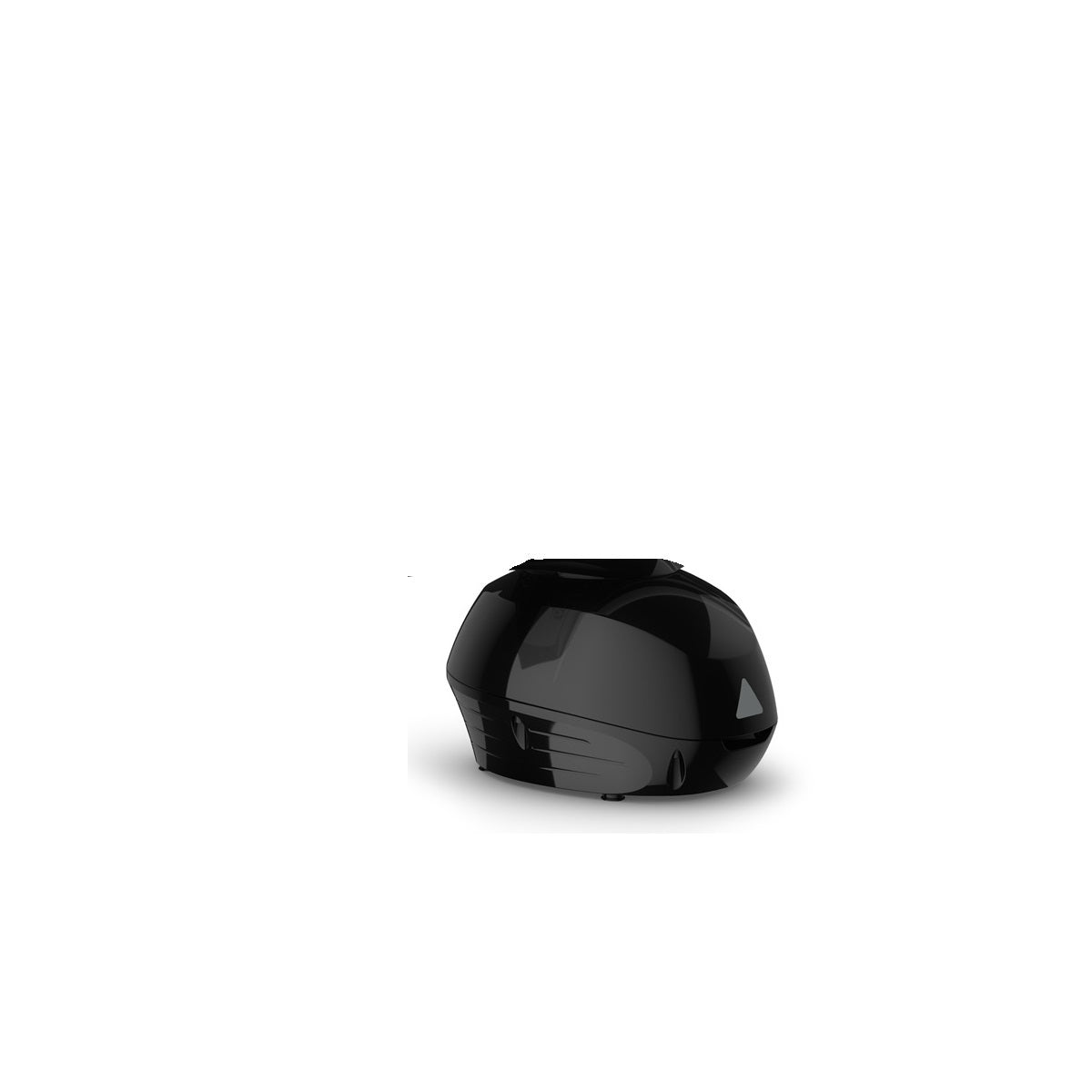

Garmin GMR Fantom 120W Radar Pedestal Only Black
Garmin GMR Fantom 120W Radar Pedestal Only Black — Product description
Enhance your vessel's situational awareness with the Garmin GMR Fantom 120W radar pedestal, a powerhouse designed for serious mariners who demand clarity in the most challenging conditions. This black pedestal-only unit delivers 120 watts of targeted transmit power, enabling detection from as close as 20 feet out to an impressive 96 nautical miles. Whether you're navigating foggy inlets, tracking bird flocks for prime fishing grounds, or dodging unexpected traffic at night, this radar pedestal integrates seamlessly with compatible Garmin chartplotters to overlay critical data right on your screen.
What sets it apart? MotionScope technology harnesses Doppler processing to paint moving targets in vivid colors—red for approaching vessels or storms, green for receding ones. No more guessing; see threats and opportunities in real-time. Pulse compression ensures sharp, high-resolution images without draining your battery, striking the perfect balance between performance and efficiency.
Standout Features for Smarter Boating
- MotionScope Doppler Effect: Instantly identify and color-code moving objects like boats, birds, or weather cells to make proactive decisions on the water.
- Flexible Rotation Speeds: Choose 24 RPM for power savings during long watches or crank it up to 48 RPM for rapid updates in high-stakes scenarios (optimized for shorter ranges).
- Radar Overlay Compatibility: Blend radar returns with your electronic charts, even in split-screen mode, for a unified view that simplifies complex navigation.
- Advanced Auto Adjustments: Dynamic auto gain and auto bird gain fine-tune images automatically, while echo trails and MARPA tracking (with heading sensor) keep tabs on multiple targets effortlessly.
- Dual Radar and Range Support: Pair with another unit for 360-degree coverage or operate in dual range mode to monitor both close-in hazards and distant horizons simultaneously.
Real-World Performance That Delivers
Boaters rave about how this pedestal cuts through rain clutter and fog like a knife, revealing hidden rocks, buoys, and debris that traditional radars miss. For offshore anglers, the bird mode highlights surface-feeding fish by detecting diving gulls—turning a slow day into a hot bite. Power-hungry? Not here. At just 120W, it sips energy compared to magnetron-based systems, ideal for extended trips on sailboats or smaller cruisers.
Installation is a breeze with no fiddly calibration menus—just mount, connect the included cables, and pair via Garmin's intuitive network. Programmable antenna parking adds convenience, stowing your radar dome out of harm's way when docked.
Technical Specifications at a Glance
| Category | Details |
|---|---|
| General | |
| Dimensions (Pedestal) | 16.6" x 14.3" x 10.7" |
| Weight | 34.7 lb (15.7 kg) |
| Waterproof Rating | IPX6 |
| Rotation Speed | 24/48 RPM (high speed in select modes) |
| Maximum Range | 96 nm |
| Minimum Range | 6 meters |
| Electrical | |
| Power Input | 10-32 VDC |
| Transmit Power | 120W |
| Radar Capabilities | |
| Dual Range | Yes |
| Overlay Support | Yes |
| Dual Radar | Yes |
| Auto Bird Gain | Yes |
| Auto Gain | Dynamic |
| MARPA Tracking | Yes (requires heading sensor) |
| Echo Trails | Yes |
| MotionScope | Yes |
| Antenna | Sold Separately |
What's Included for Quick Setup
- GMR Fantom 120W Radar Pedestal (Black)
- Mounting hardware kit and template
- 15m right-angle power cable
- 15m right-angle network cable
- Comprehensive documentation
Frequently Asked Questions
What makes MotionScope technology unique on the Garmin GMR Fantom 120W pedestal?
MotionScope uses Doppler radar processing to detect motion and color-code targets—red for approaching, green for receding—helping you spot boats, birds, or storms instantly without manual interpretation.
Does this pedestal require an antenna, and how do I choose one?
Yes, the antenna is sold separately. Select a compatible Garmin dome based on your boat size and range needs, such as 18-inch or 24-inch options for optimal performance.
How does pulse compression benefit low-power operation?
Pulse compression delivers high-resolution imaging like higher-wattage radars but at just 120W, reducing power draw and heat while maintaining clarity in fog, rain, or clutter.
Can I use this radar with multiple chartplotters?
Absolutely. It supports Garmin's marine network for sharing data across multiple compatible multifunction displays, plus dual radar setup for comprehensive coverage.
Is installation straightforward for DIY boat owners?
Yes, with no complex settings needed. Mount the pedestal using the included hardware, connect the power and network cables, and it auto-configures with your Garmin chartplotter.
What's the ideal use case for 48 RPM rotation speed?
Use 48 RPM for fast refresh rates in close-range scenarios (up to 12 NM), perfect for busy harbors or fishing when MotionScope is off for maximum update speed.
Does it handle heavy weather well?
Built tough with IPX6 waterproofing and rain-clutter rejection, it excels in storms, fog, or rain, providing reliable long-range detection up to 96 nautical miles.
Garmin fantom 120 watt Pedestal and Cable only - Black
Model: 010-01364-50- Know what’s coming. MotionScope™ technology shows targets in color as they move toward you or away.
- GMR Fantom brings the power. 120 watts of it, actually.
- Get high resolution without wasting energy, thanks to pulse compression.
- Add even more detail to your maps with radar overlay — even in a split-screen view.
This 120-watt radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.
MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.
This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
Specifications| General | |
| DIMENSION | Pedestal: 16.6"" x 14.3"" x 10.7"" |
| WEIGHT | 34.7 lb (15.7 kg) |
| WATERPROOF | IPX6 |
| ROTATION SPEED (RPM) | 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower) |
| MAXIMUM RANGE | 96 nm |
| MINIMUM RANGE | 6 meters |
| Electrical Features | |
| POWER INPUT | 10-32 V DC |
| TRANSMIT POWER | 120 W |
| Radar Features | |
| DUAL RANGE | Yes |
| OVERLAY | Yes |
| DUAL RADAR SUPPORT | Yes |
| AUTO BIRD GAIN | Yes |
| AUTO GAIN | Dynamic |
| MARPA TARGET TRACKING | yes (requires heading sensor, sold separately) |
| ECHO TRAILS | Yes |
| MOTIONSCOPE | Yes |
| PROGRAMMABLE ANTENNA PARKING | Yes |
| TARGET SIZE | Yes |
| SCAN AVERAGING | Yes |
| Antenna | Sold Separately |
What's in the Box:
- GMR Fantom 120 watt Pedestal - Black
- Mounting hardware kit and template
- Right angle power cable (15 meters)
- Right angle network cable (15 meters)
- Documentation
SKU: NVN-1003650
MPN: 010-01364-50
UPC: 753759331429
