Discover Unmatched Precision on the Water with the GPSMAP 1022 and LiveScope Plus
Imagine navigating open waters or chasing trophy fish with crystal-clear visibility into what's below the surface—all from a rugged 10-inch chartplotter that's built to handle the harshest marine environments. The Garmin GPSMAP 1022 paired with LiveScope Plus transforms your boat into a high-tech command center, blending advanced charting, real-time sonar imaging, and seamless connectivity for cruisers, sailors, and serious anglers alike.
What sets this bundle apart is its intuitive keypad design, which lets you make quick adjustments even with wet hands or gloves, combined with the game-changing LiveScope Plus sonar. This forward-facing system delivers live-action views of fish behavior, bottom structure, and underwater obstacles, helping you drop the perfect cast or avoid hidden hazards without guesswork.
Superior Display and User-Friendly Controls
The vibrant WSVGA display measures 8.8 x 4.9 inches diagonally, rendering sharp 1024 x 600 resolution graphics that remain readable in direct sunlight. Unlike touchscreen-only models, the physical keypad and multifunction knob provide tactile feedback for reliable operation during choppy conditions. Programmable hotkeys let you customize shortcuts for your most-used functions, whether toggling sonar views or marking waypoints on the fly.
- IPX7 water resistance withstands submersion and spray.
- Bail or flush mounting options for seamless integration into any helm setup.
- Compact dimensions (12.5 x 7.3 x 2.7 inches) and lightweight at 4.1 lbs for easy installation.
High-Speed GPS and GLONASS for Fluid Navigation
Powered by a 10 Hz internal receiver, your position updates 10 times per second, creating smooth tracks and pinpoint accuracy for trails, headings, and returns to hotspots. Store up to 5,000 waypoints, 100 routes, and 50,000 track log points—perfect for mapping fishing grounds or plotting extended cruises. Tide tables and worldwide basemap coverage get you started right away, with room to add detailed BlueChart g3 Vision charts for satellite imagery and 3D bathymetry.
LiveScope Plus: Real-Time Sonar Revolution
The included LiveScope Plus (LVS34) transducer elevates fishing to a new level with ultra-clear, real-time forward-facing sonar. See fish swim toward your lure in Perspective Mode, track schools in 45-degree sweeps, or switch to traditional Down and Forward views. Its forward reach extends up to 200 feet, with exceptional separation of targets even in murky water. Pair it with the GPSMAP 1022 for overlaid sonar on charts, revealing structure and fish precisely where your waypoints sit.
Anglers report landing more fish faster, as LiveScope Plus reduces blind casting and lets you react to subtle movements—like a bass turning away or charging in.
Robust Networking for a Connected Vessel
Two Garmin Marine Network ports enable sharing sonar, radar, cameras, and user data across multiple units. NMEA 2000 and 0183 compatibility integrates with autopilots, AIS, VHF radios, weather stations, and FUSION audio systems. Add GCV or GSD black box sonars for CHIRP, ClearVü, and SideVü scanning, or connect IP cameras for 360-degree awareness.
Built-in Wi-Fi links to the ActiveCaptain app for community-shared Quickdraw Contours, smart notifications, trip planning, and over-the-air updates—keeping your system current without docking.
Sailing-Specific Tools for Competitive Edges
Sailors love the pre-race guidance page with virtual start lines, laylines, burn time countdowns, and synchronized timers across networked devices. Enhanced wind roses, set/drift indicators, true/apparent wind overlays, and course-over-ground lines optimize your tactics. Transfer GPX files from other GPS units to consolidate your data effortlessly.
Key Technical Specifications
| Feature | Details |
|---|---|
| Display Resolution | 1024 x 600 pixels (WSVGA) |
| GPS Receiver | 10 Hz high-sensitivity GPS/GLONASS |
| Network Ports | 2 Garmin Marine Network, NMEA 2000/0183 |
| Waypoints/Routes/Tracks | 5,000 / 100 / 50,000 points (50 saved) |
| Power Draw | Max 32.4 W at 10 VDC |
| Card Slots | 2 SD cards |
| Water Rating | IPX7 |
| Video Inputs | 1 BNC composite |
What's Included in This Bundle
- GPSMAP 1022 chartplotter
- LiveScope Plus LVS34 sonar system
- Power/data cable
- NMEA 2000 drop cable and T-connector
- Bail and flush mount kits with protective cover
- Documentation and trim pieces
Frequently Asked Questions
Is the GPSMAP 1022 suitable for both fishing and sailing?
Yes, it excels in both with LiveScope Plus for fishing sonar imaging and dedicated sailing pages for laylines, wind data, and race timers.
How does LiveScope Plus differ from traditional sonar?
LiveScope Plus provides real-time video-like sonar views, showing live fish movement and structure in forward, down, and perspective modes—far beyond static traditional sonar images.
Can I connect this to other Garmin devices or networks?
Absolutely, with dual Marine Network ports, NMEA 2000/0183, and compatibility for radar, AIS, autopilots, and more.
Does it support map upgrades?
Yes, two SD card slots accept BlueChart g3 Vision premium charts and LakeVü g3 Ultra maps via ActiveCaptain app.
Is installation straightforward for boat owners?
Bail and flush mount kits make setup simple, with included cables for power, data, and NMEA 2000 connectivity.
What app enhances this chartplotter?
ActiveCaptain app offers trip planning, Quickdraw Contours sharing, notifications, and software updates over Wi-Fi.
How accurate is the GPS tracking?
The 10 Hz GPS/GLONASS refreshes 10 times per second for smooth, precise positioning and waypoint navigation.

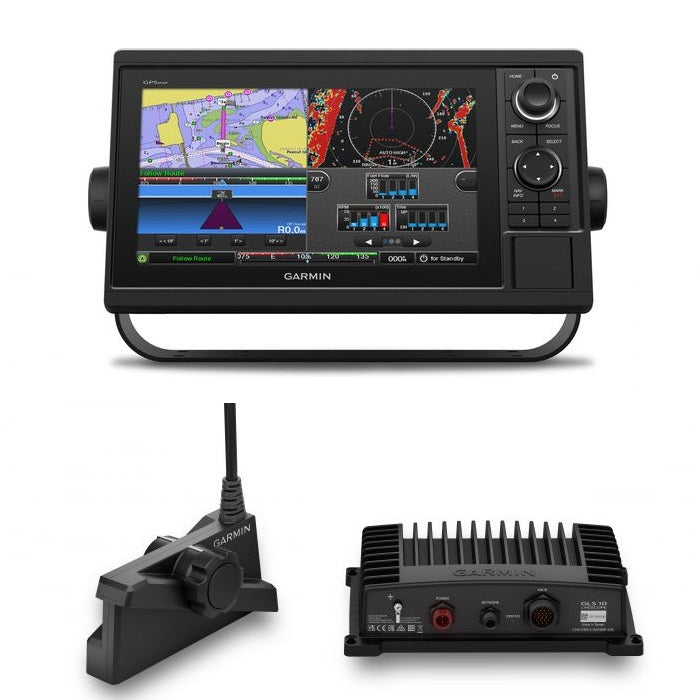

Garmin GPSMAP® 1022 10-inch Chartplotter LIVESCOPE Plus Bundle
Model: 010-01740-00/LVS34UPC: 753759168308
- 10-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g3 Vision® premium charts
GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.
Upgrade to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as high-resolution relief shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
Specifications| Performance and Physical | |
| Dimensions | 12.5"" x 7.3"" x 2.7"" (318 x 185 x 69 cm) |
| Display size | 8.8"" x 4.9"" (224 x 125 cm) |
| Display resolution | 1024 x 600 |
| Display type | WSVGA display |
| Weight | 4.1lbs |
| Water rating | IPX7 |
| Power consumption | Max power usage at 10 Vdc: 32.4 W |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Bail or flush |
| Receiver | 10 Hz high-sensitivity |
| Garmin Marine Network™ ports | 2 |
| Preloaded maps | None |
| Accepts data cards | 2 SD™ cards |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Tide tables | Yes |
| Garmin Radar compatible | Yes |
| Garmin Sonar compatible | Yes (with external black box, sold separately) |
| Garmin SmartMode compatible (customizable monitor presets) | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Garmin Meteor™ Audio System compatible | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| GSD™ Black Box sonar support | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Garmin Helm compatible | Yes |
| GRID™ (Garmin Remote Input Device) compatible | Yes |
| Wireless remote compatible | Yes |
| CHIRP sonar technology | Yes (with external black box, sold separately) |
| ClearVü | Yes (with external black box, sold separately) |
| SideVü | Yes (with external black box, sold separately) |
| NMEA 2000® compatible | Yes |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | 1 BNC |
| Video output ports | None |
| Wireless connectivity | Yes |
What's in the Box:
- GPSMAP 1022 chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- LIVESCOPE Plus
SKU: NVN-1003643
MPN: 010-01740-00/LVS34
UPC:
Technical specifications
