Garmin GPSMAP8610xsv Ice House Livescope Plus System GN+ US Inland
Garmin GPSMAP8610xsv Ice House Livescope Plus System GN+ US Inland — Product description
Transform Your Ice Fishing with Real-Time Sonar Precision
Imagine peering beneath the ice like never before, spotting fish in real time as they move forward or directly below your hole. The Garmin GPSMAP 8610xsv paired with the LiveScope Plus system delivers exactly that, tailored for hardcore ice anglers who demand clarity in the harshest conditions. This setup shines in ice houses, where the flexible LVS34-IF transducer holds up against freezing temps without stiffening, and the quick-switch pole mount lets you toggle between Forward and Down modes on the fly.
Crafted for those long, productive days on frozen lakes, it combines a vibrant 10-inch touchscreen with advanced CHIRP sonar and Garmin Navionics+ mapping covering over 25,000 inland and coastal spots. Whether you're jigging for perch or hunting trophy walleye, this system helps you stay one step ahead of the fish.
Stunning Visibility on a Rugged, Responsive Display
The heart of this rig is the 10-inch full HD IPS touchscreen, boasting 1920 x 1200 resolution for sharp, glare-resistant views even in bright ice house light. Pinch-to-zoom charts, split-screen sonar overlays, and custom pages let you blend maps with live feeds intuitively. HDMI output mirrors everything to a larger TV, perfect for sharing the action with your crew without huddling around a small screen.
- Waterproof IPX7 rating shrugs off splashes and condensation.
- Multi-touch interface feels natural, even with gloves on.
- Built-in GPS with 10 Hz refresh, GLONASS, Galileo, and WAAS for pinpoint accuracy under thick ice.
LiveScope Plus: See Fish Move Like You're There
LiveScope Forward mode scans up to 80 feet ahead, revealing cruising fish and structure before you drill. Switch to Down mode for a crystal-clear cone view straight below, ideal for precise jig presentations. The GLS 10 black box processes it all with zero lag, powered by the LVS34-IF transducer designed for ice—its cable stays pliable down to sub-zero temps.
Complement it with built-in traditional CHIRP (dual 70/83/200 kHz), ClearVü, and SideVü scanning at multiple frequencies up to 1200 kHz. Panoptix compatibility opens doors to all-around sonar if you expand later. Power output hits 1 kW for deep-water penetration through ice layers.
"It's like having eyes under the ice—fish reactions to your bait are immediate and unmistakable."
Pro Tips for Ice House Domination
Mount the 0-degree pole for stable Down scans during active jigging. Use swivel adjustments to sweep Forward for searching new spots. Custom pages stacking sonar splits with lake maps save time scanning multiple screens. In low light, the IPS panel's wide viewing angles keep images crisp for everyone in the shelter.
For best results, pair with a quality power setup to handle the sonar module's draw, and calibrate transducer placement away from props or heavy boots to minimize noise.
Seamless Networking for Bigger Setups
Two Garmin Marine Network ports, NMEA 2000, video inputs (BNC and HDMI), and Wi-Fi create a hub for engines, cameras, and more devices. Bluetooth pairs with phones for software updates or music—keeping the vibe right during slow bites.
Frequently Asked Questions
What makes the LiveScope Plus transducer ideal for ice fishing?
The LVS34-IF transducer's cable remains flexible in freezing conditions, preventing cracks or stiffness. The included pole mount allows quick switches between Forward and Down modes for versatile ice angling.
Can I use this system on open water besides ice fishing?
Absolutely. Built-in CHIRP, ClearVü, SideVü sonars, and coastal mapping make it a year-round chartplotter for boats, with full waterproofing and networking capabilities.
How does the display handle bright conditions in an ice house?
The 10-inch full HD IPS panel offers excellent anti-glare performance and wide viewing angles, ensuring clear sonar and map views even with overhead lights or snow reflections.
What mapping is preloaded on the GPSMAP 8610xsv?
Garmin Navionics+ provides detailed charts for over 25,000 inland and coastal U.S. lakes, including contours, depths, and navigation aids, with room for custom data cards.
Does it support integration with other Garmin devices?
Yes, via NMEA 2000, Garmin Marine Network, Bluetooth, ANT+, and Wi-Fi. Connect engines, cameras, or sensors for a unified dashboard experience.
What's included for easy ice setup?
The kit features the GPSMAP 8610xsv, LiveScope Plus LVS34-IF transducer, GLS 10 sonar module with cables, and an ice fishing pole mount—ready to deploy.
How accurate is the GPS under ice?
10 Hz GPS with GLONASS, Galileo, and WAAS support delivers precise positioning (within a few feet), helping mark hot holes and routes across the lake.
Why Ice Anglers Swear by This Setup
From tournament pros to weekend warriors, the combo of rugged build, live-action sonar, and expansive mapping turns guesswork into targeted strikes. Dial in your edge this season and watch the flags fly.
Garmin GPSMAP8610xsv Ice House Livescope Plus System GN+ US Inland
Model: 020-00332-00- 10" FULL HD IPS TOUCHSCREEN DISPLAY
- SHARE TO YOUR TV OR EXTERNAL DISPLAY VIA HDMI OUTPUT (HDMI CABLE NOT INCLUDED)
- LIVESCOPE™ FORWARD AND LIVESCOPE™ DOWN MODES
- PRELOADED WITH GARMIN NAVIONICS+™ MAPPING OF 25,000+ INLAND AND COASTAL LAKES
Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System and everything else you’ll need to catch more fish.
This chartplotter features a 10" full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.
Get a GLS™ 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.
With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.
Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping.
Create custom pages that combine sonar and maps on your display.
See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.
Specifications| General | |
| TOUCHSCREEN | Yes |
| INPUT | Touchscreen |
| DISPLAY SIZE | 8.6"" x 5.4""; 10.1"" diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal) |
| DISPLAY RESOLUTION | 1920 x 1200 pixels |
| DISPLAY TYPE | WUXGA, IPS |
| WEIGHT | 15.4 lbs (7.0 kg) |
| WATERPROOF | IPX7 |
| Maps & Memory | |
| ACCEPTS DATA CARDS | 2 microSD™ cards |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| Ice Fishing Details | |
| BAG SIZE | None |
| INCLUDED TRANSDUCER | LiveScope™ Plus System with LVS34-IF |
| TRANSDUCER HOLDING FEATURE | Pole mount |
| Sensors | |
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | Yes |
| GPS | Yes |
| GLONASS | Yes |
| GALILEO | Yes |
| SUPPORTS WAAS | Yes |
| Sonar Features & Specifications | |
| DISPLAYS SONAR | Yes |
| POWER OUTPUT | 1 kW |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVU | built-in 260/455/800/1000/1200 kHz |
| SIDEVU | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | Yes |
| LIVESCOPE | Yes |
| Connections | |
| NMEA 2000® PORTS | 1 |
| VIDEO INPUT PORTS | 1 (BNC composite); 1 HDMI (HDCP compliant) |
| VIDEO OUTPUT PORTS | 1 HDMI |
| GARMIN MARINE NETWORK PORTS | 2 |
| 8-PIN TRANSDUCER PORTS | Yes |
| 12-PIN TRANSDUCER PORTS | Yes |
| BLUETOOTH® PAIRING | Yes |
| ANT+ (CONNECTIVITY) | Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
| Input Voltage | 10 to 32 Vdc |
| Dimensions | 10.25"" x 8.0625"" x 2.95"" (25.9 cm x 20.5 cm x 7.5 cm) |

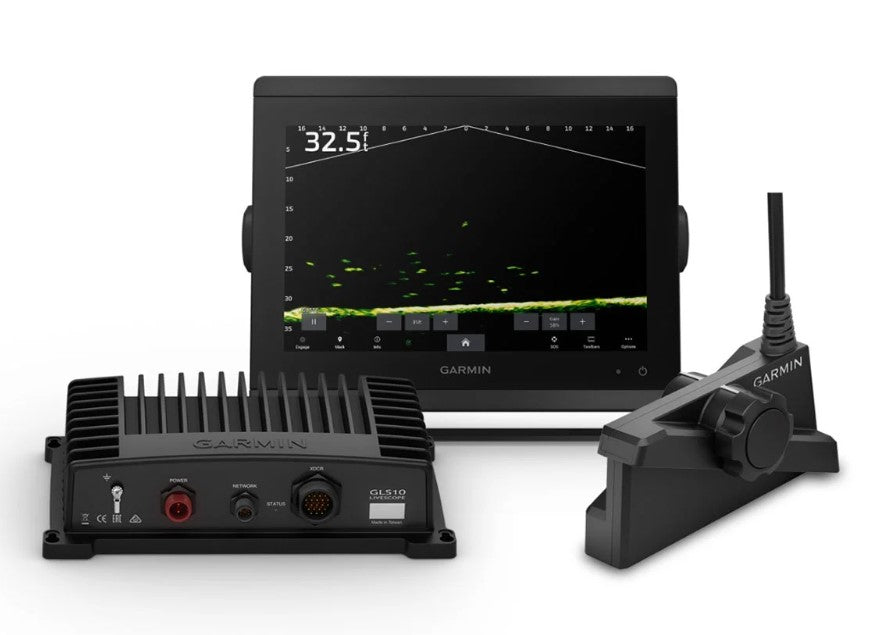

What's in the Box:
- GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S.
- LiveScope Plus LVS34-IF transducer
- GLS™ 10 black box sonar module with power and network cables
- Ice fishing pole mount
- Documentation
SKU: NVN-1003569
MPN: 020-00332-00
UPC: 753759325350
Technical specifications
| Brand | Garmin |
| Model | Garmin GPSMAP8610xsv Ice House Livescope Plus System GN+ US Inland |
| SKU / MFR# | 1003569 |
