Garmin GPSMAP1243XSV HD3 Radar Pack with US and Canada GN+
Garmin GPSMAP1243XSV HD3 Radar Pack with US and Canada GN+ — Product description
Discover Unmatched Clarity on the Water
Picture this: you're out on the open water, scanning for the perfect fishing spot or navigating tricky coastal waters. The Garmin GPSMAP 1243xsv with GMR 18 HD3 radar changes everything. This powerhouse 12-inch chartplotter delivers razor-sharp imaging through its upgraded IPS display, offering wide viewing angles and superior sunlight readability—even on the brightest days. Whether you're a weekend angler or a serious mariner, its blend of advanced sonar, radar, and preloaded Garmin Navionics+ charts for U.S. and Canada ensures you stay ahead of the game.
Unlike basic displays that wash out in glare, the high-res WXGA screen (1280 x 800 pixels) paints vivid details with high-contrast color palettes. It's not just about seeing—it's about interpreting every ripple, fish arch, and structure with confidence.
Revolutionary Sonar: See What's Hiding Beneath
Built-in Ultra High-Definition SideVü and ClearVü scanning sonars transform how you read the underwater world. These CHIRP-enabled tools provide photorealistic side and down views, making it easier to spot fish hiding near drop-offs or schools cruising along the bottom. Pair it with traditional 1 kW CHIRP sonar for deep-water prowess up to 5,000 feet, depending on conditions.
- SideVü and ClearVü: Crystal-clear scans at frequencies like 260/455/800 kHz reveal structure and baitfish like never before.
- Panoptix Compatibility: Add live sonar (transducer separate) for real-time 360-degree views around your vessel.
- Smart Features: Bottom lock, water temp graphs, sonar rewind, and recording let you analyze past scans on the fly.
Pro tip: In murky bays, crank up the CHIRP range for medium and high frequencies to separate targets from clutter—anglers swear by it for trophy hunts.
Stay Safe with GMR 18 HD3 Radar Power
The included GMR 18 HD3 radome brings 18-inch HD radar to your setup, detecting birds, vessels, and weather cells up to 36 nautical miles. Its high-definition target separation cuts through rain clutter, giving you reliable returns even in storms. Seamlessly overlay radar on your charts for intuitive hazard avoidance.
Why it stands out: Dual-range scanning and MotionScope Doppler tech (on compatible setups) highlight moving targets in color, so you react faster to traffic or flocks signaling hot bites.
Build Your Dream Marine Network
This unit shines in multi-device setups. Share maps, radar overlays, user data, and IP camera feeds across compatible Garmin gear via two Garmin Marine Network ports. NMEA 2000 and 0183 ensure compatibility with engines (like select Yamahas), autopilots, VHF, AIS, Fusion audio, and OneHelm third-party switching.
- Wi-Fi Onboard: Smart notifications, updates, and Helm app control from your phone.
- Engine Data: Monitor RPM, fuel, trim—effortlessly.
- Video Inputs: BNC for cameras, HDMI out for second screens.
Connect wearables like quatix watches or wireless remotes for hands-free control while reeling in the big one.
Engineered for Real-World Marine Demands
At 12.1 x 8.9 x 3.2 inches and 6.6 lbs, it mounts via bail, flush, or flat options with IPX7 water resistance. Polarized lens support fights glare, and low power draw (1.7A typical at 12V) suits battery-conscious setups.
Built to thrive in salt spray, vibrations, and rough seas—peace of mind for every outing.
Everything You Need to Get Started
- GPSMAP 1243xsv chartplotter
- Preinstalled microSD card
- Power and NMEA 2000 cables
- Bail and flush mount kits
- Protective cover and trim pieces
- 8-pin to 12-pin transducer adapter
- GMR 18 HD3 radome with 15m power/network cables and hardware
- Full documentation
Frequently Asked Questions
What sonar frequencies does the GPSMAP 1243xsv support?
It handles traditional 50/77/83/200 kHz, full CHIRP ranges, plus ClearVü and SideVü at 260/455/800 kHz, depending on your transducer.
Can I network multiple Garmin devices with this chartplotter?
Yes, with two Garmin Marine Network ports, share charts, sonar, radar, and video across your compatible Garmin ecosystem.
Does it integrate with engine data?
Absolutely—connect to various engines including select Yamahas via NMEA 2000 or J1939 for real-time performance monitoring.
How does the radar enhance fishing?
The GMR 18 HD3 excels at spotting bird flocks over bait balls and tracking vessels, with HD clarity for rain-piercing detection.
Is the display viewable from multiple angles?
The IPS technology provides wide-angle visibility and excellent sunlight performance, ideal for helm stations with varying viewer positions.
What mapping is preloaded?
Garmin Navionics+ for U.S. and Canada, including detailed coastal charts, bathymetry, and community updates via ActiveCaptain.
Can I control it from my phone?
Built-in Wi-Fi pairs with the Garmin app for notifications, updates, Quickdraw data, and digital switching.

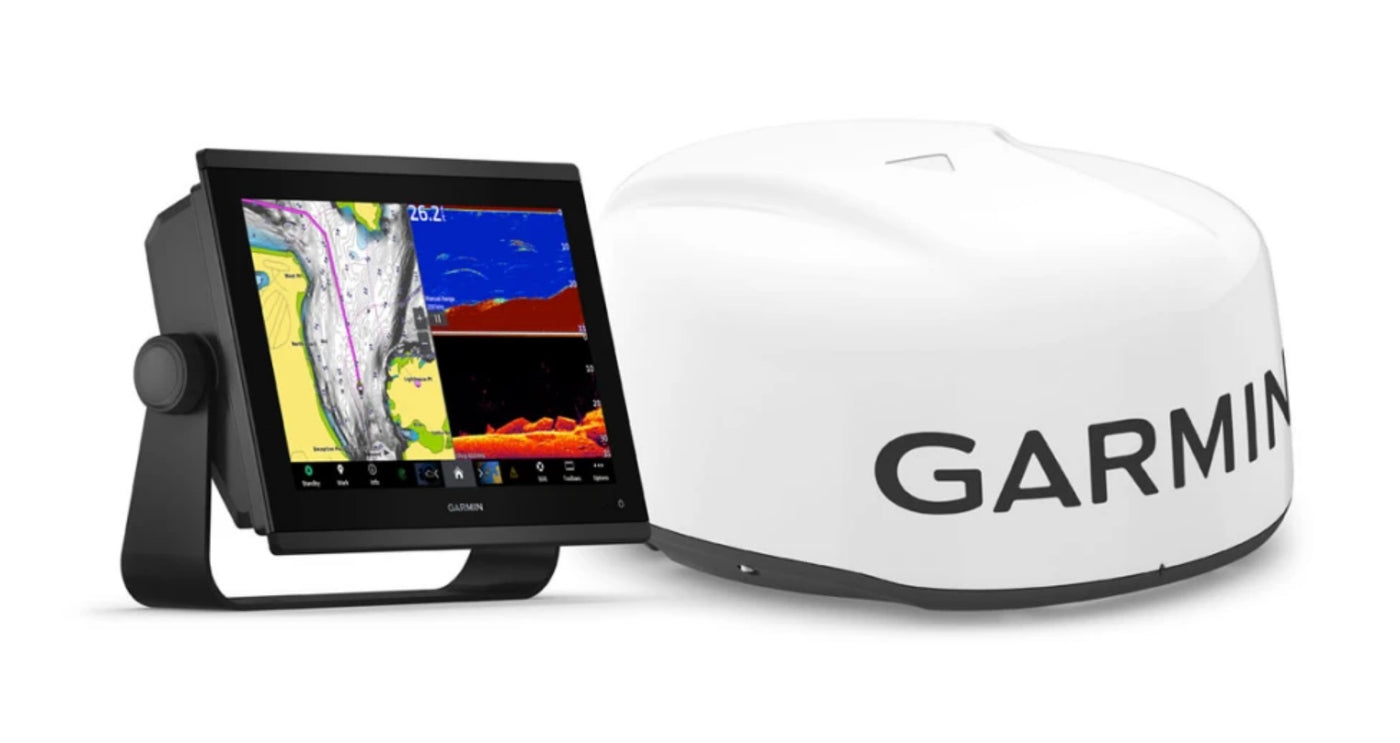

Garmin GPSMAP® 1243xsv SideVü, ClearVü and Traditional CHIRP Sonar with Garmin Navionics+™ and GMR18HD3 radar Dome
Model: 010-02367-53- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm™ digital switching.
- Easily build your marine system using the best of network connectivity.
- Navigate any waters with preloaded mapping and coastal charts.
- See below your boat with built-in sonar capabilities.
- Manage your marine experience from nearly anywhere.
With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
Navigate any waters with preloaded Garmin Navionics+™ charts and mapping
Specifications| General | |
| PHYSICAL DIMENSIONS | 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) |
| DISPLAY SIZE | 10.3"" x 6.4""; 12.1"" diagonal |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA display |
| WEIGHT | 6.6 lbs. (3.0 kg) |
| WATER RATING | IPX7 |
| POLARIZED SUPPORT | Yes |
| POWER CONSUMPTION | Max power usage at 10 Vdc: 26.5 W Typical current draw at 12 Vdc: 1.7 A Max current draw at 12 Vdc: 2.2 A |
| ANTENNA | Internal or external over NMEA 2000 |
| MOUNTING OPTIONS | Bail, flush or flat |
| RECEIVER | 10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS | 2 |
| TRANSMIT POWER | 1 kW traditional; 1 kW CHIRP |
| Maps & Memory | |
| PRELOADED MAPS | Garmin Navionics+™ |
| ACCEPTS DATA CARDS | 2 microSD™ cards (back of unit) |
| WAYPOINTS | 5,000 |
| TRACK LOG | 50,000 points; 50 saved tracks |
| ROUTES | 100 |
| Outdoor Recreation | |
| TIDE TABLES | Yes |
| Chartplotter Features | |
| GARMIN RADAR COMPATIBLE | Yes |
| GARMIN SONAR COMPATIBLE | Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) | Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| GSD™ BLACK BOX SONAR SUPPORT | Yes |
| GCV™ BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN COMPATIBLE | Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes |
| WIRELESS REMOTE COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| Sonar Features & Specifications | |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes |
| FREQUENCIES SUPPORTED | Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) |
| CHIRP SONAR TECHNOLOGY | Yes (Built-in) |
| CLEARVü | Yes with CHIRP (built-in) |
| SIDEVü | Yes with CHIRP (built-in) |
| MAXIMUM DEPTH | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| WATER TEMPERATURE LOG AND GRAPH | Yes |
| SONAR RECORDING | Yes |
| SONAR HISTORY REWIND | Yes |
| Connections | |
| NMEA 2000® COMPATIBLE | Yes |
| TRANSDUCER PIN NUMBERS | 12-pin (orange) |
| NMEA 0183 INPUT PORTS | 1 |
| NMEA 0183 OUTPUT PORTS | 1 |
| VIDEO INPUT PORTS | 1 BNC |
| VIDEO OUTPUT PORTS | 1 HDMI |
| WIRELESS CONNECTIVITY | Yes |
| J1939 COMPATIBLE | Yes |
What's in the Box:
- GPSMAP 1243xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- 8-pin transducer to 12-pin sounder adapter cable
- GMR 18 HD3 radome
- Mounting hardware kit
- Power cable (15 m)
- Network cable (15 m)
- Installation instructions
SKU: NVN-1003562
MPN: 010-02367-53
UPC: 753759326036
