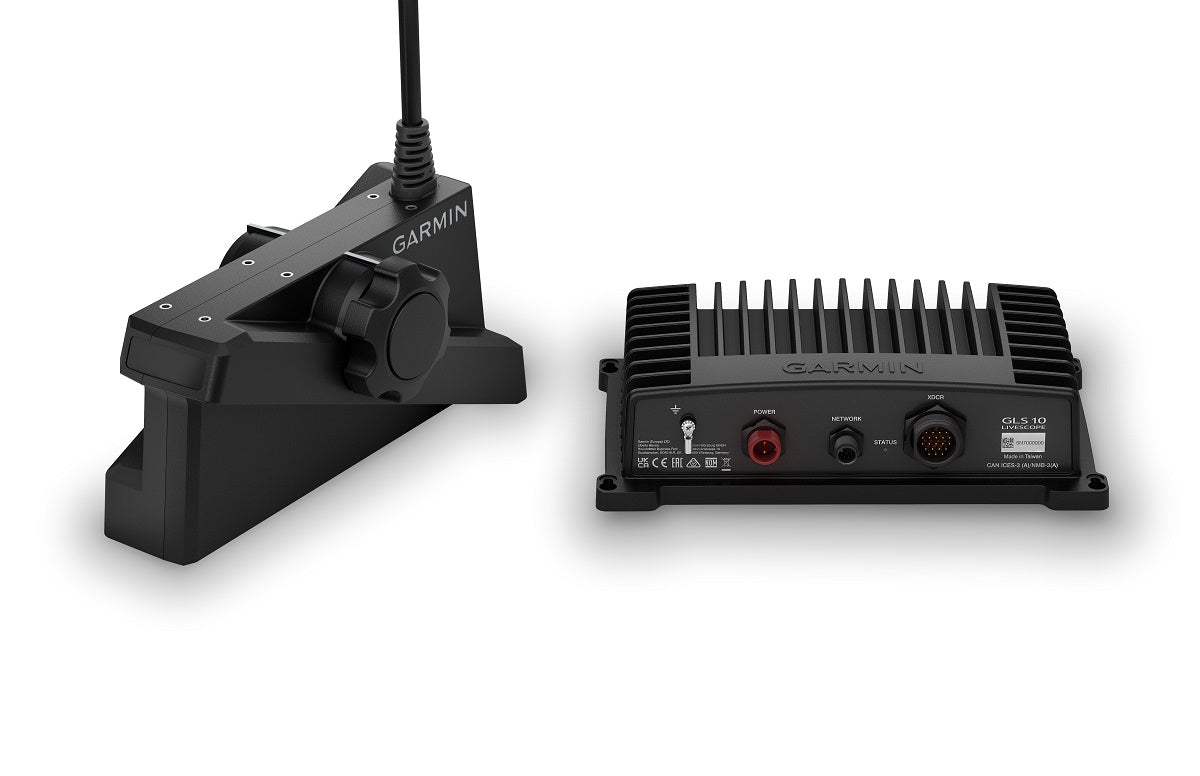

Garmin Panoptix LiveScope XR With LVS62 Transducer and GLS 10 Sonar Black Box

Unlock Real-Time Fishing Insights with Advanced Live Sonar Technology

Imagine spotting fish schools swirling around your boat or lurking hundreds of feet ahead, all in crystal-clear, live video-like detail. The Garmin LiveScope XR system elevates your angling game by delivering extended-range sonar views that reveal underwater action like never before. Perfect for serious anglers chasing bass in freshwater lakes or tackling offshore species in saltwater, this setup combines the powerful GLS 10 sonar black box with the high-performance LVS62 transducer to provide unmatched visibility and precision.

What sets this system apart is its ability to cut through murky water and rough conditions, helping you position baits exactly where fish are feeding. Whether you're trolling, casting, or drifting, the live imaging updates in real time, so you react instantly to bites and movements without guesswork.

Extended Range for Deeper Exploration

Push your sonar boundaries further with a maximum depth of 500 feet in freshwater and 350 feet in saltwater. The innovative Reverse Range Offset maximizes screen real estate for distant targets, while Compress Range lets you zoom in on nearby action without losing sight of the bigger picture. This dual-view capability means you can monitor hull-hugging baitfish and distant structures simultaneously, ideal for scouting drop-offs or weed lines from afar.

Operating across a broad frequency spectrum from 265 to 550 kHz, the system maintains sharp target separation—even at 100 feet, distinguishing objects as small as 22 inches apart. Anglers report consistently hooking more fish by precisely targeting separated schools that traditional sonar blurs together.

Versatile Viewing Modes for Every Scenario

Adapt to any fishing style with Forward, Down, and Perspective modes. Forward mode scouts ahead up to the full range, revealing fish approaching your position. Down mode peers directly beneath for vertical structure and bottom composition. Perspective mode offers a customizable overhead view, blending both for intuitive navigation.

Included mounts—a perspective mount, trolling motor barrel mount, and shaft mount—make setup straightforward on kayaks, bass boats, or center consoles. The built-in stabilization compensates for waves and boat motion, keeping images steady so you focus on fishing, not fighting the screen.

Vivid Colors and Rock-Solid Reliability

Select from seven striking color palettes like aqua, Caribbean, or lava to enhance contrast between fish, bait, and bottom. These aren't just pretty—they highlight subtle movements and thermoclines that could mean the difference between a slow day and a limit.

Rugged IPX7 waterproofing and a wide operating temperature range ensure durability in harsh marine environments. Powered by 10-32V with efficient 21W typical draw, it integrates seamlessly via Garmin Marine Network ports into your existing chartplotter ecosystem for a unified display.

Pro Tips for Maximizing Your LiveScope XR Setup

• Optimize Gain Settings: Start mid-range and tweak based on water clarity—lower in clear water to reduce noise, higher in stained conditions for better penetration.
• Mount Strategically: Position the LVS62 transducer low on the transom or trolling motor for minimal interference and optimal hull coverage.
• Layer with Chartplotter Data: Overlay sonar on nav charts to correlate live fish positions with waypoints and contours.
• Fresh vs. Salt Tweaks: Adjust range scales for saltwater's density; test Perspective mode for coastal wrecks teeming with snapper.
• Clean Regularly: Rinse after saltwater use to prevent corrosion, preserving the 20-foot transducer cable and connections.

These tweaks turn raw data into actionable intel, boosting catch rates across species like walleye, stripers, and redfish.

Technical Edge for Confident Angling

The compact GLS 10 black box (9.7" x 5.9" x 2.6") weighs just 4.3 lbs, fitting easily in tight consoles. With 500W transmit power and a wide 20° x 135° beamwidth, it paints broad swaths underwater. The 21-pin transducer connects effortlessly, backed by a 7.5A fuse and 7-inch compass-safe distance.
