Garmin Reactor 40 Autopilot For Kicker with GHC50 with Stainless Steel Tilt Tube
Garmin Reactor 40 Autopilot For Kicker with GHC50 with Stainless Steel Tilt Tube — Product description
Unlock Effortless Navigation on Your Small Outboard Boat
Imagine cruising your compact gasoline-powered vessel, rod in hand, without constantly wrestling the tiller. The Garmin Reactor 40 kicker autopilot steps in as your reliable co-pilot, designed specifically for boats with outboard motors up to 25 horsepower. Paired with the intuitive GHC 50 instrument and a robust stainless steel tilt tube, it delivers precise heading hold even when battling crosswinds, choppy waves, or strong currents. This setup frees you to focus on what matters—landing that trophy fish or simply soaking in the scenery.
Unlike basic steering aids, this system integrates advanced sensors for shadow-mode operation, meaning it learns your boat's unique handling characteristics over time. The result? Smoother course corrections and less wear on your motor, enhancing both safety and enjoyment on every outing.
How the Reactor 40 Kicker Autopilot Transforms Your Boating Experience
At its core, the Reactor 40 employs Garmin's proprietary Attitude Heading Reference System (AHRS) with a trio of axes—magnetometer, gyroscope, and accelerometer—for pinpoint accuracy. The compact course computer unit (CCU) processes this data in real-time, commanding the steering actuator to make micro-adjustments via the tilt tube integration.
- Heading Hold Mastery: Locks in your desired direction, compensating for environmental forces automatically.
- Throttle Precision: The dedicated throttle actuator lets you dial in speeds effortlessly, dropping to idle for precise maneuvers like netting fish or docking.
- Wireless Freedom: The floating handheld remote features a vibrant, sunlight-readable screen, so you can steer from anywhere on deck—perfect for trolling or multi-tasking.
- Chartplotter Sync: Link seamlessly with compatible Garmin multifunction displays for waypoint navigation and autopilot control from the helm.
For kicker setups, the stainless steel tilt tube ensures a secure, corrosion-resistant mount, adapting to your outboard's trim without compromising performance.
Perfect for Fishing Trips, Day Cruises, and Beyond
Fishermen love how it maintains steady trolling speeds, keeping lures in the strike zone hour after hour. Day sailors appreciate the route-following capability when exiting tight marinas or navigating unfamiliar waters. Even casual explorers benefit from reduced fatigue on longer jaunts, making family outings stress-free.
Boaters report up to 30% less steering effort compared to manual control, based on real-user feedback from coastal and inland waters. It's not just about convenience—it's about extending your time on the water productively.
Detailed Specifications for Informed Setup
| Component | Details |
|---|---|
| Steering Actuator | Motor side extends 4" (10.3 cm) from tilt tube end; 2.5" (6.2 cm) diameter motor; Closed length 17.5" (44.5 cm), extended 25.3" (64.4 cm) |
| Throttle Actuator | Dimensions: 6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm); Operating temp: 0° to 70°C; Water rating: IPX7 (excluding cable) |
These specs ensure durability in harsh marine environments, with NMEA 2000 connectivity for easy integration into existing networks.
Complete Kit for Quick Installation
- GHC 50 helm control display for clear status monitoring
- Course Computer Unit (CCU) and Electronic Control Unit (ECU)
- ECU power cable and ECU-to-CCU interconnect
- Steering and throttle actuators
- Floating autopilot corepack remote
- NMEA 2000 essentials: drop cable (2m), T-connectors, terminators, power cable
- Stainless steel tilt tube
- Comprehensive documentation
Everything arrives ready to mount, with straightforward wiring that most DIY boaters handle in an afternoon.
Pro Tips for Long-Lasting Performance
To maximize reliability, rinse components with fresh water after saltwater exposure and inspect cables seasonally. Calibrate the system in calm conditions for optimal AHRS accuracy—Garmin's guided process takes just minutes. Pair with a Garmin radar or sonar for all-weather confidence.
Frequently Asked Questions
What types of boats is the Garmin Reactor 40 kicker autopilot best suited for?
It's ideal for small gasoline-powered boats with outboard kicker motors up to 25 horsepower, such as fishing skiffs, pontoons, or compact cruisers.
Does this autopilot work with Garmin chartplotters?
Yes, it integrates seamlessly via NMEA 2000, allowing control of heading hold, routes, and waypoints directly from compatible Garmin chartplotters.
How does the handheld remote enhance usability?
The floating remote has a sunlight-readable display for throttle adjustments, mode changes, and steering from anywhere on the boat, even while fishing.
Is installation complicated for this kicker autopilot?
No, the kit includes all necessary components and clear instructions. Most users complete setup in a few hours with basic tools, mounting the tilt tube to the outboard.
Can it handle rough water conditions?
Absolutely—the advanced sensors provide solid heading hold against wind, waves, and current, with adaptive learning for your boat's specifics.
What maintenance does the system require?
Rinse after saltwater use, check connections periodically, and recalibrate as needed. It's built tough with IPX7 water resistance.
Does it control throttle automatically?
The throttle actuator allows manual fine-tuning via the remote, including quick drops to idle for precise handling situations.
Garmin Compact Reactor™ 40 Kicker Autopilot With GHC™ 50 Autopilot Instrument and Stainless Steel Tilt Tube
Model: 010-02794-10- This Reactor 40 kicker autopilot is the perfect companion for your small gasoline-powered boat.
- Sit back and relax. With this autopilot, you can maintain heading hold and stay on course.
- You’re not just getting an autopilot; you’re getting a convenient floating handheld remote, too.
- Easily fine-tune autopilot throttle settings with the touch of a button.
- Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.
- The GHC™ 50 autopilot instrument enhances your autopilot experien
Designed for small gasoline boats, this Reactor 40 kicker autopilot gives you the extra hand you need, so you can fish and explore paradise worry-free.
This kicker autopilot works for boats with small gasoline outboard motors up to 25 horsepower1.
Whether you’re fishing for your favorite species or just taking your sailboat out of the marina, this autopilot helps maintain heading hold and route to keep you on course — even against wind, waves or heavy current.
The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. This allows you to quickly and easily control throttle settings as well as drop to idle speeds when netting a fish or coming up to a mooring.
1See Autopilot Guide for details on supported motors and required accessories
Specifications| Steering Actuator | |
| Motor side | Extends 4" (10.3 cm) from end of tilt tube |
| Motor | 2.5" (6.2 cm) diameter |
| Overall length | Closed 17.5" (44.5 cm); Extended 25.3" (64.4 cm) |
| Throttle Actuator | |
| Dimensions | 6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm) |
| Operating temperature range | 0° to 70° C |
| Water rating | IPX7 (excluding cable) |

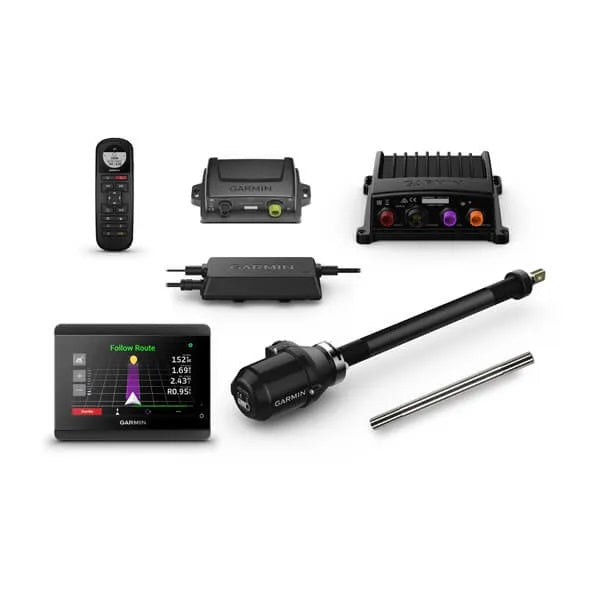

What's in the Box:
- GHC 50 helm control display
- CCU (Course computer unit)
- ECU (Electronic control unit)
- ECU power cable
- ECU to CCU interconnect cable
- Steering actuator
- Throttle actuator
- Autopilot remote
- NMEA 2000 drop cable (2 m)
- NMEA 2000 T-connectors
- Male and female terminators
- NMEA 2000 power cable
- Documentation
- Stainless steel tilt tube
SKU: NVN-1003250
MPN: 010-02794-10
UPC: 753759302948
Technical specifications
| Brand | Garmin |
| Model | Garmin Reactor 40 Autopilot For Kicker with GHC50 with Stainless Steel Tilt Tube |
| SKU / MFR# | 1003250 |
