Garmin Reactor 40 Autopilot For Volvo Penta with GHC50 Control
Garmin Reactor 40 Autopilot For Volvo Penta with GHC50 Control — Product description
Imagine gliding across open waters without constantly adjusting the helm, letting the autopilot handle the nuances of every swell and gust. For owners of Volvo Penta-equipped yachts, the Garmin Reactor 40 steer-by-wire corepack paired with the GHC 50 instrument delivers that seamless control, transforming long passages into effortless adventures. Tailored specifically for vessels with Volvo Penta inboard performance or sterndrive joystick systems, this setup integrates flawlessly, giving you confidence to explore distant horizons.
Unlock Reliable Steering with Advanced Solid-State Technology
At the heart of this system lies a sophisticated solid-state 9-axis Attitude Heading Reference System (AHRS). Unlike traditional setups reliant on finicky compasses, this gyro-stabilized unit can be installed almost anywhere on your boat—in any orientation. It slashes power draw, sharpens heading accuracy, and shrugs off magnetic interference from onboard electronics. Boaters report it holds course tighter through choppy conditions, reducing fatigue on multi-day trips.
Adaptive Response to Real-World Sea Conditions
Choppy seas and rolling swells no longer mean constant corrections. The Reactor 40 intelligently senses pitch, roll, and yaw, making micro-adjustments to keep you locked on your desired track. Whether dodging waves or cruising in beam seas, it maintains stability that feels intuitive, almost like an extra crew member who's always alert.
Effortless Setup for Quick Time on the Water
Time is precious when you're itching to launch. This autopilot streamlines commissioning and calibration into a straightforward process, often completed in under an hour with minimal tools. No more wrestling with complex sea trials—get dialed in fast and focus on what matters: the journey ahead.
Full-Boat Control at Your Fingertips
Pair it with compatible Garmin chartplotters, and autopilot commands become omnipresent. Steer from the helm, flybridge, or even your wrist via select quatix marine smartwatches or the dedicated Reactor remote. The GHC 50 instrument elevates this with a crisp display for at-a-glance monitoring, customizable modes, and intuitive touch controls that blend into your cockpit workflow.
Powerboat and Sailing Versatility
Versatile enough for power yachts or sailboats, it shines with features like heading hold for precise maneuvering, step turns for tight docking, and wind-related holds (with an optional wind sensor). Link to a Garmin chartplotter for route-following smarts and Auto Guidance+ planning tools that suggest optimal paths around hazards—always as a navigation aid, never a substitute for vigilance.
Technical Specifications Overview
| Component | Dimensions | Weight | Temperature Range | Other Key Specs |
|---|---|---|---|---|
| CCU (Course Computer Unit) | ||||
| — | 3 19/32" diameter (91.4 mm) | 5.6 oz (159 g) | 5°F to 131°F (-15°C to 55°C) | IPX7 waterproof; NMEA 2000 (9-16V, LEN 3); CCU cable 9.5 ft |
| Buzzer/Alarm | ||||
| — | 29/32" L x 1" dia (23 mm x 25 mm) | 2.4 oz (68 g) | 5°F to 131°F (-15°C to 55°C) | Cable 10 ft |
| Autopilot Gateway (Volvo IPS) | ||||
| — | 5 1/8" x 2 3/8" x 1" (130 mm x 60 mm x 25 mm) | Less than 1 oz (28 g) | — | Compact integration module |
Complete Kit for Seamless Integration
Everything you need arrives ready to install: the Reactor 40 CCU, GHC 50 helm display, Volvo IPS gateway, interconnect cable, buzzer, NMEA 2000 drop cables (2m), power cable, T-connectors, terminators, and full documentation. It's a plug-and-play foundation for your Volvo Penta setup.
Frequently Asked Questions
Is the Garmin Reactor 40 compatible with all Volvo Penta systems?
It's designed for Volvo Penta inboard performance systems and sterndrive joystick systems, ensuring seamless steer-by-wire integration.
Where can I mount the Reactor 40 CCU?
Thanks to its solid-state 9-axis AHRS, you can mount it nearly anywhere on the boat, in any orientation, without compromising performance.
Does this autopilot handle rough seas well?
Yes, it uses advanced sensors to detect and respond to pitch, roll, and sea conditions, keeping your course steady even in challenging waters.
How easy is the calibration process?
Calibration is quick and intuitive, typically taking less time than traditional autopilots, so you spend more time boating.
Can I control it from multiple locations?
Absolutely—with compatible Garmin chartplotters, remotes, or smartwatches, control your autopilot from anywhere onboard.
What advanced features does it offer for sailing?
Features like wind hold, tack/jibe automation (with wind sensor), heading hold, and integration with Auto Guidance+ for route planning.
Is it suitable for both powerboats and sailboats?
Yes, it supports powerboat maneuvers like step turns and sailing-specific options when connected to Garmin chartplotters.
Garmin Reactor™ 40 Steer-by-wire Corepack for Volvo-Penta® With GHC™ 50 Autopilot Instrument
Model: 010-02794-06- You have a boat with a Volvo Penta system; this Reactor 40 corepack is the perfect companion.
- Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.c
- Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
- You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.
- Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.
- The GHC™ 50 autopilot instrument enhances your autopilot experien
Designed for yachts with a Volvo Penta system, this Reactor 40 autopilot steer-by-wire corepack gives you the extra hand you need, so you can explore paradise worry-free.
This corepack works with vessels that have Volvo Penta inboard performance systems and sterndrive joystick systems.
With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.
Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.
All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.
Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).
When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features1.
1 Auto Guidance is for planning purposes only and does not replace safe navigation operations
Specifications| CCU Specifications | |
| Dimensions | 3 19/32"" diameter (91.4 mm) |
| Weight | 5.6 oz (159 g) |
| Temperature range | From 5°F to 131°F (from -15°C to 55°C) |
| Case material | Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards |
| CCU cable length | 9.5 ft (3 m) |
| NMEA 2000 power input | 9-16V |
| NMEA 2000 LEN | 3 (150 Ma) |
| Buzzer/Alarm Specifications | |
| Dimensions (L Diameter) | 29/32"" 1"" (23 mm 25 mm) |
| Weight | 2.4 oz (68 g) |
| Temperature range | from 5°F to 131°F (from -15°C to 55°C) |
| Cable length | 10 ft (3.0 m) |
| Autopilot Gateway Specifications | |
| Dimensions (L Diameter) | 5 1/8"" 2 3/8"" x 1"" (130 mm 60 mm x 25 mm) |
| Weight | Less than 1 oz (28 g) |

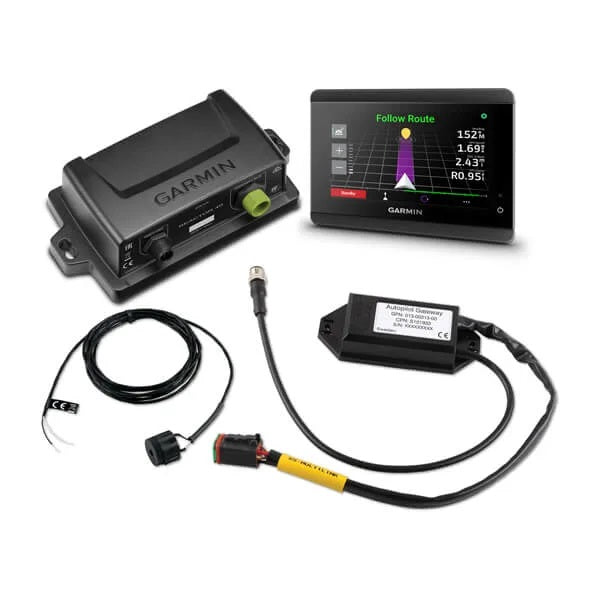

What's in the Box:
- Reactor 40 CCU (Course Computer Unit)
- GHC™ 50 helm control display
- Volvo IPS gateway
- Interconnect cable
- Buzzer
- NMEA 2000® drop cables (2 meters)
- NMEA 2000 power cable
- NMEA 2000 T-connectors
- Male and female terminators
- Documentation
SKU: NVN-1003246
MPN: 010-02794-06
UPC: 753759302900
Technical specifications
| Brand | Garmin |
| Model | Garmin Reactor 40 Autopilot For Volvo Penta with GHC50 Control |
| SKU / MFR# | 1003246 |
