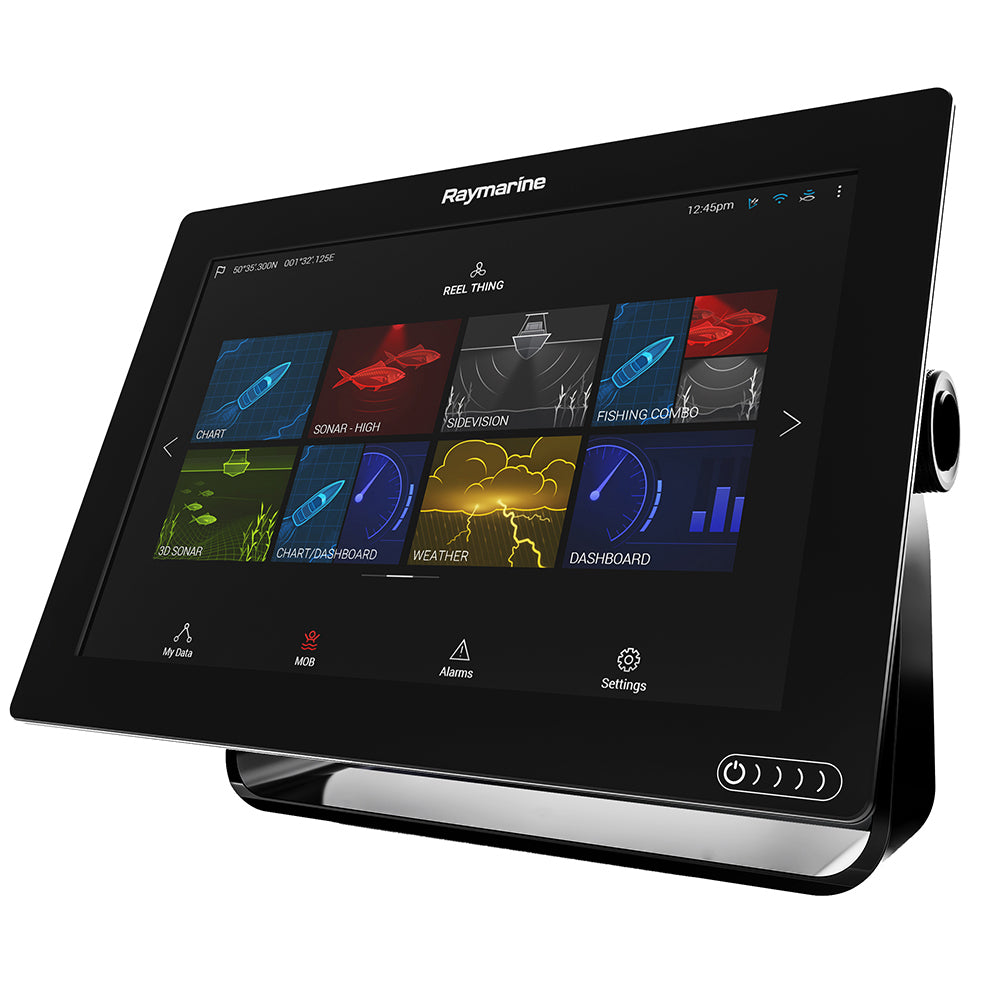

Raymarine Axiom 12 RV MFD w/LightHouse North America Chart - No Transducer
Raymarine Axiom 12 RV MFD w/LightHouse North America Chart - No Transducer — Product description
Transform Your Boating Adventures with Advanced Marine Navigation
Picture this: you're out on the water, scanning for the perfect fishing spot or navigating tricky coastal waters under changing conditions. The Raymarine Axiom 12 RV delivers that edge with its stunning 12-inch all-glass touchscreen, blending rugged durability with intuitive controls. Powered by a quad-core processor and the responsive LightHouse 3 operating system, it handles complex tasks effortlessly, from real-time charting to sonar sweeps, ensuring you stay ahead of the game.
What sets it apart is the built-in RealVision 3D sonar, offering a lifelike underwater view that reveals fish-holding structures and targets with pinpoint clarity. No transducer included means you can pair it with your preferred RV model for customized performance, whether chasing trophy bass in shallow bays or tracking pelagic species offshore.
Unmatched Sonar Performance for Serious Anglers
Dive deeper into the water column with powerful 4-channel sonar capabilities. RealVision 3D combines CHIRP DownVision, SideVision, high-frequency CHIRP, and traditional 600W (50/200 kHz) sonar for versatile scanning. The wide-spectrum CHIRP transmits across 60 frequencies, producing the sharpest images and best fish separation you've likely seen.
- Gyro-stabilized 3D imagery: Boat motion won't blur your view—stabilization keeps scans steady for accurate structure and fish ID.
- Life-like clarity: Distinguish baitfish schools from keepers effortlessly, maximizing your catch rates.
- High-res detail: Spot wrecks, drop-offs, and submerged timber that traditional 2D sonar misses.
Anglers report hooking more fish faster thanks to these tools, turning casual outings into productive hunts.
Seamless Expansion for a Fully Integrated Helm
RayNet Ethernet and NMEA2000 networking let you scale up effortlessly. Link multiple displays, add Quantum CHIRP radar for clutter-free short- and long-range scans, or integrate Evolution autopilots for hands-free piloting.
- Thermal night vision ready: Pair with compact FLIR cameras for safe nighttime ops and spotting unlit vessels.
- Audio and video hub: Control NMEA2000 stereos and monitor IP cameras simultaneously.
- Wireless freedom: Built-in Wi-Fi and Bluetooth sync with mobile apps for remote control, waypoint sharing, and updates on the go.
Build a networked system that grows with your boat, from basic nav to pro-level setup.
Built Tough for Real-World Marine Use
Optically bonded glass ensures vivid colors and sunlight readability, while IPX6/IPX7 waterproofing shrugs off spray and submersion. Flexible mounting—flush, surface, trunnion, or bracket—fits any console. Operating from -13°F to 131°F, it's ready for extreme climates.
Users praise the buttonless, swipe-to-power design for its modern feel and easy cleaning after salty sprays.
Technical Specifications at a Glance
| Feature | Details |
|---|---|
| Display | 12-inch optically bonded LCD, 1280 x 800 resolution |
| Sonar | RealVision 3D built-in, 4-channel support |
| GPS | 10Hz 72-channel GPS/GLONASS |
| Networking | RayNet Ethernet, NMEA2000 |
| Wireless | Wi-Fi, Bluetooth |
| Power | 12/24V DC (10.8-31.2V) |
| Mounting | Flush, surface, trunnion, bracket |
Everything You Need to Get Started
Kit includes the MFD with trunnion bracket, suncover, mounting hardware, power/NMEA2000 cable, and the LightHouse North America microSD chart card. Simple setup means more time on the water.
Frequently Asked Questions
Does the Raymarine Axiom 12 RV come with a transducer?
No, this model ships without a transducer, allowing you to select the RealVision 3D model that best fits your vessel and fishing style.
What charts are preloaded on this MFD?
It includes LightHouse North America charts with coverage for lakes, coastal waters, and tide stations for comprehensive regional navigation.
Can I add radar to the Axiom 12 RV?
Yes, it's fully compatible with Quantum CHIRP radar via RayNet Ethernet for enhanced target detection in all conditions.
Is the display suitable for bright sunlight?
Absolutely—the optically bonded all-glass screen provides superior contrast, brighter colors, and excellent visibility even in direct sun.
How does RealVision 3D sonar improve fishing?
It delivers lifelike 3D images of the bottom, structures, and fish, with gyro stabilization for steady views despite boat roll or pitch.
What connectivity options does it support?
RayNet Ethernet, NMEA2000, Wi-Fi, and Bluetooth enable networking with autopilots, cameras, audio systems, and mobile apps.
Can multiple units be networked together?
Yes, connect several Axiom displays via Ethernet for shared data across your helm station.
Axiom 12 RV MFD with LightHouse North America Chart - No Transducer
The Axiom™ is a powerful multifunction navigation system from Raymarine. The Axiom 12 RV features a 12-inch rugged all-glass touchscreen display and is powered by Raymarine's powerful LightHouse 3 operating system and a supercharged quad-core processor. Axiom 12 RV has built-in RealVision 3D™ sonar. Add the RealVision 3D transducer of your choice to make a complete system.
Axiom 12 RV is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allow connection to the latest Raymarine apps for tablets and smartphones.
The Axiom 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, LightHouse North America Chart, and installation instructions.
Features:
- Rugged All-Glass touch screen display delivers a big-screen experience in a small footprint. Optically bonded for brighter colors, sharper contrast, and sunlight visibility
- LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
- RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
- Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High-Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
- Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
- Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position and heading updates and smooth on-screen tracking
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more
- Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
- Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no-compromise performance on long and extremely short range
- Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
- Built-in Wi-Fi lets you stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app
SKU: NVN-90019
MPN: E70369-00-102
UPC:
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom 12 RV MFD w/LightHouse North America Chart - No Transducer |
| SKU / MFR# | 90019 |
