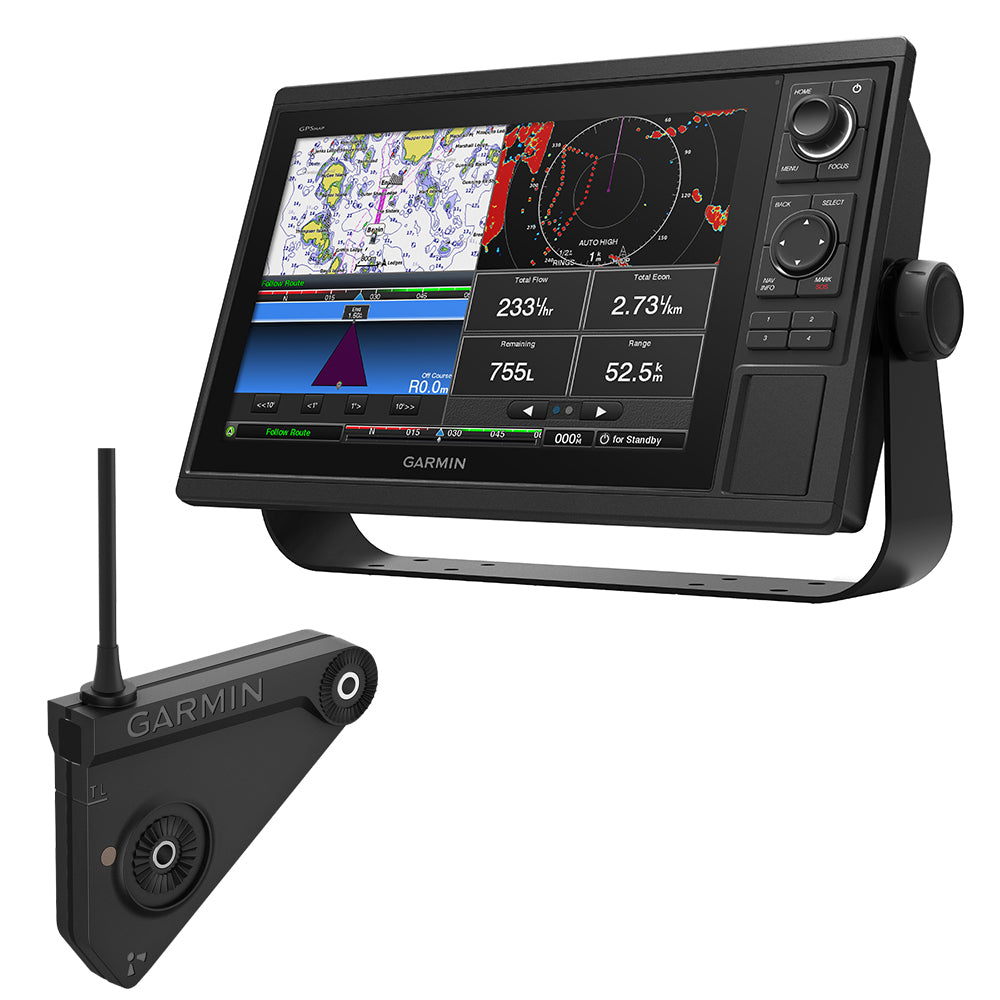

Garmin GPSMAP 1222 Keyed Networking Chartplotter Non-Touch Panoptix Livescope Bundle

Discover Unmatched Precision on the Water with the GPSMAP 1222 and Panoptix Livescope Bundle

Imagine navigating choppy seas or tracking elusive fish with crystal-clear, real-time visuals that respond instantly to your every move. The Garmin GPSMAP 1222 keyed networking chartplotter paired with the Panoptix Livescope system delivers exactly that—a powerhouse combo for serious boaters, anglers, and sailors. This non-touch setup prioritizes rugged reliability with a keypad interface that's intuitive even with wet hands or gloves, making it ideal for demanding marine environments.

What sets this bundle apart? It's not just about charts and sonar; it's a seamless ecosystem that connects your entire boating setup. From sharing radar data across multiple screens to spotting baitfish schools live as they dart around your hull, every feature enhances safety, efficiency, and excitement on the water.

Effortless Navigation with Super-Responsive GPS

At the heart of the GPSMAP 1222 lies a high-sensitivity 10 Hz GPS/GLONASS receiver that updates your position and heading 10 times per second. This means smoother tracks on screen, pinpoint accuracy for dropping waypoints, and effortless returns to your favorite fishing spots or anchorages. Boaters report it feels like the unit anticipates your boat's motion, reducing lag during tight maneuvers or high-speed runs.

Expand your horizons with optional premium charts like BlueChart g2 Vision HD. Auto Guidance technology plots the safest, most efficient paths around obstacles, factoring in your vessel's draft and beam. Dual SD card slots make swapping maps a breeze, whether you're exploring coastal waters or inland lakes.

Seamless Connectivity: Build Your Onboard Network

Go beyond standalone operation. This chartplotter shines in multi-unit setups via the Garmin Marine Network, sharing sonar returns, user data, radar overlays, and even IP camera feeds. Add NMEA 2000 and 0183 compatibility for effortless integration with autopilots, engine sensors, VHF radios, and AIS systems.

Built-in ANT+ opens doors to wireless accessories like the quatix watch for helm notifications or gWind transducers for precise sail trim data. And with Wi-Fi onboard, the ActiveCaptain app becomes your command center—sync routes, update software remotely, access Quickdraw Contours community data, and receive smart alerts without ever leaving the deck.

SailAssist: Gain the Edge in Racing and Cruising

For sailors, the dedicated SailAssist page is a game-changer. Visualize your virtual starting line, calculate laylines, track time-to-burn, and sync race timers across networked devices. Enhanced wind roses, set/drift indicators, and true/apparent wind overlays help optimize your course for maximum VMG (velocity made good).

Even casual cruisers benefit from GPX import compatibility, letting you transfer waypoints from legacy devices or handhelds. No more re-entering coordinates—hit the water running with familiar marks.

Panoptix Livescope: Revolutionize Your Fishing Game

Enter the future of sonar with Panoptix Livescope—a live scanning system that paints fish, structure, and your lure in real-time, up to 200 feet away or below. Unlike traditional sonar's historical snapshots, this delivers video-like clarity whether trolling, anchored, or drifting.

The LVS32 transducer flips effortlessly between Forward and Down modes. Point it ahead to scout structure and gamefish approaching your position, or straight down for precision jigging over reefs. AHRS stabilization compensates for boat roll and pitch, keeping images rock-steady in swells.

Anglers love how it reveals subtle details: the flare of a walleye's tail, bass hugging timber, or bait balls scattering. Pair it with traditional CHIRP for historical context, and you've got the ultimate fish-finding arsenal. Installation? Plug-and-play via Garmin Marine Network—no complex wiring hassles.

Real-World Tips for Maximizing Your Bundle

• Mounting the 12-inch Display: Its bright color screen excels in direct sunlight. Opt for flush mounting to save space on consoles, and program hotkeys for one-touch access to sonar or charts.
• Livescope Transducer Placement: Stern-mount for forward/down versatility. Experiment with cable routing to avoid prop wash interference, and calibrate AHRS for your hull type.
• Power Management: Efficient draw means it plays nice with battery banks. Always fuse properly and monitor via NMEA sensors.
• Software Savvy: Use ActiveCaptain for crowd-sourced contours—download lake data pre-trip for instant high-def bottom maps.
• Maintenance Hacks: Rinse transducers after saltwater use. Update firmware seasonally for new features like improved target separation.

Why Boaters Choose This Bundle Over Others

In a sea of touchscreen units, the keyed interface stands out for tactile feedback in rough conditions—no smudges or accidental zooms. The 12-inch canvas strikes a perfect balance: large enough for split-screen multitasking (charts + sonar + radar), yet compact for smaller vessels. Combined with Livescope's game-changing live views, it's a favorite among tournament pros and weekend warriors alike.

Durability shines through IPX7 water resistance and wide temp tolerance, built to handle the harshest outings. Whether racing offshore or ice fishing (with proper setup), this system adapts to your passion.

---

Frequently Asked Questions

What makes the GPSMAP 1222's interface user-friendly for boating?

The keypad and multifunction knob provide precise control, even with gloves or in wet conditions, outperforming touchscreens in rugged use.

How does Panoptix Livescope differ from traditional fish finders?

It offers live, real-time scanning sonar images of fish and structure up to 200 feet, viewable stationary or moving, with forward and down modes in one transducer.

Can this chartplotter connect to other Garmin devices?

Yes, via Garmin Marine Network for sharing data, plus NMEA 2000/0183, ANT+, and Wi-Fi for ActiveCaptain app integration.

Is SailAssist suitable for both racing and casual sailing?

Absolutely—features like laylines, wind roses, and race timers benefit racers, while set/drift and course data aid cruisers.

What's the maximum depth for Livescope sonar?

Up to 200 feet in both Down and Forward modes, with 500W power and frequencies from 530-1,100 kHz for sharp detail.

Does the bundle support custom mapping?

Yes, dual SD slots handle BlueChart g2 Vision HD and Quickdraw Contours, plus GPX imports from other GPS units.

How stable are Livescope images in rough water?

AHRS technology stabilizes views against boat motion, ensuring clear imagery even in choppy conditions.

GPSMAP 1222 Keyed Networking Chartplotter Non-Touch Panoptix Livescope Bundle

12-inch Chartplotter Is All-in-1 Solution

• 12-inch color display with keypad interface and multifunction control knob
• High-sensitivity internal 10 Hz GPS and GLONASS receiver
• Fully network capable for Garmin Marine Network and NMEA 2000 plus NMEA 0183 support
• Supports optional BlueChart g2 Vision HD charts for Auto Guidance and other premium navigation features

GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built-in ANT Connectivity

Enjoy built-in ANT wireless connectivity directly to quatix marine watch, Garmin Nautix in-view display, gWind Wireless 2 transducer, GNX Wind marine instrument and wireless remote controls.

The Ultimate Connected Boating App

Built-in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you'll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints and finding your way back to them quick and easy.

Upgrade to Our Best Maps on the Water

Two SD card slots provide expandable memory for accessory map purchases, such as LakeV HD, LakeV HD Ultra, BlueChart g2 HD or BlueChart g2 Vision HD, which adds Garmin patented Auto Guidance and other great features.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product or on a Garmin handheld device it's easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

Panoptix LiveScope System

We Took Scanning Sonar and Made It Panoptix

Features:

• See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary
• Easily adjust the transducer to fit your fishing techniques; point forward to see around your boat, or point down to see directly below your boat
• See incredibly sharp real-time scanning sonar images up to 200' down and away
• Attitude Heading Reference System (AHRS) stabilizes sonar view on chartplotter screen, even in rough conditions
• Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter

Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn't need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!

Two Modes in One Transducer

You get both LiveScope Down and LiveScope Forward modes in one transducer. It's easy to adjust the transducer mode to fit your fishing techniques; use LiveScope Forward to see remarkably clear images of structure and swimming fish around your boat, and use LiveScope Down to see directly below your boat. The view automatically updates on your compatible Garmin chartplotter. AHRS stabilization keeps your sonar view steady, even in rough conditions.

Panoptix LiveScope Down

LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boatup to 200' even while your boat is stationary.

Panoptix LiveScope Forward

LiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You're looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat up to 200' even while your boat is stationary.

The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter. Use the transducer as a supplemental traditional and ClearV sonar source to see a historical representation of structure and fish below your boat.

Specifications:

• Physical dimensions:
• GLS 10 sonar black box: 9.6 x 5.9 x 2.6 (24.5 x 14.9 x 6.5 cm);
• LVS32 transducer: 5.4 x 3.8 x 1.8 (13.7 x 9.7 x 4.6 cm)
• Weight:
• GLS 10 sonar black box: 4.3 lbs (2.0 kg);
• LVS32 trasnducer: 1.9 lbs (0.9 kg)
• Water rating:   IPX7
• Garmin Marine Network ports: 1 (small connector)
• Temperature range:  Operating: -15 C to 70 C; Non-operating: -40 C to 85 C

Sonar Features & Specifications

• Frequencies supported: 530 - 1,100 kHz
• Transmit power: 500W
• Maximum depth: Down and Forward: 200' (61.0M)

Electrical

• Power input: 10-32 V
• Power usage:  21 W typical, 58 W max
• Fuse: 7.5 A
