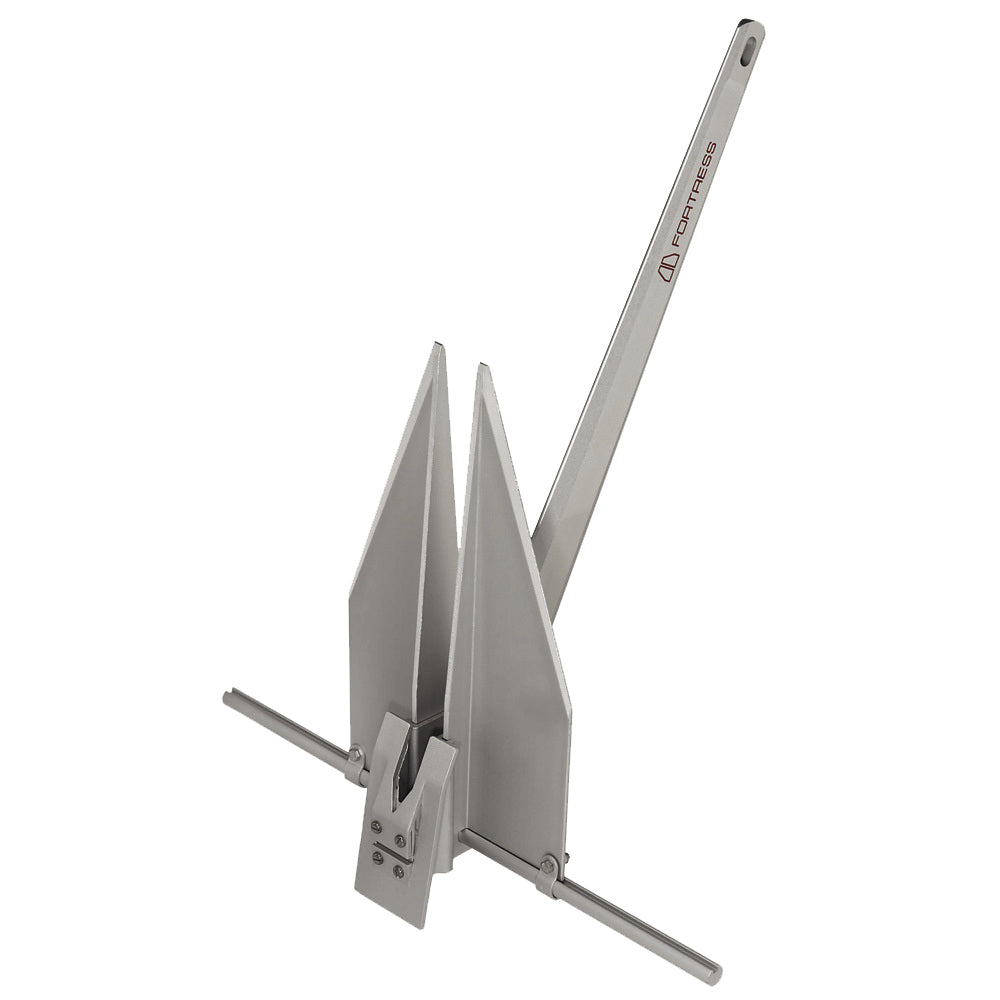

Fortress G-85 42lb Guardian Anchor f/54'-62' Boats

Guardian anchors benefit from years of Fortress research and development, offering excellent quality, performance, and economy. These anchors are manufactured from the same corrosion-resistant, high-tensile aluminum magnesium alloy as Fortress, which makes them stronger and lighter than competitive steel anchors. With Guardian anchors, several Fortress machining steps and extra features, such as anodizing and adjustable fluke angles, are eliminated. The Guardian Anchor is limited to one, single, 32 Degree angle, which will work for most common sea bottoms. The result is a high-performance anchor that is engineered for fast setting and strong holding power, and a very affordable alternative to those heavy, rust-prone steel anchors. As strong as steel, but only half the weight, Guardian anchors are second only to Fortress FX model in holding power tests. They make an excellent spare or storm anchor for your boat or yacht.

Fortress Anchor G85 Attributes

• Style: Fluke
• Holding Strength: Holds Up To 62 Feet Length Boat
• Weight (LB): 42 Pound
• Material: Aluminum/ Magnesium Alloy
• Width: 39 Inch
• Height: 48 Inch
• With Shackle: No
• With Chain: No

Fortress Anchor G85 Features & Benefits

• Fortress ® High-Tech Aluminum Alloy
• Rust-Proof And Non-Magnetic Materials
• Easily Assembles And Disassembles For Convenient Storage
• No Failing Welded Pieces
• Easy To Manage Weight
• Offers Excellent Quality, Performance And Economy
• Made In USA
• Limited Lifetime Warranty

G-85 42lb Guardian Anchor for 54'-62' Boats

Boat size recommendations are for boats of average windage and proportions in 30 knots of wind, average bottom conditions, and moderate protection from open seas. Remember that the loads in 42 knots of wind are twice as much as in 30 knots.

Use three-strand nylon rope, 6-12 ft (2-4 m) of chain and a minimum of 5:1 scope. Also, a minimum of 6 ft (2 m) of chain should be used for every 25 ft (8 m) of water depth. For storm conditions use an anchor one or two sizes larger.

Specifications:

• Boat Length: 54-62ft/16-19m

• Weight: 42lbs/19kg

• Holding Power: 32° (Hard Sand): 13,875lbs/6,294kg

• Holding Power: 32° (Soft Mud): 2,775lbs/1,259kg

• Shank: 48"/122cm

• Fluke: 28"/71cm

• Stock: 39"/99cm

• Proof Coil Chain: 1/2"/13mm

• Nylon Rope: 7/8"/22mm

• Shackle Size: 51/2"/13mm

*Note: Hard sand holding power figures above represent loads actually achieved on production Fortress and Guardian anchors under controlled horizontal pull conditions without dragging or resulting in disabling structural deformation.

Thanks to years of research and development of Fortress Anchor, Guardian has excellent quality, performance and economy. The guardian is made of the same high tensile strength,...
SKU: NVN-55854
MPN: G-85
UPC: 647124340850
