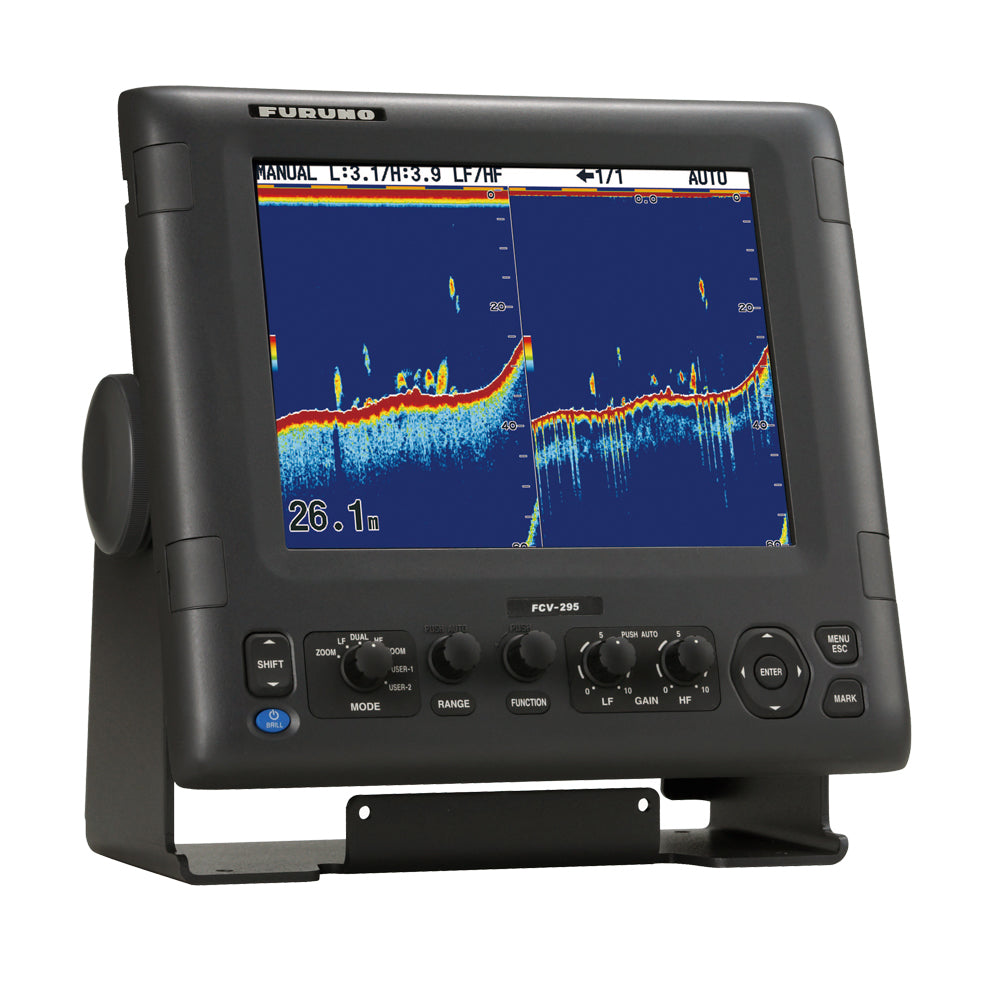

Furuno FCV-295 10.4" Color Digital Sounder Fish Finder

The Furuno FCV-295 is Furuno's professional 10.4 inch color digital sounder - the unit Furuno builds specifically for commercial fishing operations, charter captains running serious party boats, and professional sportfishing operations where the depth sounder is a primary production tool, not just a fish-spotting toy. The FCV-295 sits clearly above the consumer recreational fish finder category - both in features and in price - and delivers commercial-grade signal processing and display quality.

What separates a professional sounder from a recreational fish finder. Recreational fish finders are built for casual angling: fixed dual-frequency operation (typically 50/200 or 83/200 kHz), 500W to 1kW peak power, automatic gain and depth ranging with limited user control, basic display modes, and electronics optimized for showing fish arches that anglers want to see. Professional sounders are built for finding and identifying fish for commercial harvest: variable frequency selection across a wide range (28-200 kHz for the FCV-295), 1-3 kW selectable power (higher power penetrates deeper and through more thermocline), advanced signal processing that distinguishes individual species and size classes, post-capture gain manipulation that lets you re-analyze data, and display modes oriented toward fish quantification and bottom-type classification rather than just spotting bait clouds.

The Furuno Free Synthesizer (FFS) transceiver. The FFS is the defining feature of the FCV-295. Conventional sounders run two fixed frequencies determined by the transducer (typically 50 kHz and 200 kHz). The FFS lets the operator select ANY two frequencies in the 28-200 kHz range. Why this matters: different fish species, water conditions, and bottom types reflect different frequencies differently. Low frequencies (28-50 kHz) penetrate deep water but show large targets only. Mid frequencies (50-100 kHz) balance depth and resolution well for general offshore fishing. High frequencies (100-200 kHz) deliver fine detail and individual-fish resolution but only at shallower depths. The FFS lets you tune the sounder to the conditions and target species rather than accepting the fixed frequencies of a conventional unit. With the optional Furuno 82B-35R wideband transducer, you can select any operating frequency from 66 to 109 kHz - a particularly useful range for general offshore work, and useful for avoiding interference when other boats nearby are running similar fish finders on the same frequency.

1, 2, or 3 kilowatt selectable transmit power. Conventional consumer fish finders run 500W to 1 kW peak power. The FCV-295 lets the operator select 1, 2, or 3 kW transmit power based on conditions. Higher power penetrates deeper through thermoclines, plankton clouds, and other signal-attenuating water conditions. Lower power reduces interference between adjacent boats and saves battery on smaller vessels. The 3 kW setting on the FCV-295 reaches commercial-grade depths (1000+ ft on appropriate hard bottom) that consumer units physically cannot match regardless of how good their signal processing is - peak transmit power is the dominant factor for absolute depth capability.

Furuno Digital Filter (FDF). The FDF is Furuno's proprietary signal processing that optimizes receive gain dynamically to deliver highly defined images of underwater conditions. Practical effect: the FCV-295 can clearly show individual target fish hugging the seabed where conventional sounders smear them into one indistinguishable bottom return. The FDF also eliminates noise from plankton clouds, thermocline turbulence, propeller cavitation, and electrical interference - delivering sharp, clean returns on actual fish and structure without the noise snow that plagues lower-end sounders. This is the feature that justifies the FCV-295's price for commercial users - the ability to consistently identify what's actually fish vs what's noise translates directly to harvest decisions.

Post-processing gain control. Unique to professional sounders - the FCV-295 lets you adjust gain on the data already displayed on screen, not just incoming returns. So if you spotted a marginal echo a few moments ago that you weren't sure about, you can scroll back through the on-screen history and increase gain to see if the echo was a real fish or noise. Recreational fish finders only apply gain to new returns as they come in - any data already drawn on screen is fixed. The post-processing gain feature on the FCV-295 lets you re-analyze captured data, which is critical when you're trying to interpret what you just passed over.

White Edge function. The White Edge function traces the bottom contour with a thin white line on the display, making bottom topography immediately visible without needing to mentally separate bottom from fish returns. Useful for identifying drop-offs, ledges, humps, and bottom transitions where fish hold. The line is overlaid on the standard color echo display and can be toggled off when not needed.

Display - bonded fogging-free 10.4 inch LCD. The display is the same bonded-LCD construction Furuno uses on their commercial-grade radar and chartplotter units - the LCD is bonded directly to the protective glass with no air gap, which eliminates internal fogging in temperature transitions and dramatically improves direct-sunlight readability. 640x480 pixel resolution at 450 cd/m² brightness. Echo display in 8, 16, or 64 colors selectable - higher color count gives finer return-strength discrimination on critical work, lower color count is easier to interpret at a glance during normal operation.

Display modes. Zoom (magnify a depth range), Bottom Lock (track the bottom regardless of depth changes), A-Scope (real-time vertical echo profile for size estimation), Split Screen (two frequencies displayed side-by-side simultaneously). All controlled via the dedicated keypad - intentionally not touchscreen because touchscreen doesn't work reliably with wet hands, gloves, or in heavy rain on commercial vessels.

Faster transmission rate. The FCV-295's transmission rate is 30%+ faster than conventional sounders, with auto-transmission rate adjustment that increases rate in shallow water (for detailed shallow bottom mapping) and decreases rate in deep water (for power efficiency and to allow returns to come back before the next pulse fires). The faster transmission rate at all depths translates directly to more data per minute and finer detail on whatever's underwater.

Physical specs. 12.2 inches wide x 11.2 inches tall, 7 kg (15.4 lb). Flush mount design with cutout dimensions per the install template. 12 or 24 VDC operation, 1.3-2.6 amps depending on transmit power setting. Marine-rated for installation in any cabin or pilothouse helm location.

Transducer NOT included. The FCV-295 is sold as a display/processor unit only - the transducer must be specified and purchased separately based on your installation. Furuno offers a wide range of compatible transducers for different operating conditions: thru-hull installations for deep-water commercial work, transom mounts for smaller vessels, and the 82B-35R wideband transducer that takes full advantage of the FFS frequency selection capability. Budget another $500-2500 for the appropriate transducer depending on your specific install requirements.

Warranty and support. 2-year limited Furuno warranty on parts and workmanship. Per Furuno's professional product policy, this unit may not be returned to NVN Marine after purchase - all warranty service and technical support is handled directly through Furuno's commercial dealer network. Furuno has been the dominant brand in commercial marine sounder technology for decades and their service support is well-established globally.
