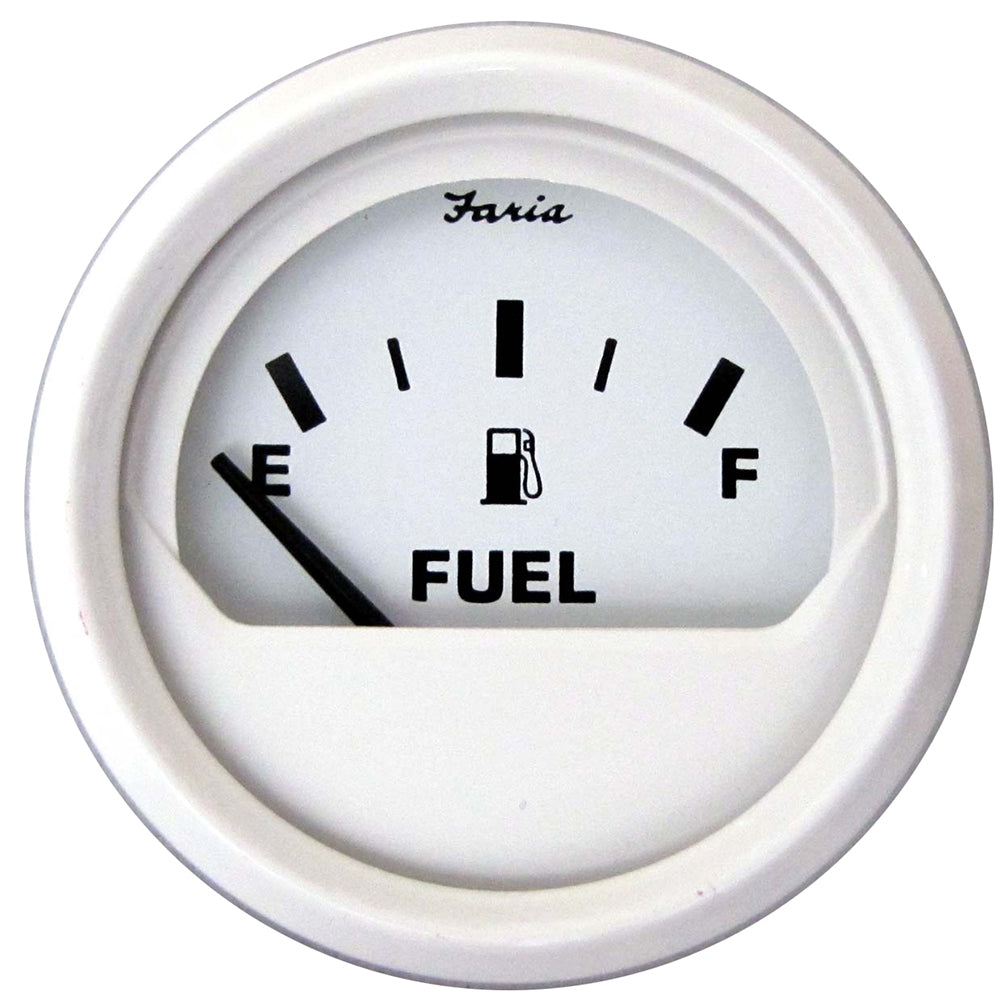

Faria Dress White 2" Fuel Level Gauge (Metric)
Faria Dress White 2" Fuel Level Gauge (Metric) — Product description
2" Fuel Level Gauge (E-1/2-F)
Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens.
Fuel Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...
As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.
2" - Hole Size: 2.0625" (53mm)
Specifications:
- 10 to 180 OHMS
- Anti-scratch glass lens
- 12 VDC negative ground
- Can be adapted for 24 VDC systems
Factory P/N GP9722
*Sold as an Individual
**Gauge Cover not Included
Dress 2 inch white dial/white aluminum frame instrument panel mounting metric fuel level gauge (13117), provided by Faria Beede Instruments, measurement limit: E-1 / 2-F.
SKU: NVN-80145
MPN: 13117
UPC: 759266131170
Technical specifications
| Brand | Faria Beede Instruments |
| Model | Faria Dress White 2" Fuel Level Gauge (Metric) |
| SKU / MFR# | 80145 |
