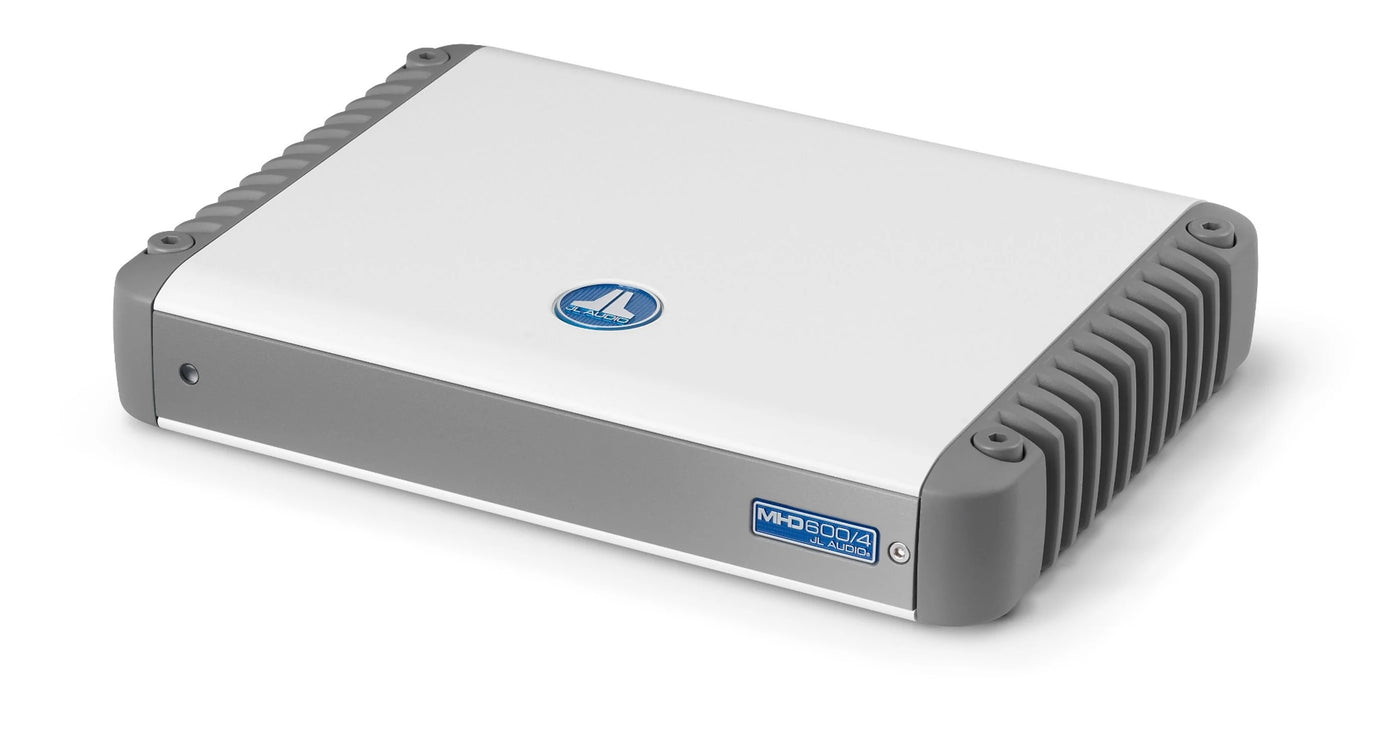

JL Audio MHD Marine Amplifier 4-Channel Full-Range 600 Watts 12v

JL Audio MHD Marine Amplifier 4-Channel Full-Range 600 Watts 12v

98224

Model: MHD600/4

4-Channel Class D Marine Full-Range Amplifier, 150 W x 4 @ 1.5-4 ohms

This compact, multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.

When using the MHD750/1 to drive a subwoofer system, the MHD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

USA Limited Warranty: Two (2) years from the original date of purchase

Specifications

Rated Continuous (RMS) Power @ 14.4 V
@ 4 ohms	150 W RMS x 4
@ 3 ohms	150 W RMS x 4
@ 2 ohms	150 W RMS x 4
@ 1.5 ohms	150 W RMS x 4
Bridged @ 8 ohms	300 W RMS x 2
Bridged @ 4 ohms	300 W RMS x 2
Rated Continuous (RMS) Power @ 12.5 V
@ 4 ohms	150 W RMS x 4
@ 3 ohms	150 W RMS x 4
@ 2 ohms	150 W RMS x 4
@ 1.5 ohms	150 W RMS x 4
Bridged @ 8 ohms	300 W RMS x 2
Bridged @ 4 ohms	300 W RMS x 2
General Specifications
Frequency Response	6 Hz - 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power	>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ohms	>300 / 50 Hz
Damping Factor @ 2 ohms	>150 / 50 Hz
THD+N @ Rated Power	<0.03% @ 4 ohms per Ch.
Input Voltage Range @ RCA Inputs	Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
Min.Copper Power / Ground Wire Gauge	4 AWG wire
Fuse Rating	50 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Mode(s)	Low-Pass or High-Pass
Filter Slope(s)	12/24 dB/octave
Filter Frequency Range	50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers	Yes
Filter Defeat Function	Yes
Remote Level Control	Optional (HD-RLC)
Remote Level Modes	2 or All Channels
Channel Input Mode Switch	Yes (2/4 ch.)
Pass-Through Preamp Output	Buffered
Source Channel Selection for PreOuts	Yes
Physical Specifications
Height	1.93 in / 49 mm
Width	10.74 in / 273 mm
Depth	7.85 in / 199 mm

SKU: NVN-1003939
MPN: 010-03319-00
UPC: 699440982245
