JL Audio XDM Marine Amplifier 6-Channel Full-Range 600 Watt 12v

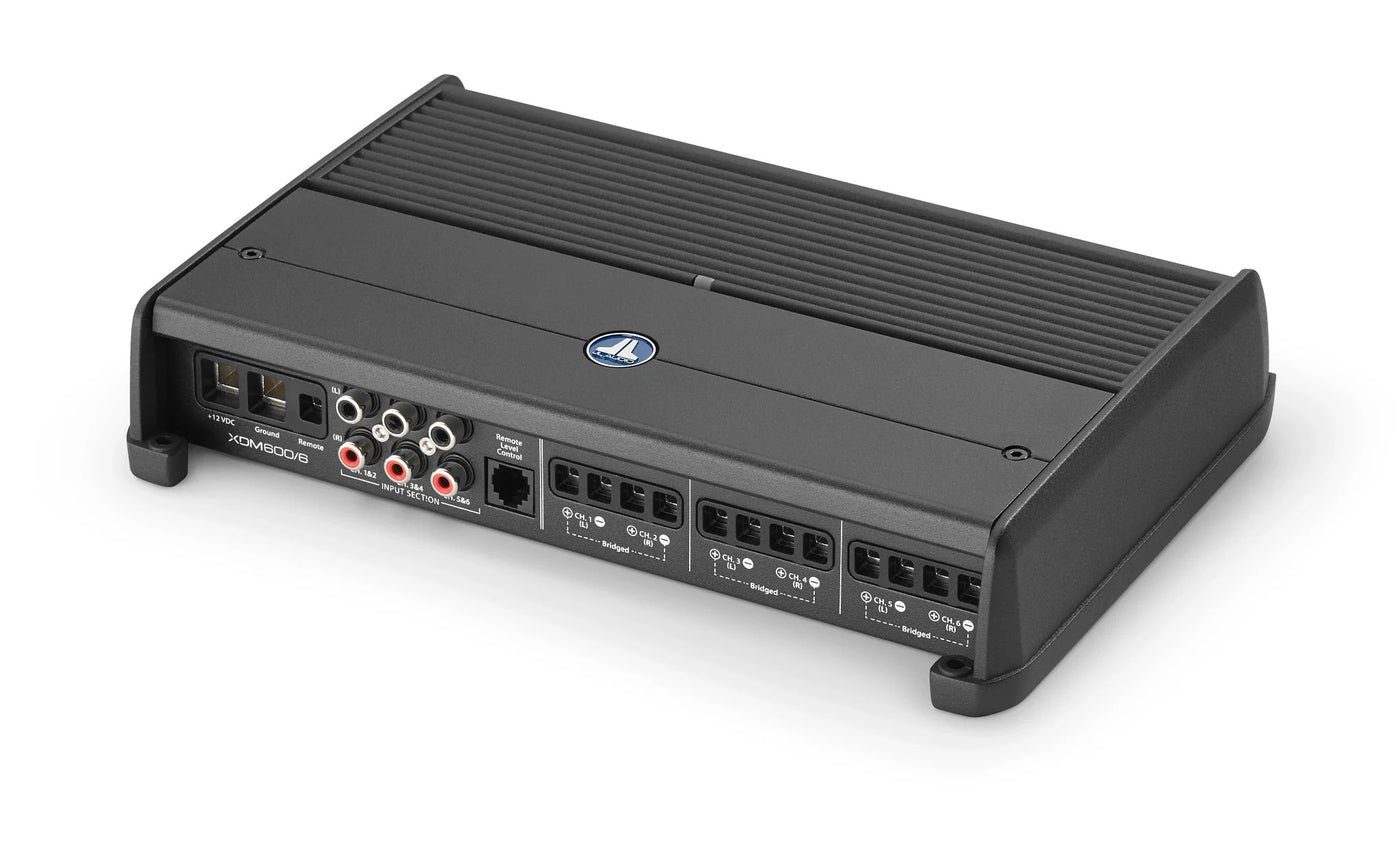

JL Audio XDM600/6 6 Ch. Class D, Full-Range Car/Marine Amplifier, 600 W

Model: XDM600/6

The incredibly flexible XDM600/6 packs a serious full-range wallop and delivers a stunning 100 watts to each of its six channels into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM600/6 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

With the XDM600/6, you have plenty of great use options. Configure it as a six-channel satellite amplifier with 75 W x 6 @ 4 Ohm, or bridge four of its channels to create a staggered power four-channel amplifier with 200 W x 2 @ 4 Ohm for your front satellites and 75 W x 2 @ 4 Ohm for your rear satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2.

The XDM600/6 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all six amplifier channels directly from the driver's seat or cockpit.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications

@ 4 Ohms	75 W RMS x 6
@ 2 Ohms	100 W RMS x 6
Bridged @ 4 Ohms	200 W RMS x 3
Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ohms	60 W RMS x 6
@ 2 Ohms	90 W RMS x 6
Bridged @ 4 Ohms	180 W RMS x 3
General Specifications
Frequency Response	12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power	>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W	>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ohms	>150 / 50 Hz
Damping Factor @ 2 Ohms	>75 / 50 Hz
THD+N @ Rated Power	<1% @ 2 Ohms per Ch.
Input Voltage Range @ RCA Inputs	200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge	4 AWG wire
Fuse Rating	50 A (AFS, AGU or MaxiFuse™)
Filter Mode(s)	Low-Pass or High-Pass
Filter Slope(s)	12 dB/octave
Filter Frequency Range	50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers	Yes
Filter Defeat Function	Yes
Remote Level Control	Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes	2 or 4 or All Channels
Channel Input Mode Switch	Yes (2/4/6 ch.)
Pass-Through Preamp Output	None
Source Channel Selection for PreOuts	N/A
Input Voltage	Rated Continuous (RMS) Power @ 14.4 V
