JL Audio XDM Marine Amplifier Monoblock Subwoofer Amplifier 600 Watt 12v

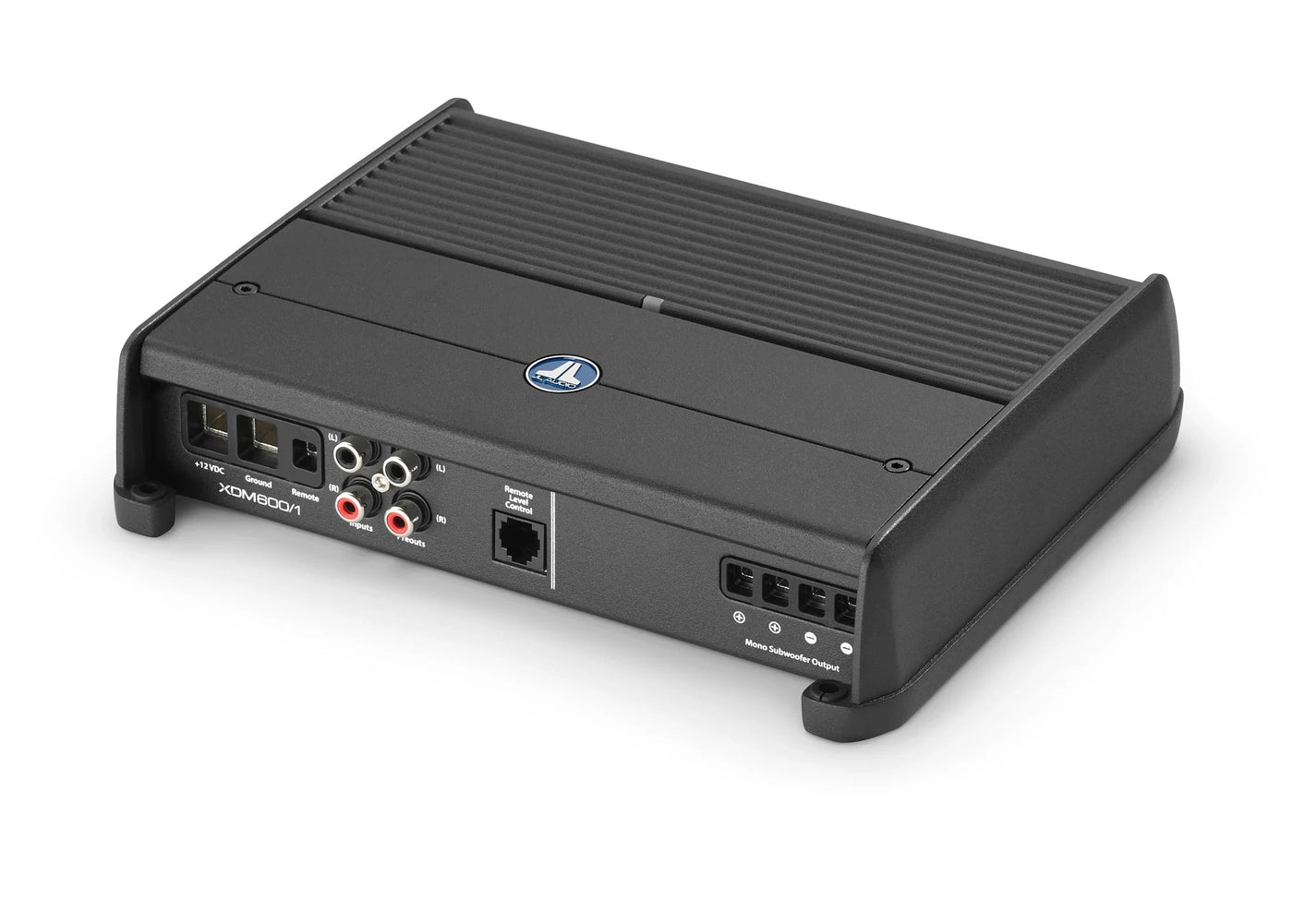

Jl Audio XDM600/1 Monoblock, Class D, Car/Marine Subwoofer Amplifier, 600 W

Model: XDM600/1

This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).

Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications

@ 4 ?	400 W RMS x 1
@ 3 ?	500 W RMS x 1
@ 2 ?	600 W RMS x 1
@ 1.5 ?	N/A
Rated Continuous (RMS) Power @ 12.5 V
@ 4 ?	300 W RMS x 1
@ 3 ?	400 W RMS x 1
@ 2 ?	500 W RMS x 1
@ 1.5 ?	N/A
General Specifications
Frequency Response	7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power	>87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W	>67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ?	>1000 / 50 Hz
Damping Factor @ 2 ?	>500 / 50 Hz
THD+N @ Rated Power	<1% @ 2 ? per Ch.
Input Voltage Range @ RCA Inputs	200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge	4 AWG wire
Fuse Rating	50 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Mode(s)	Low-Pass only
Filter Slope(s)	12/24 dB/octave
Filter Frequency Range	50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer	Yes
Filter Defeat Function	Yes
Infrasonic Filter	30 Hz, defeatable
Bass Boost EQ	No
Output Polarity Switch	No
Remote Subwoofer Level Control	Optional HD-RLC or MHD-RLC (water-resistant)
Remote Bass EQ Boost Control	No
Pass-Through Preamp Output	Buffered
Input Voltage	Rated Continuous (RMS) Power @ 14.4 V

SKU: NVN-1003838
MPN: 010-03116-00
UPC: 699440986830
