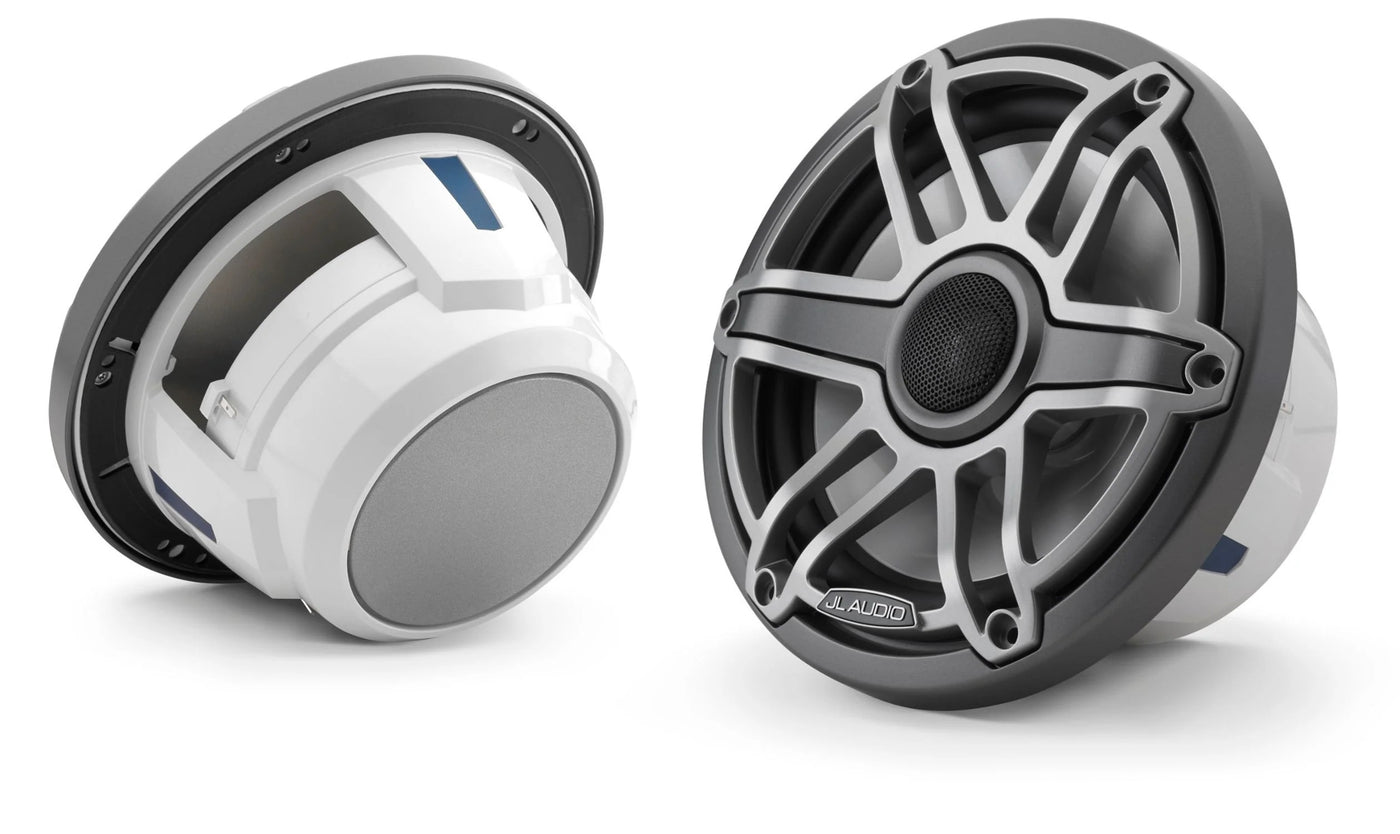

JL Audio M6 7.7in Coaxial Speakers Titanium Sport Grille
JL Audio M6 7.7in Coaxial Speakers Titanium Sport Grille — Product description
JL Audio M6 7.7in Coaxial Speakers Titanium Sport Grille
Model: M6-770X-S-GmTiM6 7.7-inch Marine Coaxial Speakers for Infinite-Baffle Use (100 W, 4 ohms) - Gray Metallic Trim Ring, Titanium Sport Grille
Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment.
The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed.
A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Sold as a pair.
USA Limited Warranty: Two (2) years from the original date of purchase
Specifications| General Specifications | |
| Continuous Power Handling (RMS) | 100 W |
| Recommended Amplifier Power (RMS) | 40 - 200 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 45 Hz - 25 KHz ± 3 dB |
| Coaxial Physical Specifications | |
| Frame Outer Diameter | 7.70 in / 196 mm |
| Bolt Hole Circle Diameter | 6.92 in / 176 mm |
| Frontal Grille Protrusion | 1.08 in. / 27 mm |
| Mounting Hole Diameter | 6.25 in / 159 mm |
| Mounting Depth | 3.32 in. / 84 mm |
SKU: NVN-1003834
MPN: 010-03075-00
UPC: 699440936033
Technical specifications
| Brand | JL Audio |
| Model | JL Audio M6 7.7in Coaxial Speakers Titanium Sport Grille |
| SKU / MFR# | 1003834 |
