T-H Marine MJ1DP Outboard Motor Jack Plate
SKU: 2003369 · UPC: 733572002300 · MPN: MJ1DP
★★★★★
4.7 · 0 reviews
Authorized dealer36% off
$162.79
$254.47Save $91.68
or 4 payments of $40.69 with Affirm
In stock — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$162.79
02 · Overview
T-H Marine MJ1DP Outboard Motor Jack Plate — Product description

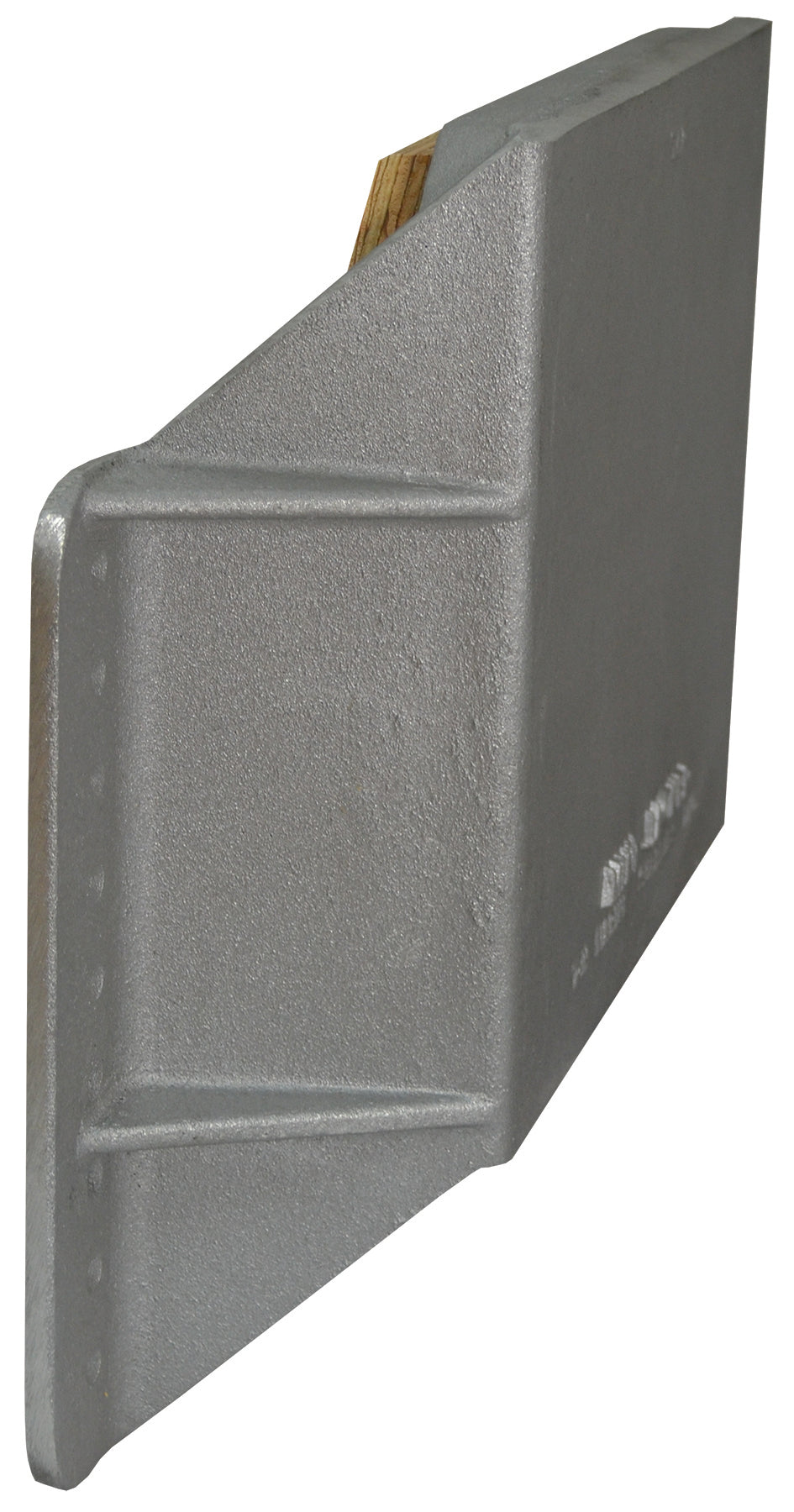

This cast aluminum offset type jack plate is designed for clamp-on mount outboard motors up to 35 Horse Power. The Mini Jacker ™ allows mounting of long shaft motors to shorter shaft transom boats. The mini-jacker ™ stands off transom 4 Inch. The engine mounting surface is 11 1/2 Inch wide x 10 Inch high and features a vertical offset of 3 Inch. The overall width of transom mounting flanges is 17 Inch.
T-H Marine MJ1DP Attributes
- Setback: 4 Inch
- Horsepower: 35 Horsepower
- Adjustment: 3 Inch Vertical
- Color: Gray
- Material: Aluminum
- With Rocker Switch: No
- With Relay Harness: No
T-H Marine MJ1DP Features & Benefits
- Cast Aluminum Bracket
- Marine Grade Transom Block
- Clamp Style Small Outboard Jack Plate
- 35 Maximum Horsepower
- Limited 1 Year Warranty
SKU: NVN-2003369
MPN: MJ1DP
UPC: 733572002300
