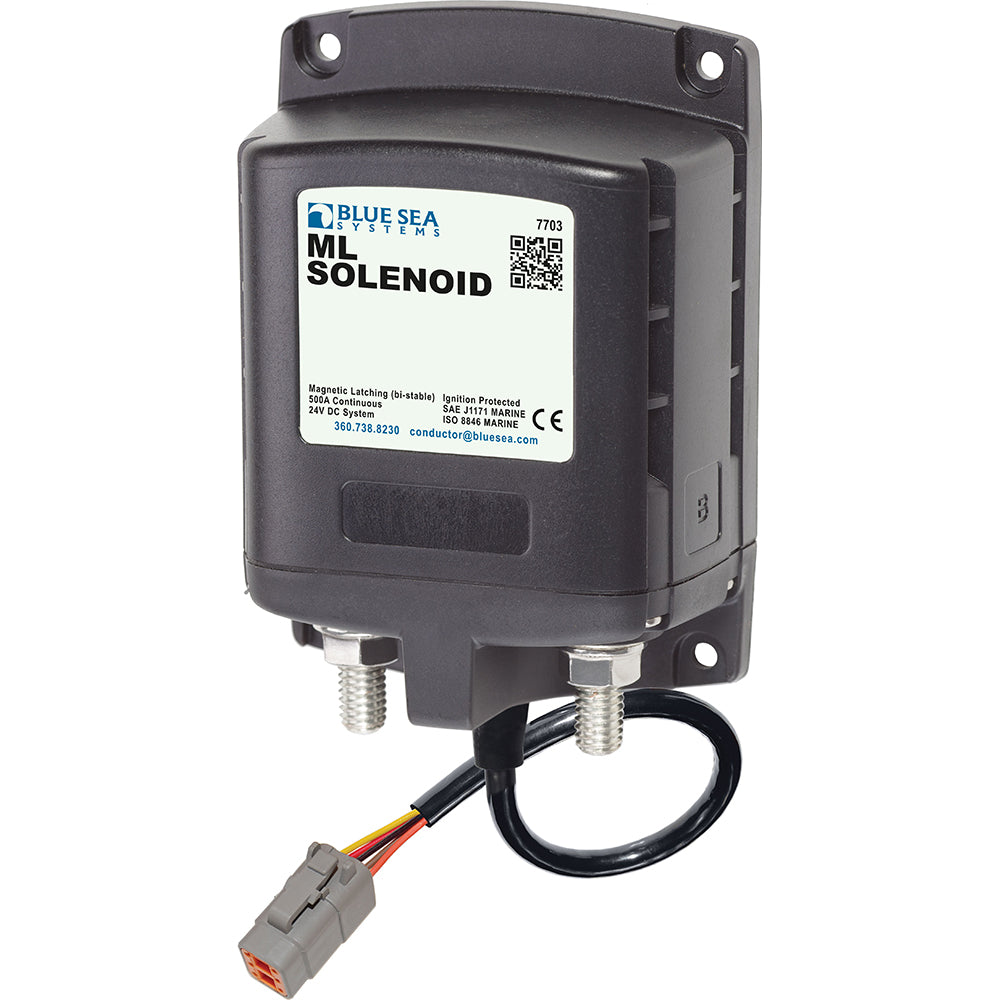

Blue Sea 7703100 ML Solenoid 24V 500A w/Deutsch Connector

7703100 ML Solenoid 24V 500A with Deutsch Connector

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Features:

• 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
• Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
• Silver alloy contacts provides high reliability for switching live loads
• 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk

Specifications:

• Control Circuit Connection: Deutsch DTM
• Nominal Voltage: 12VDC
• Manual Control: No
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current Continous: 0A
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cable Size to Meet Ratings: 2x (4/0)
• Stud Material: Tinned Copper
• Switching Cycles: 100000
• Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
• Terminal Stud Length: 0.875" (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The 7703100 ML solenoid valve with Deutsch connector 24V 500A 500 Amp solenoid lock (bistable) solenoid valve can switch function under load that does not require manual control: 500 ampere continuous rating, suitable for engines, inverters, houses. ..
SKU: NVN-81403
MPN: 7703100
