Blue Sea 7313 COTS Military Grade A-Series 20 Amp — Product description

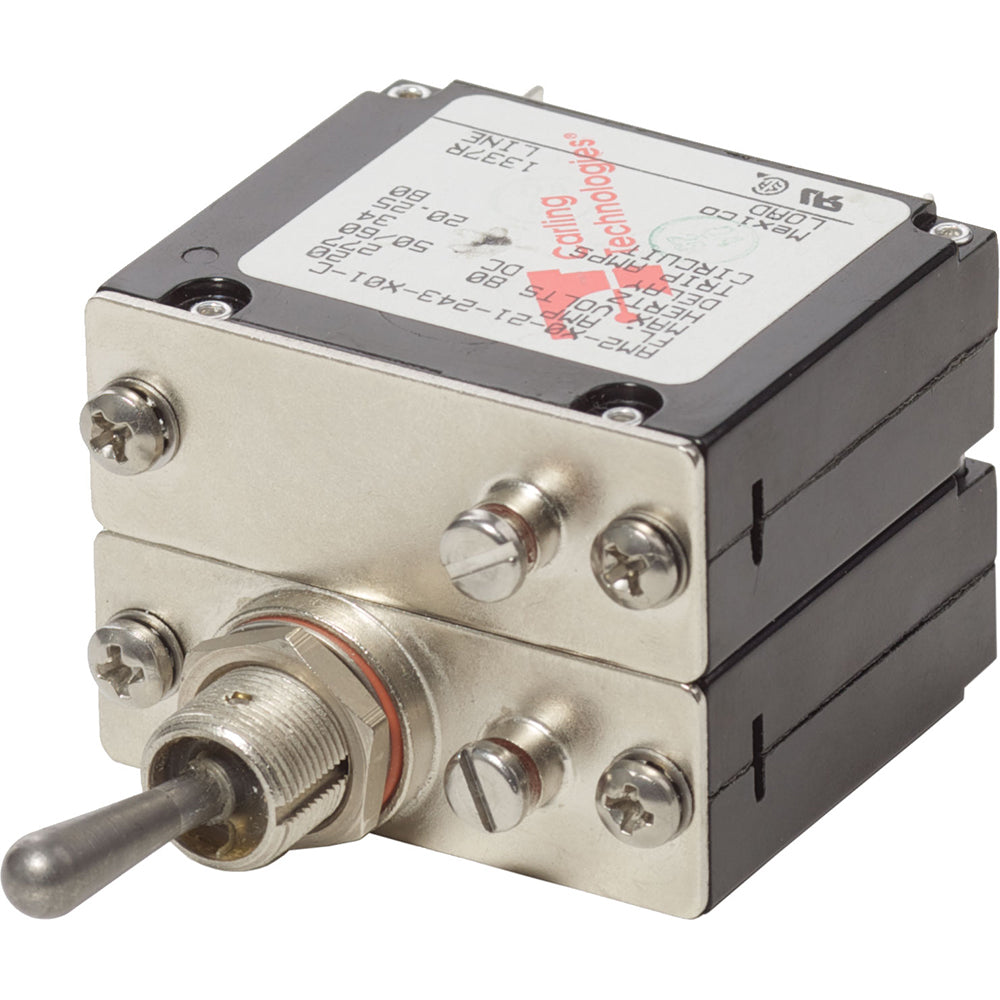

7313 COTS Military Grade A-Series 20 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 20A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40°C
- Max Operating Temp: 85°C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30"-lb
- Screw Terminal Torque: 14"-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
Blue Sea Systems' A series COTS 20A single-pole circuit breaker (7313). It may be suitable for use in situations where CFR 46 requires military specifications. The product is great...
SKU: NVN-78671
MPN: 7313
UPC: 632085173135
