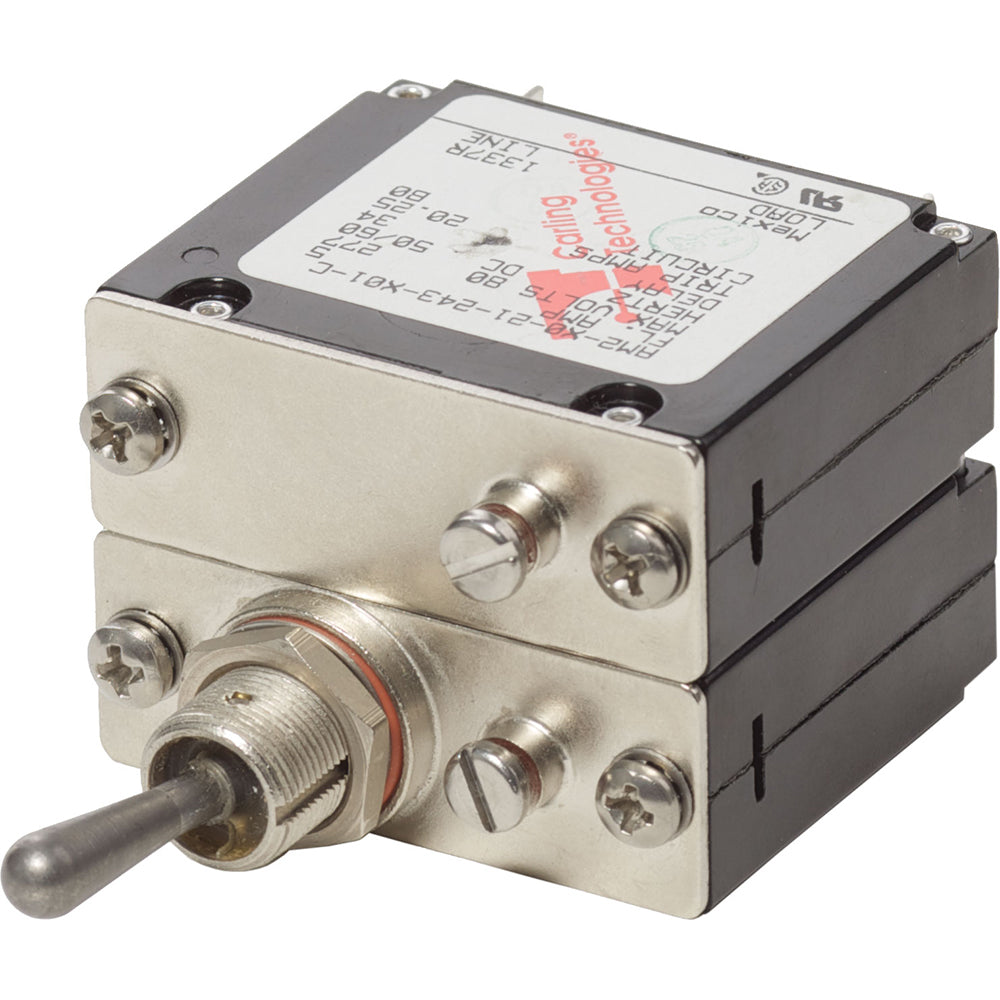

Blue Sea 7310 COTS Military Grade A-Series 5 Amp
Blue Sea 7310 COTS Military Grade A-Series 5 Amp — Product description
Branch circuit breakers can also be used for 24-hour circuit protection. Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking.
Blue Sea 7310BSS Attributes
- Ampere Rating: 5 Amp
- Voltage Rating: 65/ 277 Volt
- Terminal Connection: Screw
- Type: Double Pole Magnetic Hydraulic
- Number of Poles: 2
- Quantity: Single
- Estimated Install Time (Hours): 0.25
Blue Sea 7310BSS Features & Benefits
- Compact Design Enables High Density Circuit Protection Configurations
- Push-To-Reset Operation
- Trip Free Design Cannot Be Held “ON” During Fault Current Condition
- Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
- No Supplier Warranty
7310 COTS Military Grade A-Series 5 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 5A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40°C
- Max Operating Temp: 85°C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30"-lb
- Screw Terminal Torque: 14"-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
7310 COTS military grade A series 5 Amp may be suitable for situations where CFR 46 requires military specifications. Specification: Current: 5A Actuator Type: Metal...
SKU: NVN-73830
MPN: 7310
UPC: 632085173104
Technical specifications
| Brand | Blue Sea Systems |
| Model | Blue Sea 7310 COTS Military Grade A-Series 5 Amp |
| SKU / MFR# | 73830 |
