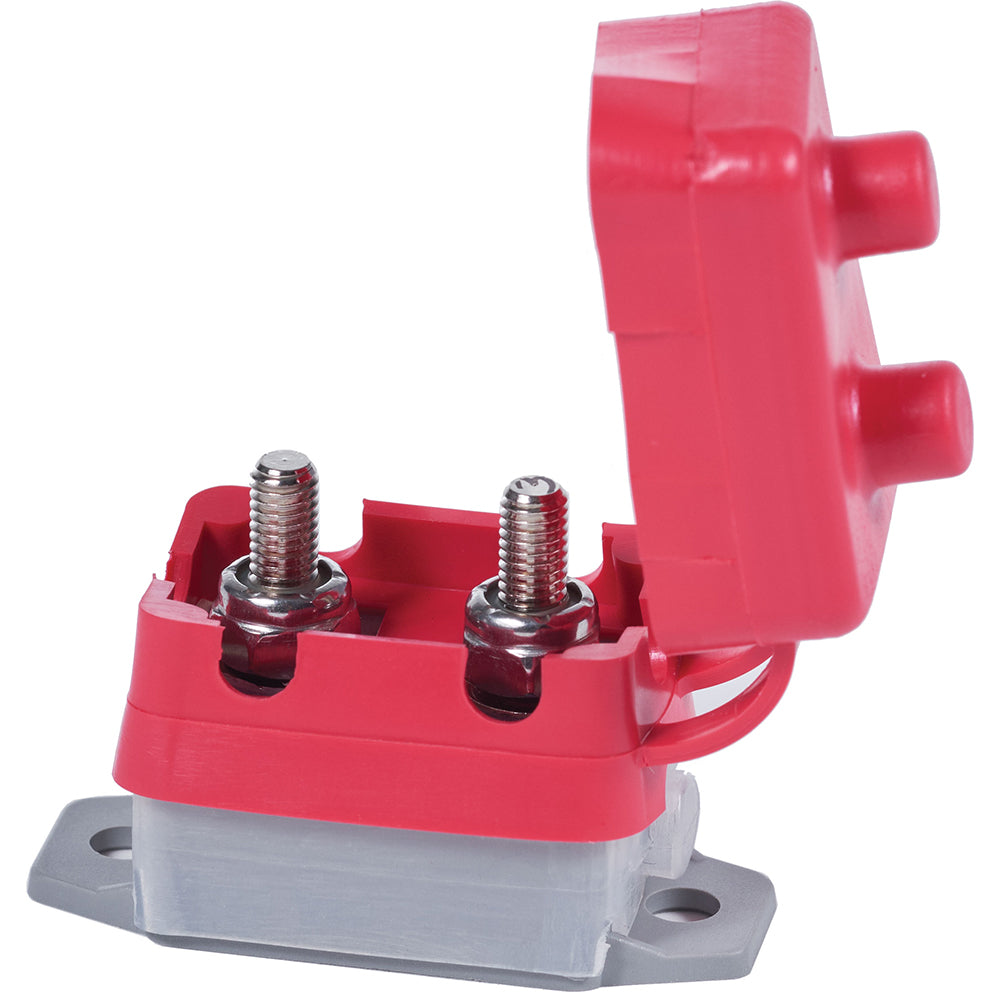

Blue Sea 7153 Short Stop Circuit Breaker - 20A

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 7153BSS Attributes

• Ampere Rating: 20 Amp
• Voltage Rating: 28 Volt
• Reset Type: Manual
• Terminal Connection: No 10-32 Screw
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7153BSS Features & Benefits

• Corrosion Resistant Materials To Withstand Harsh Environments
• IP64 Water Resistant Boot Protects Against Dust And Splashing Water
• Stainless Steel Lock Nuts For Secure Connections
• Push-To-Reset Operation
• No Supplier Warranty

Blue Sea 7153BSS Technical Bulletins

• short-stop-breakers.pdf
• short-stop-breakers.pdf

7153 Short Stop Circuit Breaker - 20A

• Corrosion Resistant Material
• IP 64 Water Resistant Boot
• Push to Reset Only
• Interrupt Capacity: 2,500A @ 28VDC
• Red insulating boot included in retail package

Specifications

• Amperage: 20A DC
• Maximum Voltage: 28V DC
• Interrupt Capacity: 2500A @ 28V DC
• Minimum Operating Temperature: -10º C
• Maximum Operating Temperature: 60º C
• Screw Terminal Torque: 24 in-lb (2.71 Nm)
• Terminal Stud: #10-32"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Circuit breaker, short stop series, 20A, MFG#7153, compact, corrosion-resistant material, surface mount. Press to reset operation, including red insulating sleeve. 2.Length x 0.95W x ...
SKU: NVN-68718
MPN: 7153-BSS
UPC: 632085071530
