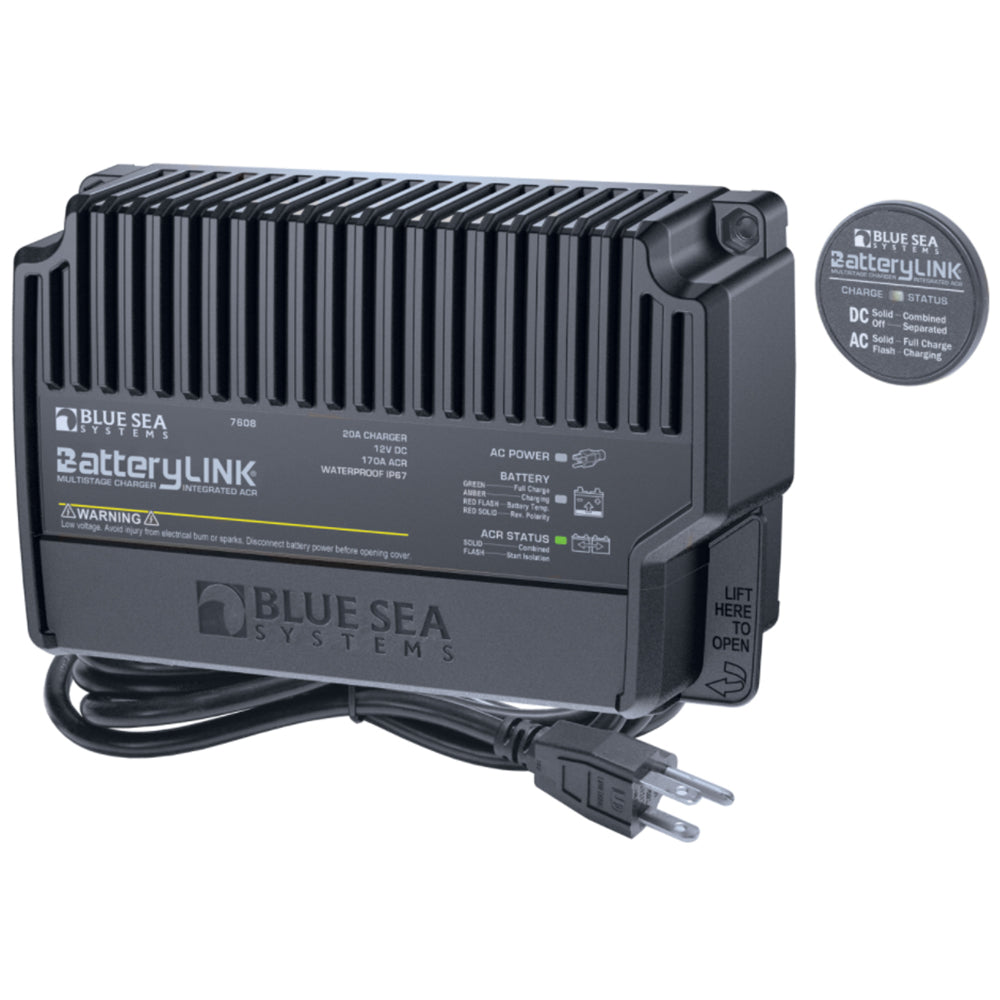

Blue Sea 7608 BatteryLink® Charger (North America) - 12V - 20Amp - 2 Bank

7608 BatteryLink® Charger (North America) - 12V - 20Amp - 2 Bank

Charge at or away from the Dock

• Compact 12V 20A – 2 Bank AC Charger
• 170A Continuous ACR
• Remote Emergency Jump Start
• Battery Temperature Compensation
• Remote Display Included
• IP67 Waterproof

Specifications:

• Total Output Current: 20A
• Nominal Voltage: 12V DC
• Number of Outputs: 1 Negative/2 Positive
• Terminal Stud Torque: 60 in-lb (6.78 Nm)
• Continuous Rating: 65A
• Intermittent Rating: 115A
• Universal AC Input Voltage: 90-265V AC
• AC Input Frequency: 50/60Hz
• Typical Float Voltage: 13.5V DC
• Battery Types: AGM/Flooded/TPPL
• Cable Size to Meet Ratings: 10 AWG Negative Cable/6 AWG Positive cable
• Maximum Battery CCA: 850CCA
• Maximum Cable Size: 1/0 AWG (50mm)
• Operating Current: 10mA/60mA
• Plug Style: North American: NEMA 5-15P
• Recommended Battery Bank Sizes: 60Ah Minimum
• Terminal Stud Size: 1/4"-20
• Warranty: 5 Year
• Combine 30 sec: 13.5V
• Combine 2 Min: 13.0V
• Open 10 sec: 12.35V
• Open 30 sec: 12.75V

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"Charge at or away from the Dock. This product is great for use in all marine applications. It will satisfy the needs of both pleasure boat enthusiasts and ambitious yacht owners. Get this excellent product for your vessel and prepare to embark on a thrilling adventure."
SKU: NVN-68712
MPN: 7608
UPC: 632085076085
