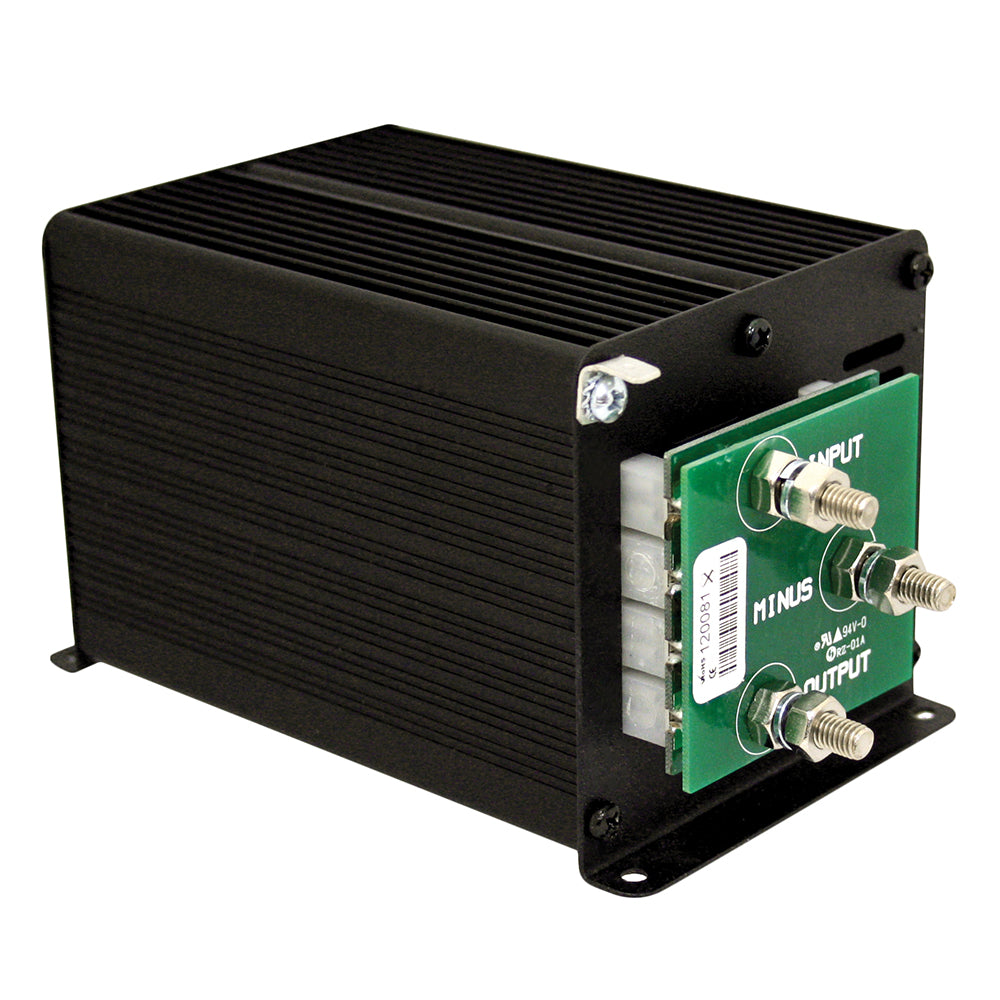

Samlex 60A Non-Isolated Step-Down 24VDC-12VDC Converter

60A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 60 Amps. The SDC-60 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.

Features:

• Advanced switchmode design
• Mount in almost any location
• Compact and light weight
• Reverse polarity protection
• High efficiency
• Overvoltage protection
• Short circuit protection

Specifications:

• Input: 20-35 VDC
• Output: 13.8 VDC
• Amps: 60 Amps
• Weight: 2.8 (lbs)
• Weight: 1.27 (kg)
• Dimensions: 5.5 x 3.5 x 3.75 (in)
• Dimensions: 14 x 8.9 x 9.5 (cm)
• Warranty: 2 Year Limited

Applications:

• Earth moving equipment
• Heavy trucks
• Buses
• Marine vehicles
• CB radios
• 12 Volt lighting systems
• AM/FM sound systems

The SDC-60 DC-DC converter is non-isolated (there is no electrical isolation between input and output) and is suitable for negative grounding systems. Functions include overload, overload...
SKU: NVN-67250
MPN: SDC-60
UPC: 622988067501
