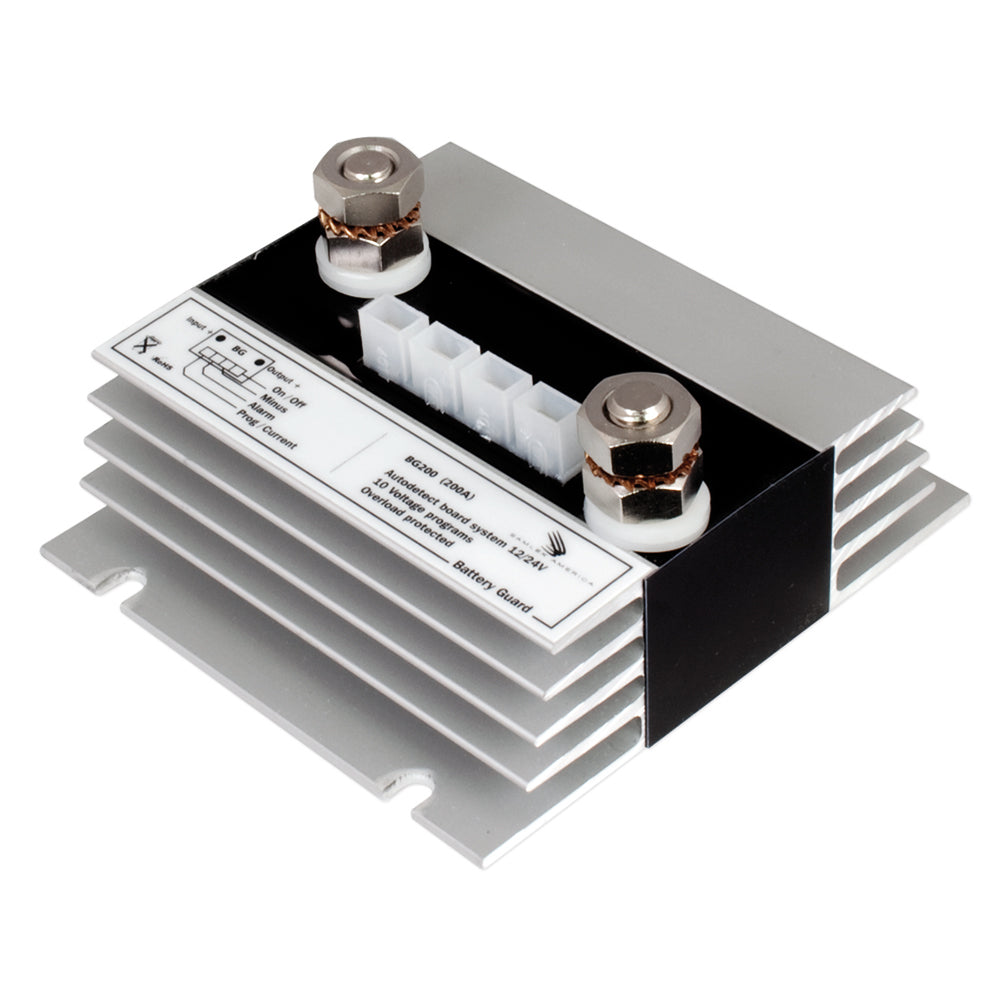

Samlex 200A Battery Guard

The universal programmable Battery Guard (BG) prevents the excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The battery guard has an “Automatic Board System Detection”; the BG automatically detects the battery voltage (12 or 24 Volt). The battery guard is capable of carrying 200 Ampere continuous load and 210 Ampere transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12 Volt and 24 Volt battery systems, which can be easily programmed.

Samlex America BG200 Attributes

• Compatibility: Prevents Excessive Discharge Of 12/ 24 Volt Battery Systems
• Lighting Type: No Light

Samlex America BG200 Features & Benefits

• Can Be Set To Connect / Disconnect At Several Different Voltages With Jumpers
• Batteries Lasts Longer
• Prevents Damage To Connected Components
• Prevents Excessive Voltage Caused By Faulty Alternators Or Chargers
• Prevents Excessive Discharge Of Batteries
• Limited 2 Year Warranty

Samlex America BG200 Installation Instructions

• 11004-BG-40-60-200-0121_Hrez-1.pdf

Samlex America BG200 Technical Bulletins

• 12004-BG-200-0117.pdf

200A Battery Guard

The universal programmable Battery Guard (BG) prevents the excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The BG200 battery guard has an “Automatic Board System Detection”; the BG automatically detects the battery voltage (12 or 24V). The BG200 battery guard is capable of carrying 200A continuous load and 210A transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V battery systems, which can be easily programmed.

Features:

• Can be set to connect / disconnect at several different voltages with jumpers
• Batteries last longer
• Prevents damage to connected components
• Prevents excessive voltage caused by faulty alternators or chargers

Specifications:

• Input: 6-35 VDC
• Output: 6-35 VDC
• Amps: 200 Amps
• Weight: 0.4 (lbs)
• Weight: 0.18 (kg)
• Dimensions: 3.25 x 2.38 x 1.5
• Dimensions: 8.3 x 6 x 3.8 (cm)
• Warranty: 2 Year Limited

Applications:

• Marine
• Automotive
• Recreational

The universal programmable battery protector (BG) can prevent the battery from over-discharging (which will damage the battery) and protect the electronic equipment from over-discharging.
SKU: NVN-67241
MPN: BG-200
UPC: 622988086519
