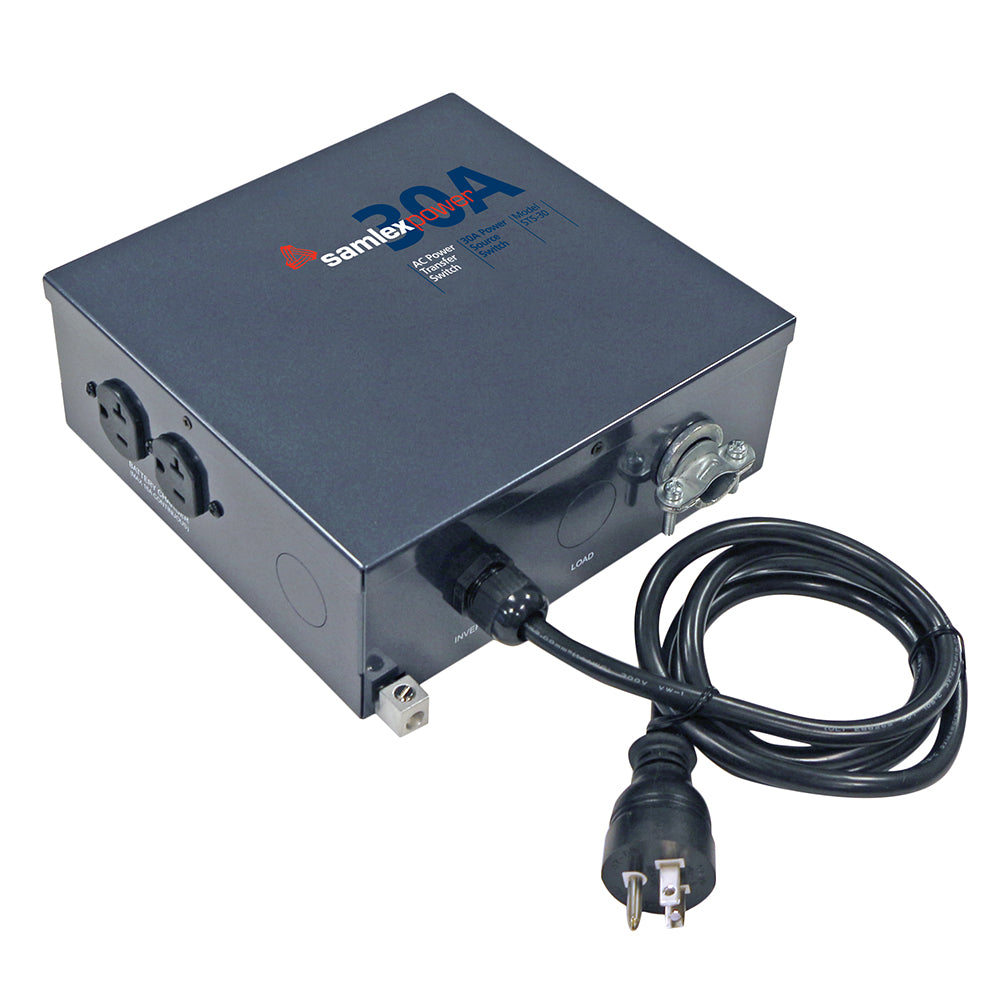

Samlex 30A Transfer Switch w/Inverter Quick Connect

Whether you’re using solar, batteries or a generator to power your AC devices on the road, chances are, you’re going to want to use shore power when it’s available. Connect a Samlex Transfer Switch to your generator, or to your inverter/battery bank and have your AC source switched automatically to shore power when you plug in.

Samlex America STS30 Attributes

• Type: Automatic
• Function: Switches Between 2 Separate AC Input Sources
• Voltage: 120 Volt AC
• Ampere Rating: 30 Amp
• Length (IN): 9 Inch
• Width (IN): 8.4 Inch
• Height (IN): 3.2 Inch
• Color: Black

Samlex America STS30 Features & Benefits

• Automatically Switches Between 2 Separate AC Input Sources: Utility Power And A Generator; Or Utility Power And Inverter; Or Generator And Inverter
• Uses Heavy Duty Double Pole Double Throw (DPDT) Relay For Switching Both The Line And Neutral
• DIP Switch Select To Enable Time Delay Of 20 To 25 Seconds When Transferring To A Generator
• Easy To Install
• Limited 2 Year Warranty

Samlex America STS30 Installation Instructions

• 11001-STS-30-0917_Lrez.pdf

Samlex America STS30 Technical Bulletins

• 12001-STS-30-0713-Lrez.pdf

30A Transfer Switch w/Inverter Quick Connect

Whether you’re using solar, batteries or a generator to power your AC devices on the road, chances are, you’re going to want to use shore power when it’s available. Connect a Samlex Transfer Switch to your generator, or to your inverter/battery bank and have your AC source switched automatically to shore power when you plug in.

Features:

• Automatically switches between 2 separate AC input sources: Utility Power and a Generator; or Utility Power and Inverter; or Generator and Inverter
• Has rated capacity of 30 Amps at 120 VAC and is suitable for 30 Amp Utility Power Cord and Generator of up to 3.6 KVA capacity
• Uses heavy duty Double Pole Double Throw (DPDT) relay for switching both the Line and Neutral
• Can be installed on the line side of the main breaker panel allowing switching of the entire load or on the load side to only switch dedicated circuits
• DIP Switch select to enable time delay of 20 to 25 sec when transferring to a generator
• Comes with a standard North American power cord for convenient connection to 15 Amp NEMA5-15R receptacles on a generator or an inverter with up to 1800 VA capacity (Replace this cord with 30 Amp cord if full 30 Amp capacity is required)
• NEMA5-20R Duplex Receptacle for convenient connection of battery charger

Specifications:

• Output: 120 VAC
• Amps: 30 Amps
• Weight: 4.4 (lbs)
• Weight: 1.99 (kg)
• Dimensions: 9 x 8.25 x 3.25 (in)
• Dimensions: 22.9 x 21 x 8.3 (cm)
• Warranty: 2 Year Limited

Applications:

• Solar power systems
• Emergency backup power
• Mobile offices
• Boats
• Lighting systems
• Recreational vehicles, camping
• Automotive
• Telecommunications
• Field work/construction sites

Samlex America transfer switch with inverter for quick connection 30A STS-30. Connect the Samlex transfer switch to the generator or inverter/battery pack and use AC power...
SKU: NVN-67182
MPN: STS-30
UPC: 622988079306
