Samlex 2750W Modified Sine Wave Inverter - 24V

2750W Modified Sine Wave Inverter - 24V

PSE Series

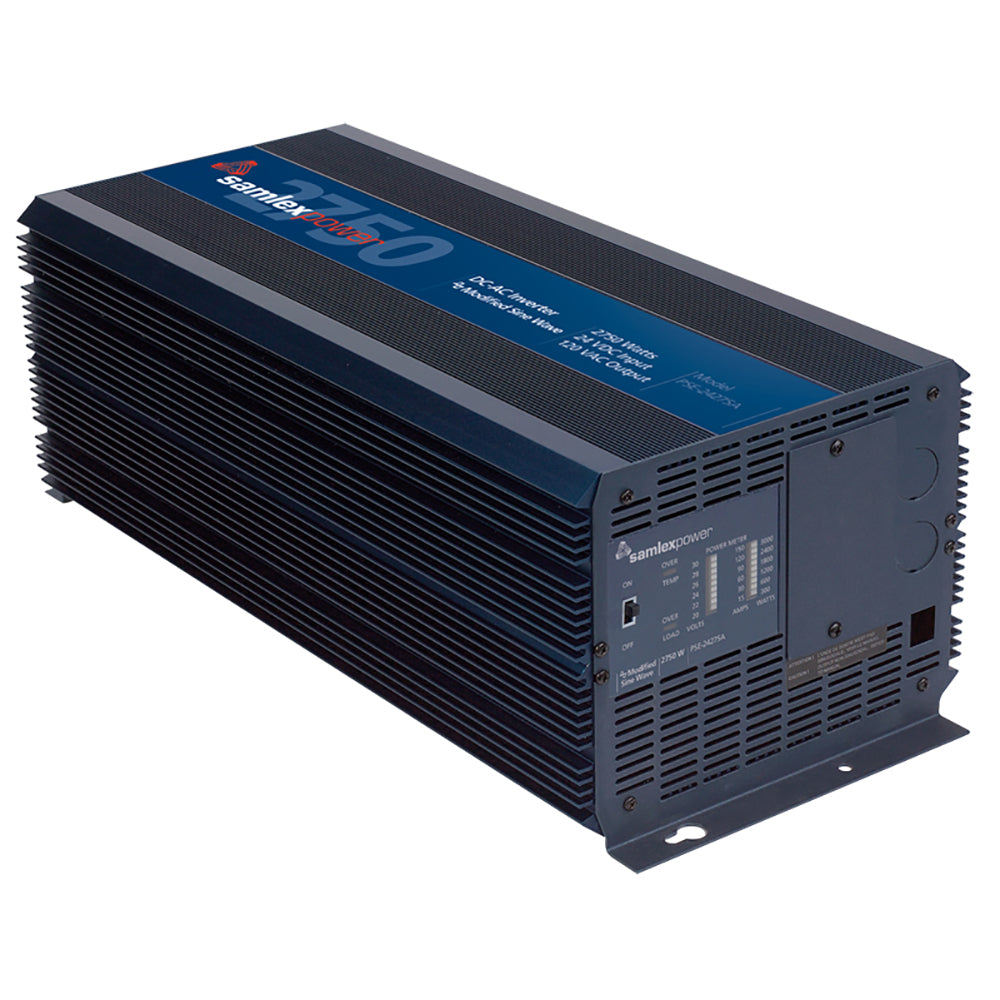

This high efficiency modified sine-wave DC-AC inverter converts 24 Volts DC (Nominal) to 2750 watts of AC power at 120 Volts, 60 Hz. The unit comes with a set of battery cable lugs. Output AC power is available by means of hardwire connection (NEMA 5-15R receptacles with 15 Amp breaker optional accessory). Features include overload, over-temperature, low input and high input voltage protection. The front-end LED display indicates battery voltage and output power levels.

Features:

• High efficiency PWM design
• LED bar graphs indicate input voltage, input current and output power
• Temperature controlled cooling fan
• Low input voltage warning alarm
• Optional remote operation with Samlex Model RC-15 remote control (sold separately)
• Protections: high/low DC input voltage, over temperature and over load shut down
• High output power surge

Specifications:

• Input: 24 VDC
• Output: 120 VAC
• Watts: 2750 Watts
• Surge: 4500 Watts
• Outlets: 1
• Fuse: 15A x 12
• Remote Control: RC-15
• Weight: 16.2 (lbs)
• Weight: 7.35 (kg)
• Dimensions: 8.07 x 19.49 x 6.3 (in)
• Dimensions: 205 x 495 x 160 (mm)
• Warranty: 2 Year Limited

Applications:

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers, monitors, fax machines
• Tools and appliances

Samlex PSE-24275A is a high-efficiency sine wave DC-AC inverter that can convert 24 volts direct current to 2750 watts of alternating current. The AC output power can be obtained through an AC hard-wired connection or the included NEMA 5-15R socket. Features include overload and overheating, low input and high input voltage protection. The front panel LED display indicates the battery voltage and output power level. It is very suitable for powering office equipment, TV power tools and lighting systems via trucks, trucks, RV solar systems or batteries.
SKU: NVN-67164
MPN: PSE-24275A
UPC: 622988071744
