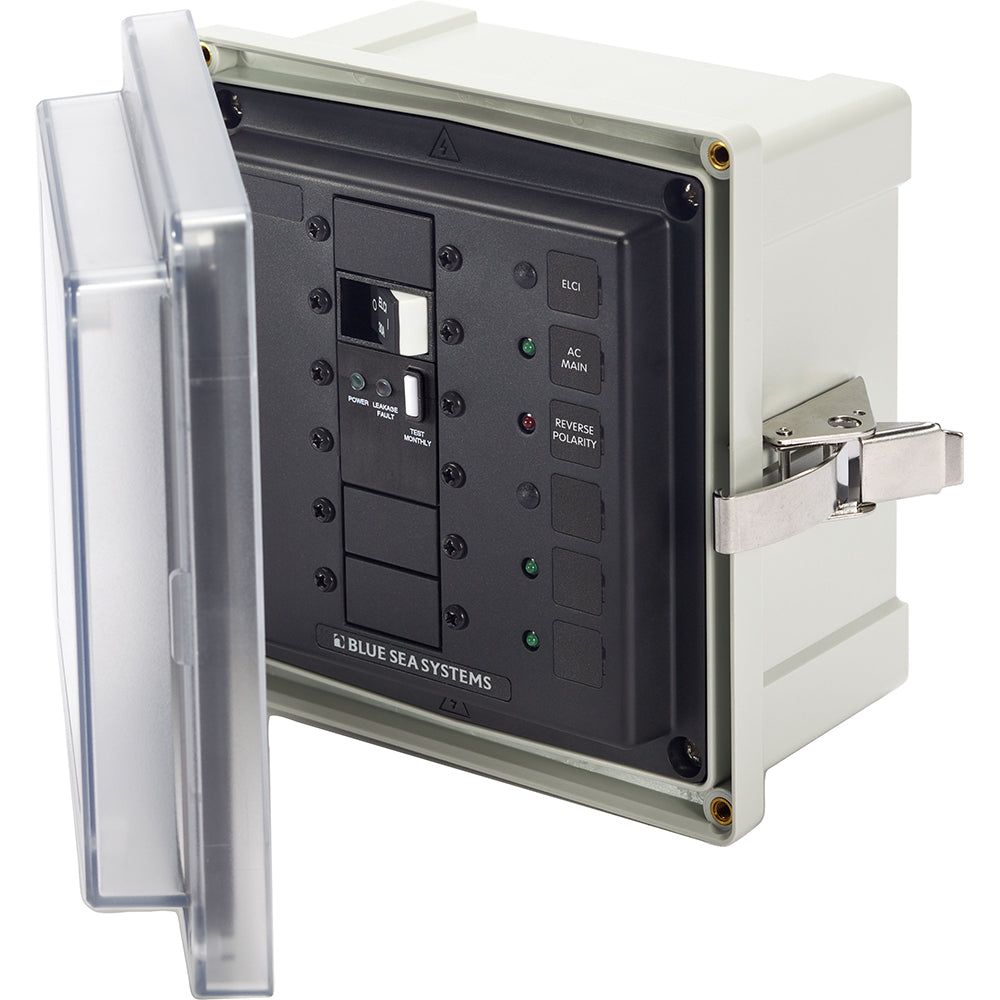

Blue Sea 3118 SMS Surface Mount System Panel Enclosure - 120V AC / 50A ELCI Main - 2 Blank Circuit Positions

SMS Surface Mount System Panel Enclosure - 120V AC / 50A ELCI Main - 2 Blank Circuit Positions

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

• Includes one 120V AC / 50A ELCI Main and two blank positions
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Specifications:

• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Cover Screws and Hardware: 10-32 Stainless Steel
• Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
• Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
• Mounting Hardware: 1/4" Diameter, #12 (6 mm)
• Weight: 5.25lb (2.38 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Surface mount system panel cabinet with 120V AC 50A ELCI main power supply from Blue Sea Systems and 2 blank positions (3118). Panel housings for ELCI main circuit breakers and other large circuit breakers
SKU: NVN-65549
MPN: 3118-BSS
UPC: 632085031183
