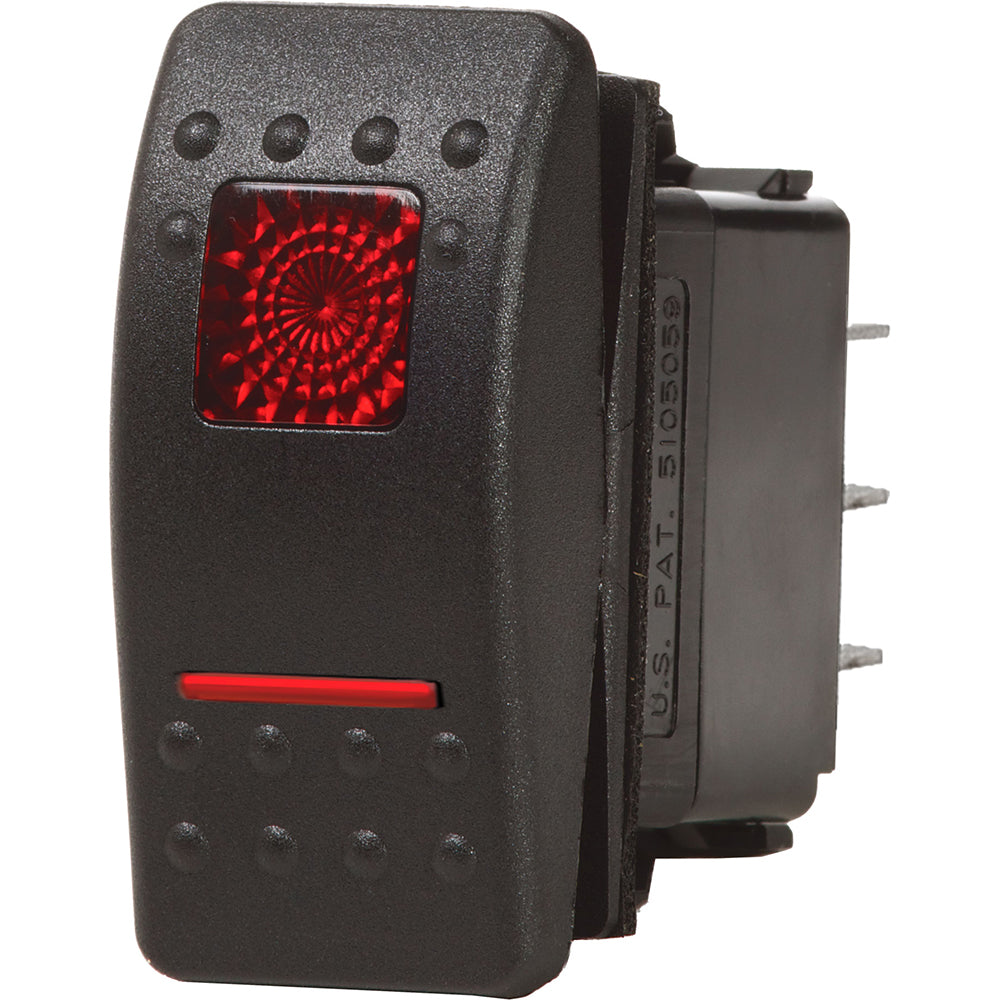

Blue Sea 7936 Contura II Switch DPDT Black - ON-OFF-ON

Contura II Switch DPDT Black - ON-OFF-ON

Vibration, shock, thermoshock, moisture and salt spray resistant
Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels

Specifications:

• Action: ON-OFF-ON

• Pole/Throw: DPDT - Double Pole/ Double Throw

• Actuator Color: Black - Contura II

• Common Applications: Combining Nav lights or anchor light with shared bulb

• Maximum Amperage: 20A @ 12V / 15A @ 24V

• Amperage Operating Current: 18mA (LED)

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Actuator Position to Light LED: ON

• Embedded LEDs: 2

• Lighting: LED rated 100,000 hours 1/2 half

• Seals: Internal and external gasket panel seal

• Weight: 0.09lb (0.04 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems DPDT ON-OFF-ON Contura II switch (7936). This product is very suitable for use in all marine applications. It will meet the needs of two cruise ships...
SKU: NVN-61069
MPN: 7936-BSS
UPC: 632085079369
