Blue Sea 1222 12V DC 16 Position

12 Volt DC 16 Position

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 12

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A per bus

• Height: 7.75" (196.85mm)

• Width: 9.25" (234.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 6.27lb (2.84kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(16) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

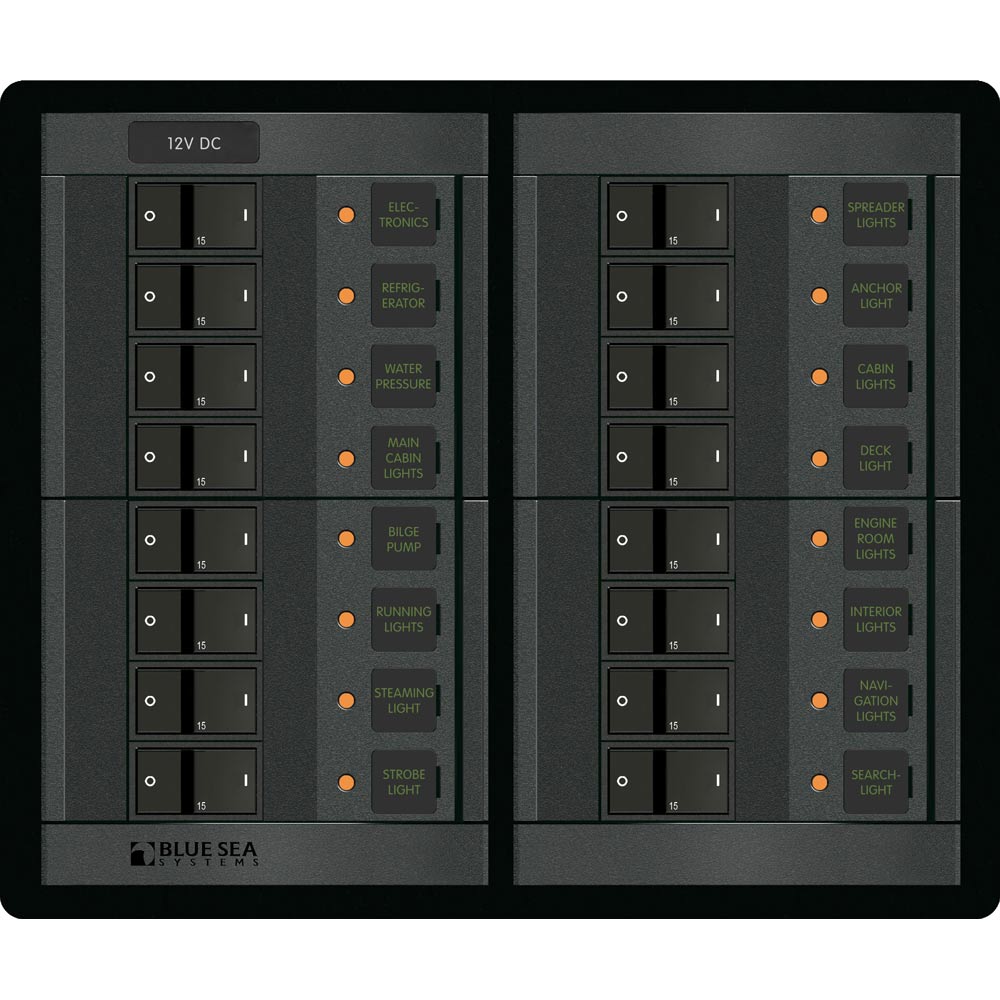

Blue Sea Systems 16 position 12V DC panel, 16/15A circuit. Modular electrical panels can be adapted to the changing needs of your ship, and Blue Sea Systems 360 panels are well known.
SKU: NVN-57229
MPN: 1222
UPC: 632085012229
