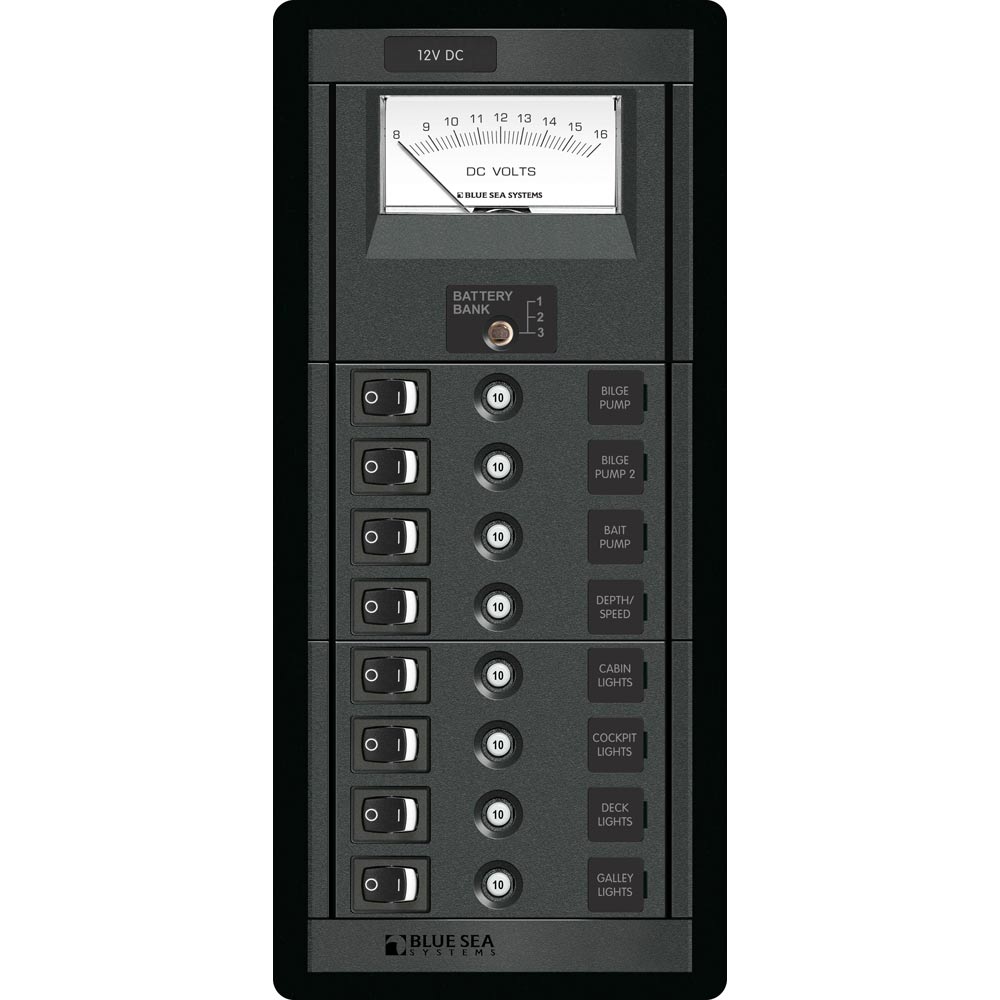

Blue Sea 1463 8 Position Switch CLB + Meter Vertical

8 Position Switch CLB + Meter Vertical

Features:

• Available with voltmeters and ammeters

• Panels with meters include a toggle switch to monitor voltage on up to three battery banks

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC

• Maximum Amperage*: 80A per bus

• Height: 10.75" (273.05mm)

• Width: 4.88" (123.95mm)

• Depth: 3.50" (88.9mm)

• Weight: 3.66lb (1.66kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(8) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Designed to be an economical solution for circuits that require circuit protection and switching, it includes a square tag set and eight 10A circuit breakers. It also has 8...
SKU: NVN-57224
MPN: 1463
UPC: 632085014636
