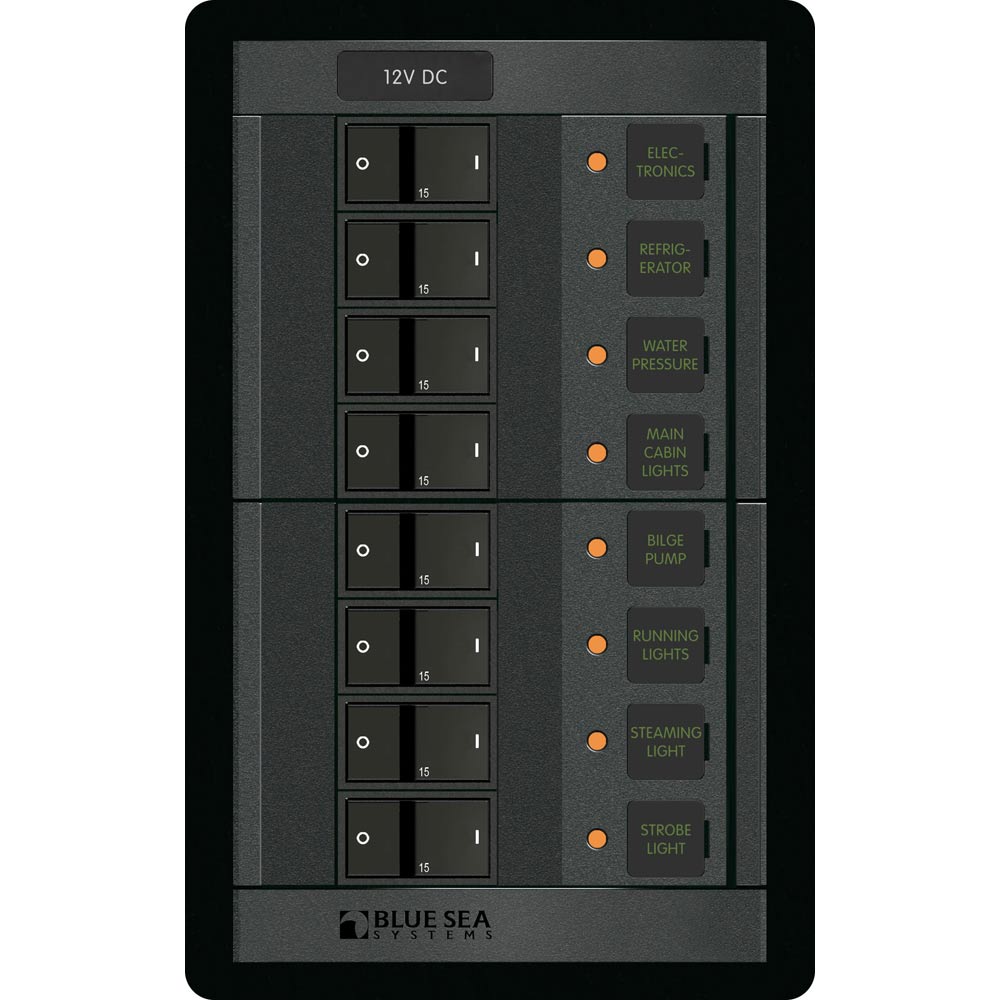

Blue Sea 1200 12V DC 8 Position - Vertical

12 Volt DC 8 Position - Vertical

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A

• Height: 7.75" (196.85mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 2.60lb (1.18kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"Circuit Breakers (PN): 8 A-Series, 15A (7403). Nominal Voltage: 12V DC. Maximum Amperage: 100A per bus. 4 to 32 branch circuits with installed 15 Ampere circuit breakers. Available with voltmeters, ammeters, and digital multimeters. Includes 4205 Square format label set. Dimension: 4-7\/8\" W x 7-3\/4\" H x 3\" D."
SKU: NVN-57222
MPN: 1200
UPC: 632085012007
