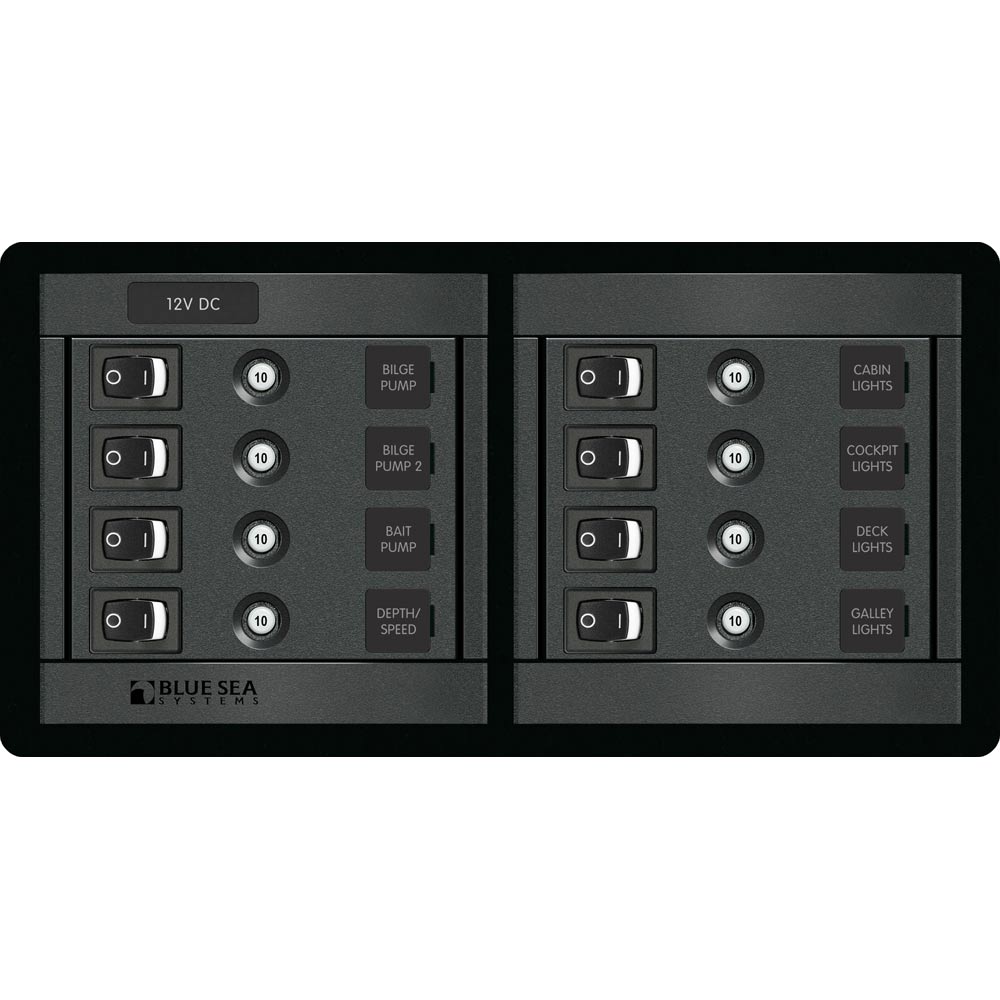

Blue Sea 1456 8 Position Switch CLB Horizontal

8 Position Switch CLB Horizontal

Features:

• Available with voltmeters and ammeters

• Panels with meters include a toggle switch to monitor voltage on up to three battery banks

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC

• Maximum Amperage*: 80A

• Height: 4.75" (120.65mm)

• Width: 9.25" (234.95mm)

• Depth: 3.50" (88.9mm)

• Weight: 2.89lb (1.31kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7480 - Rocker Switch SPST - ON-OFF
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 8-position 12V DC CLB horizontal button panel. 360 panel system. Provide circuit protection and switching in a compact and economical panel. 8 10A...
SKU: NVN-57221
MPN: 1456
UPC: 632085014568
