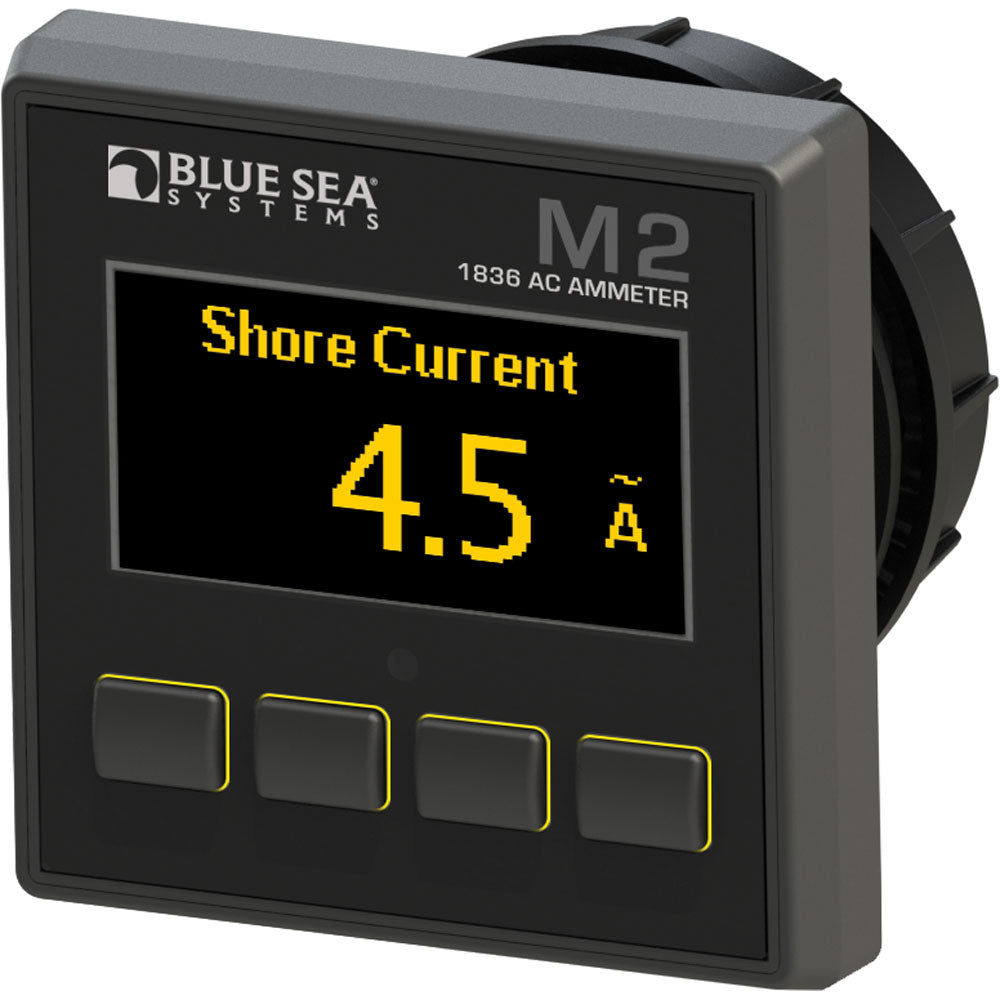

Blue Sea 1836 M2 AC Ammeter

M2 AC Ammeter

Monitors AC Amperage on large, bright display. Supports programmable current transformer ratios. Accurately measure and alarm the amperage of your AC system. (measures 2 independent circuits)

Features:

• Auto-dimming, bright OLED display is easy to read

• Easy to adjust

• 92dB alarm on all models

• Isolated MOSFET relay

Specifications:

• Meter: Current

• Function: to 300A

• Alarms: High/Low Current

• Display Size: 55mm x 28mm

• Input Voltage: 7-70V DC

• Maximum Power Consumption: 1.00Watt

• Minimum Power Consumption: 0.3 Watt

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The M2 OLED digital monitor measures basic electrical system parameters with adjustable alarms and an automatically dimming display in a compact housing. The gasket will produce...
SKU: NVN-54768
MPN: 1836
UPC: 632085018368
