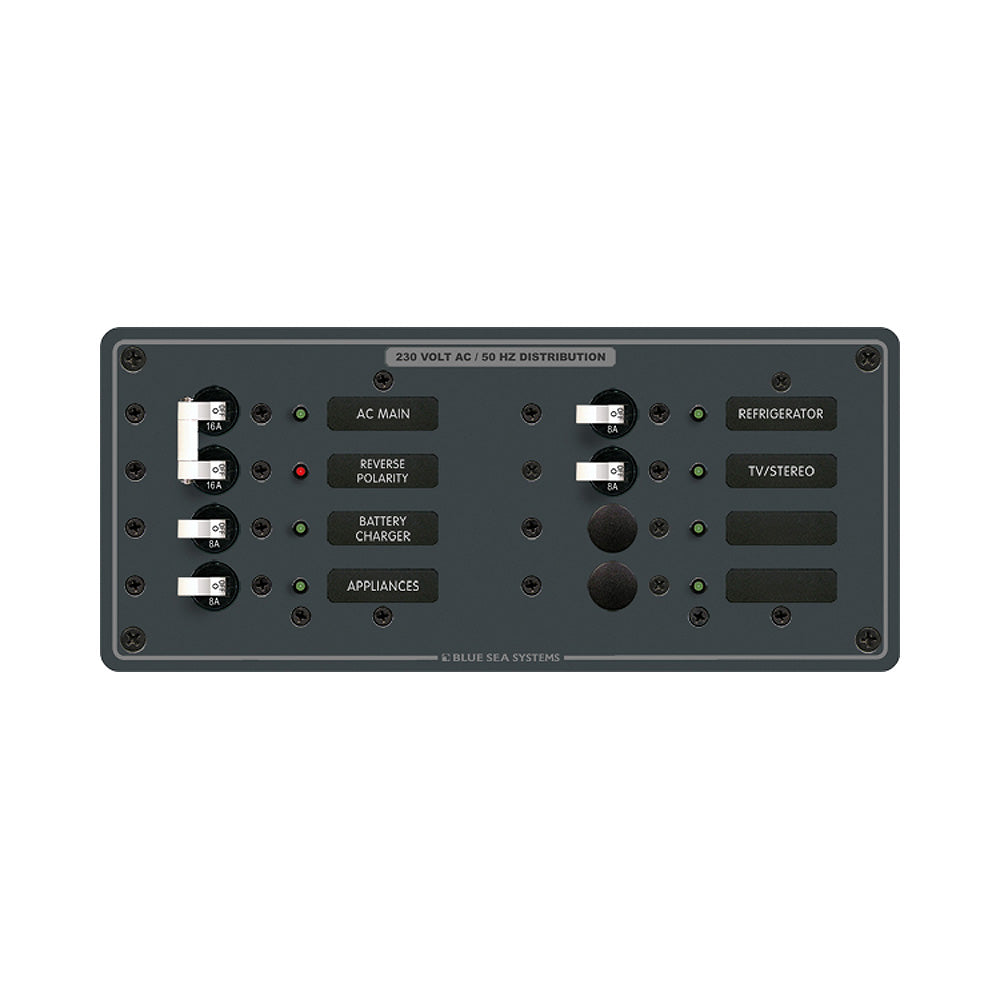

Blue Sea 8512 Breaker Panel - AC Main + 6 Position - White

AC Main + 6 Positions


Color: White
16A Double: 1
8A Single: 8

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

There is no meter. One 16 Amp Main, 4 8 Amp branch circuit breakers and 2 disconnect positions. 230 VAC, neutral wire and ground wire. Power-on and reverse polarity LED indicators. 10.5 inches (width) x 4.5 inches (height).
SKU: NVN-20880
MPN: 8512
UPC: 632085085124
