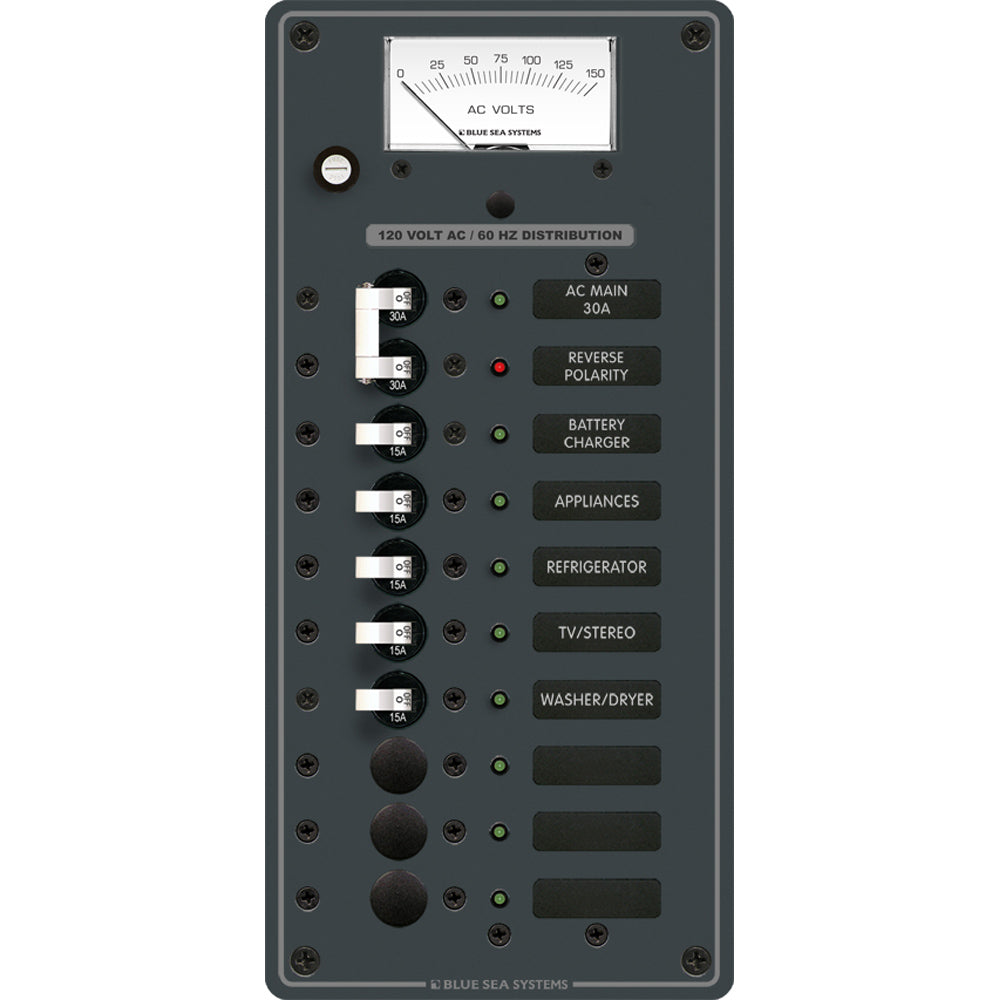

Blue Sea 8488 Breaker Panel - AC Main + 8 Positions - White

AC Main + 8 Positions

Color: Black
30A Double: 1
15A Single: 5

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Ocean System 120V AC Main AC Main + 8 bits. The traditional free-standing metal AC main panel Blue Sea Systems panel with branch circuit and voltmeter reflects...
SKU: NVN-20867
MPN: 8488
UPC: 632085084882
