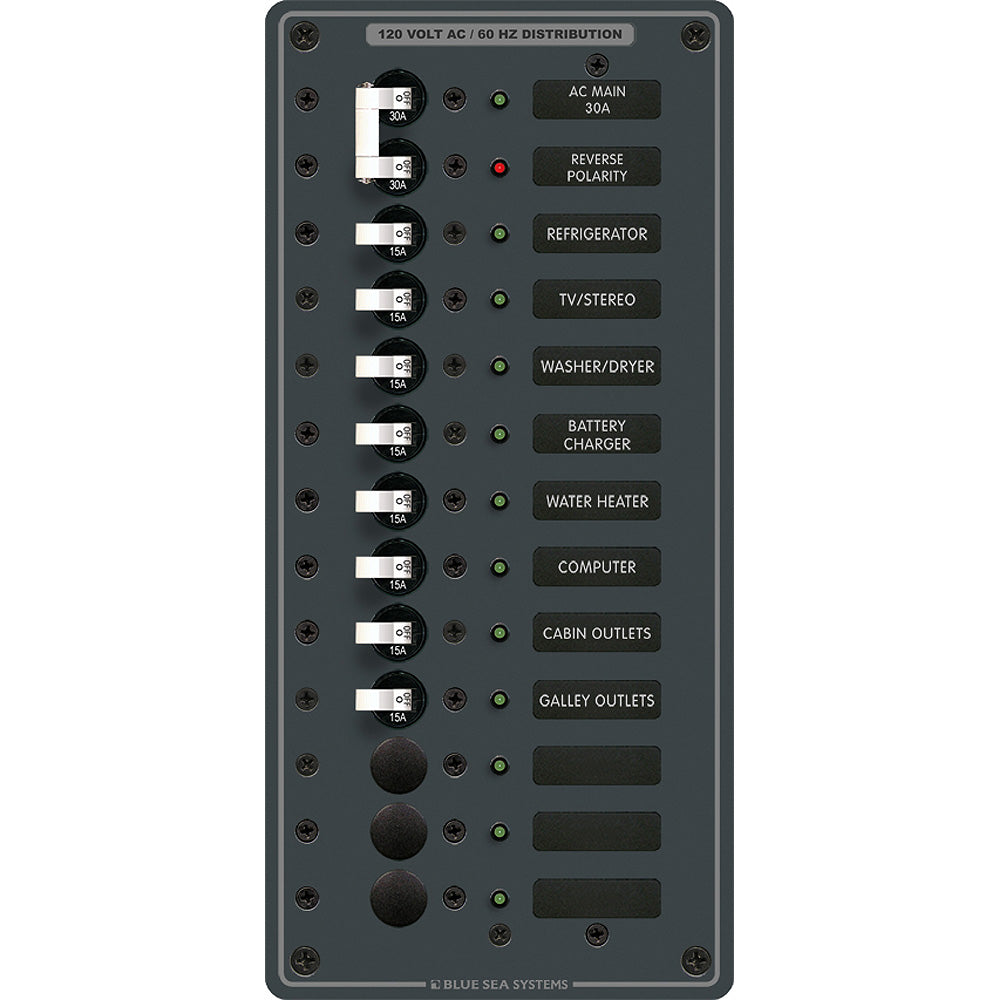

Blue Sea 8485 AC Main + 11 Positions

Main + 11 Positions

(1) 30A Double Pole Circuit Breaker

(8) 15A Single Pole Circuit Breaker

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Ocean System 120V AC Main AC Main + 11 bits. The blue ocean system panel embodies the quality and attention to detail specified by the top yacht designers and manufacturers for...
SKU: NVN-20864
MPN: 8485
UPC: 632085084851
