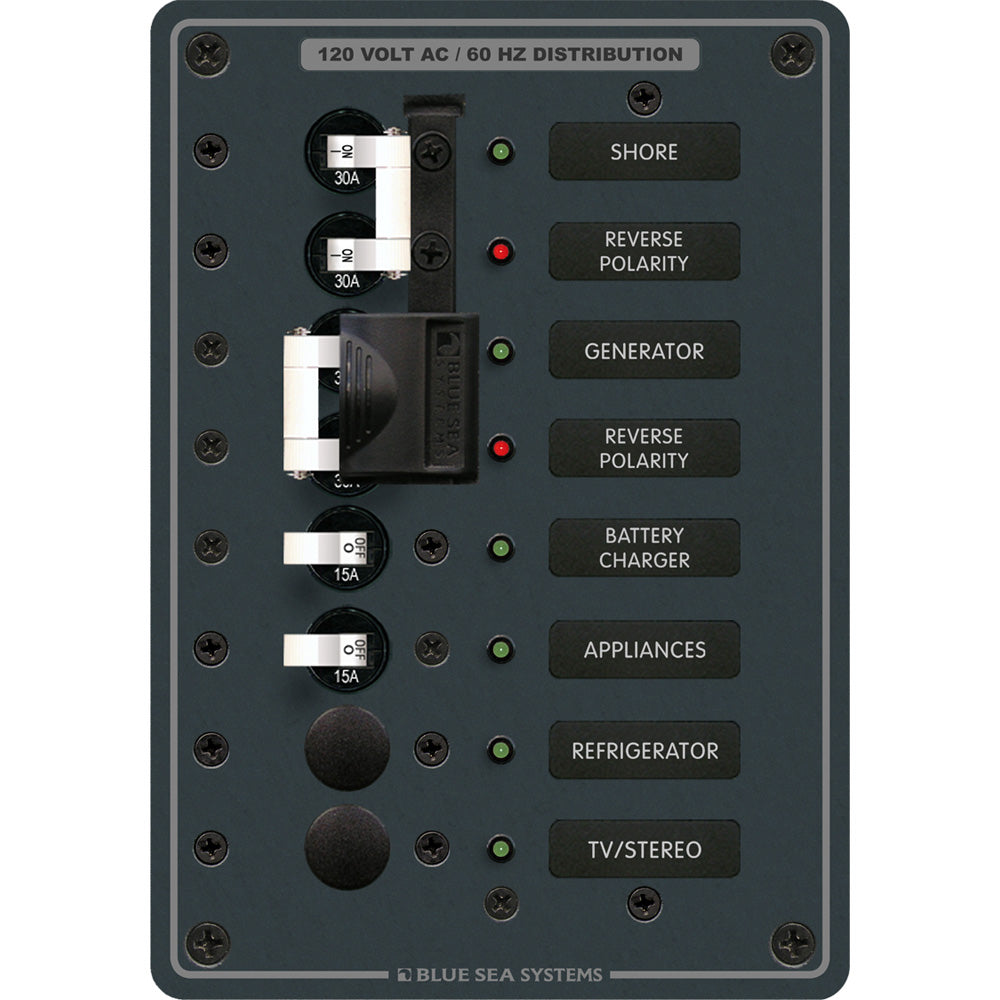

Blue Sea 8467 AC 2 Sources + 4 Positions

AC 2 Sources + 4 Positions

(2) 30A Double Pole Circuit Breakers

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems' traditional 4-position 120V AC dual power supply panel (8467). This product is very suitable for use in all marine applications. It will meet the needs of both parties...
SKU: NVN-20846
MPN: 8467
UPC: 632085084677
