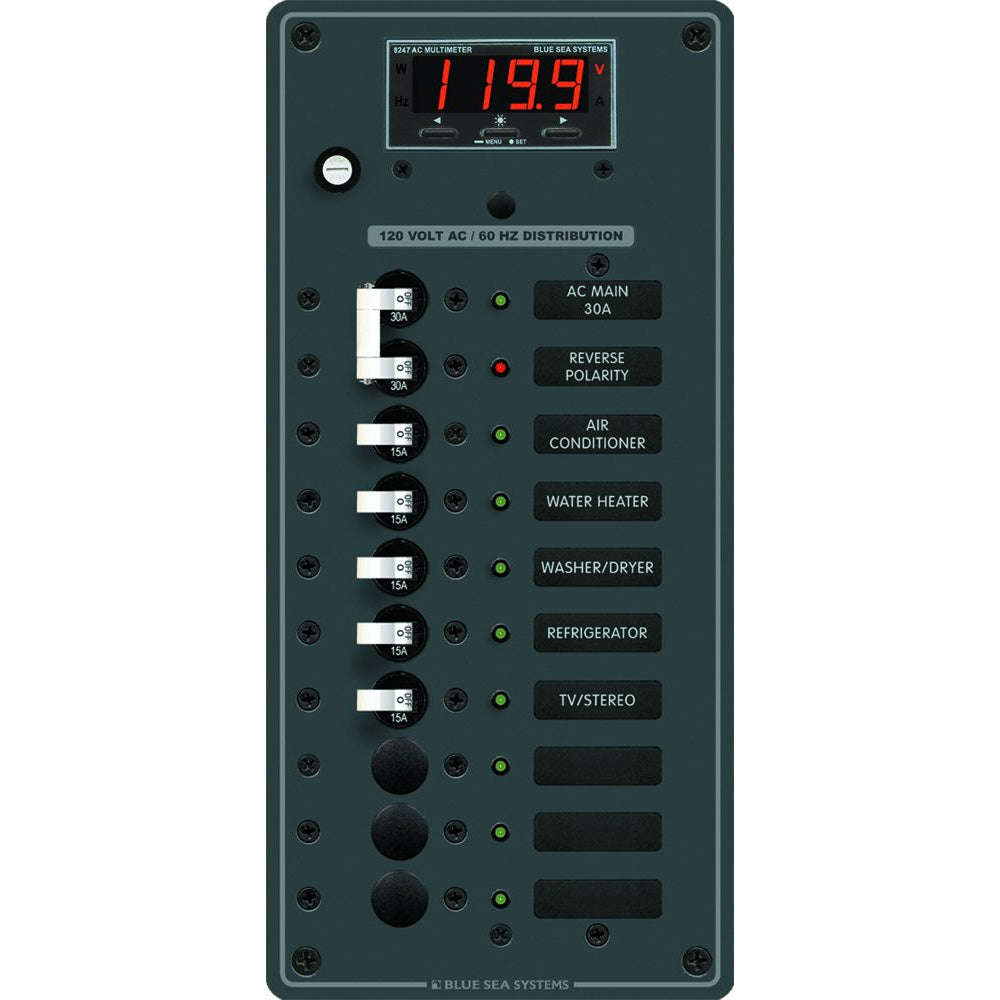

Blue Sea 8406 AC Main + 8 Positions

Main + 8 Positions

(1) 30A Double Pole Circuit Breaker

(5) 15A Single Pole Circuit Breaker

(1) 8247 AC Digital Multimeter w/ Alarm

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

"Features: Main + 8 positions. 1 - 30A double pole circuit breaker, 5 - 15A single pole circuit breaker, 1 - 8247 AC digital multimeter with alarmred reverse polarity indicating led all hot, neutral and safety ground buses installed, fully pre-wired all circuit label positions are backlit on standard panels, no kit required \"on\" indicating leds installed in all circuit positions maximum panel amperage, 50 amperes mil-c-5541c or equivalent immersion undercoating for lifetime corrosion resistance, two-part polyurethane slate, gray finish, heavy 1\/8\" aluminum, 5052 alloy industry standard height and width countersunk mounting holes throughout detailed installation instructions and cutout template included. Includes set of 30 common large format labels over 500 individual labels."
SKU: NVN-20830
MPN: 8406
UPC: 632085084066
