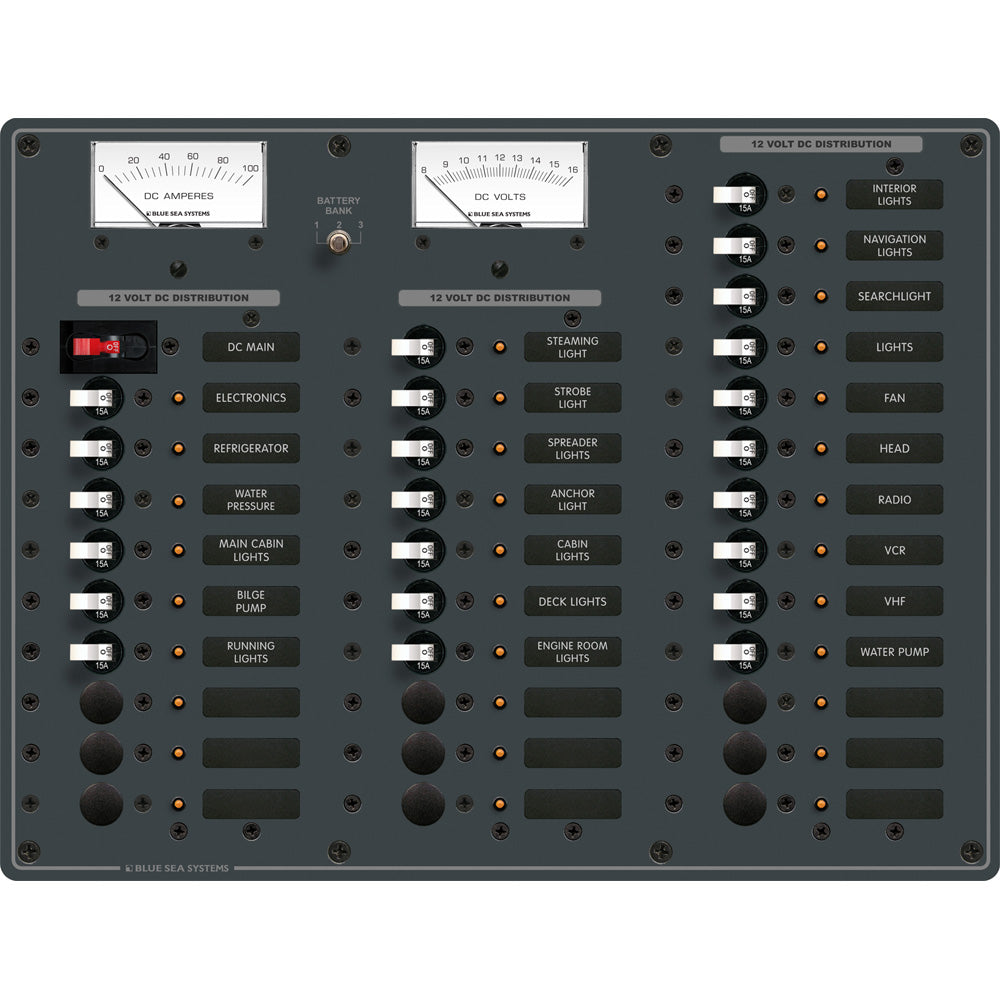

Blue Sea 8381 DC Main + 32 Positions

Main + 32 Positions

(23) 15A Single Pole Circuit Breakers

(1) 100A C-Series Main Circuit Breaker

(1) 8003 DC Analog Voltmeter

(1) 8017 DC Analog Ammeter

White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The traditional 12V DC main panel provided by Blue Sea Systems has 32 DC positions (8381). This product is very suitable for use in all marine applications. It will meet the needs of both parties...
SKU: NVN-20820
MPN: 8381
UPC: 632085083816
