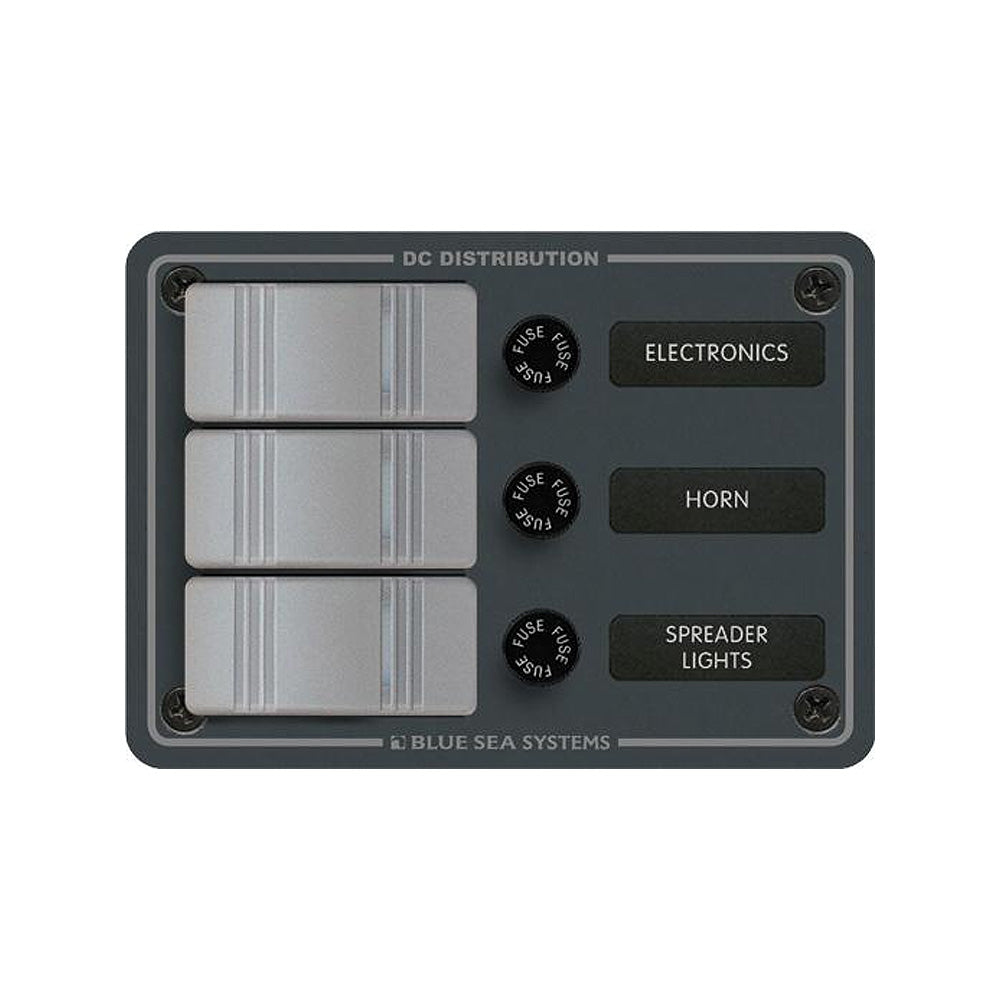

Blue Sea 8054 Slate Grey - 3 Position - Vertical

8054 Slate Grey - 3 Position - Vertical

Features:

• Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
• Designed for flybridge and open cockpit applications
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switches
• Watertight mounting gasket included
• Countersunk mounting holes throughout
• Two-part polyurethane slate gray finish
• Industry standard height and width
• Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
• Completely wired and ready to install

Specifications:

• Weatherproof: Water Resistant
• Positions: 3
• Nominal Voltage: 12v / 24v DC
• Panel Cumulative Rating: 45A
• Switch Rating: 20A @ 12v DC / 15A @ 24v DC
• Height: 3.75"
• Width: 5.25"
• Depth: 3"

Included:

• (3) 5021 Panel Mount AGC/MDL Fuse Holder
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (3) 8230 Contura Switch SPST Gray - OFF-ON

*NOTE: Waterproof panel labels are not backlit

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems Sw Pnl Contura with fuse gray 3 Sw 8054. These are designed by professional product experts from Blue Sea Systems and can be used with reliable and reliable products...
SKU: NVN-19045
MPN: 8054-BSS
UPC: 632085080549
