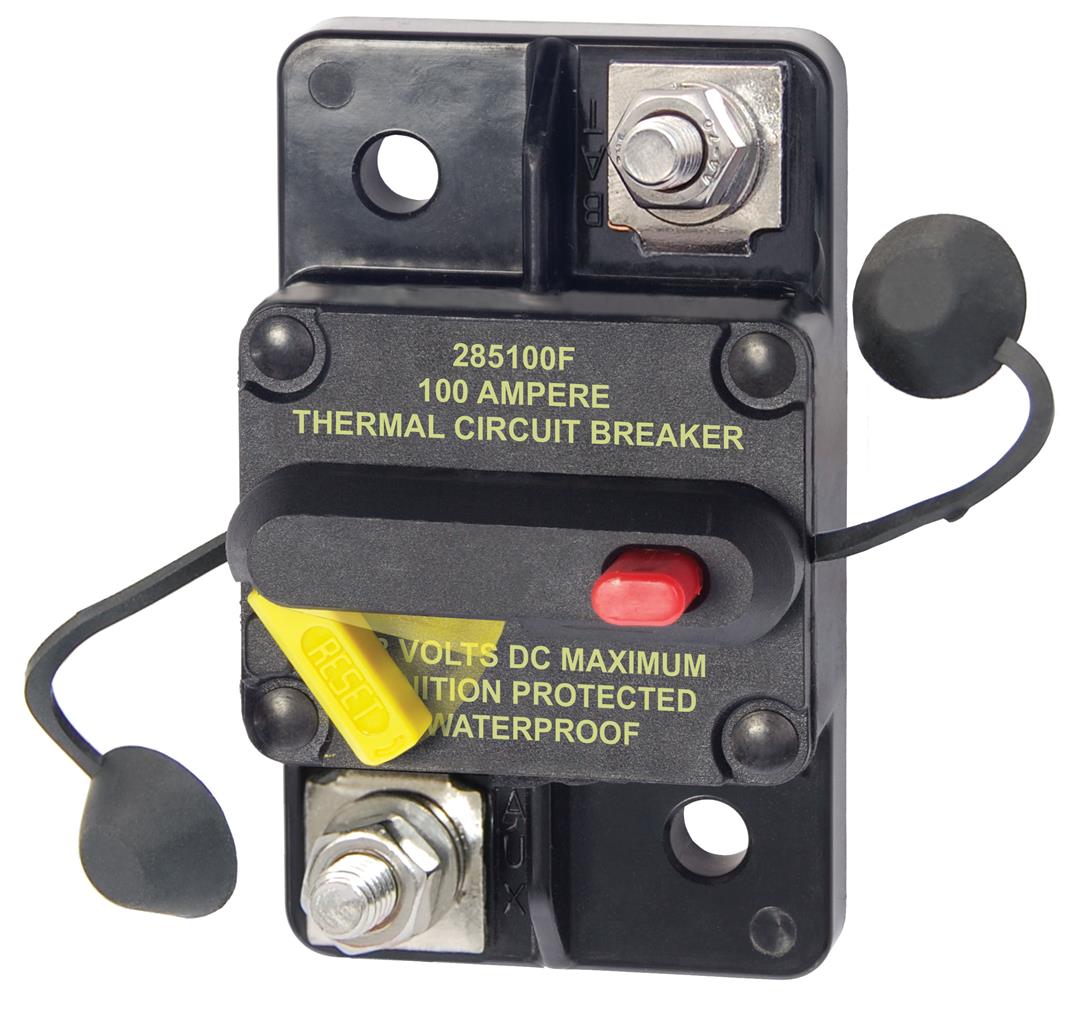

Blue Sea 7187BSS Circuit Breaker

Thermal circuit breakers provides medium duty circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required.

Blue Sea 7187BSS Attributes

• Ampere Rating: 100 Amp
• Voltage Rating: 48 Volt
• Reset Type: Manual And Switchable
• Terminal Connection: Stud
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7187BSS Features & Benefits

• Drop In Replacement For 185-Series Circuit Breakers
• Visible Reset Lever Shows Open Condition
• Ignition Protected - Safe For Installation Aboard Gasoline Powered Boats
• Meets SAE J1171 External Ignition Protection Requirements
• Weather Resistant
• Combines Switching And Circuit Breaker Function Into One Unit
• Trip Free
• No Supplier Warranty

"Provides medium duty circuit protection for 25 to 200 amp loads when switching and circuit protection are both required. \"Trip-free\" - cannot be held closed after trip. . Drop in replacement for 185 series circuit breakers. Maximum operating voltage is 48 volts DC. Meets SAE J1171 external ignition protection requirements. IP67-protected against immersion up to 1 meter for 30 minutes."
SKU: NVN-2002726
MPN: 7187-BSS
UPC: 632085071875
